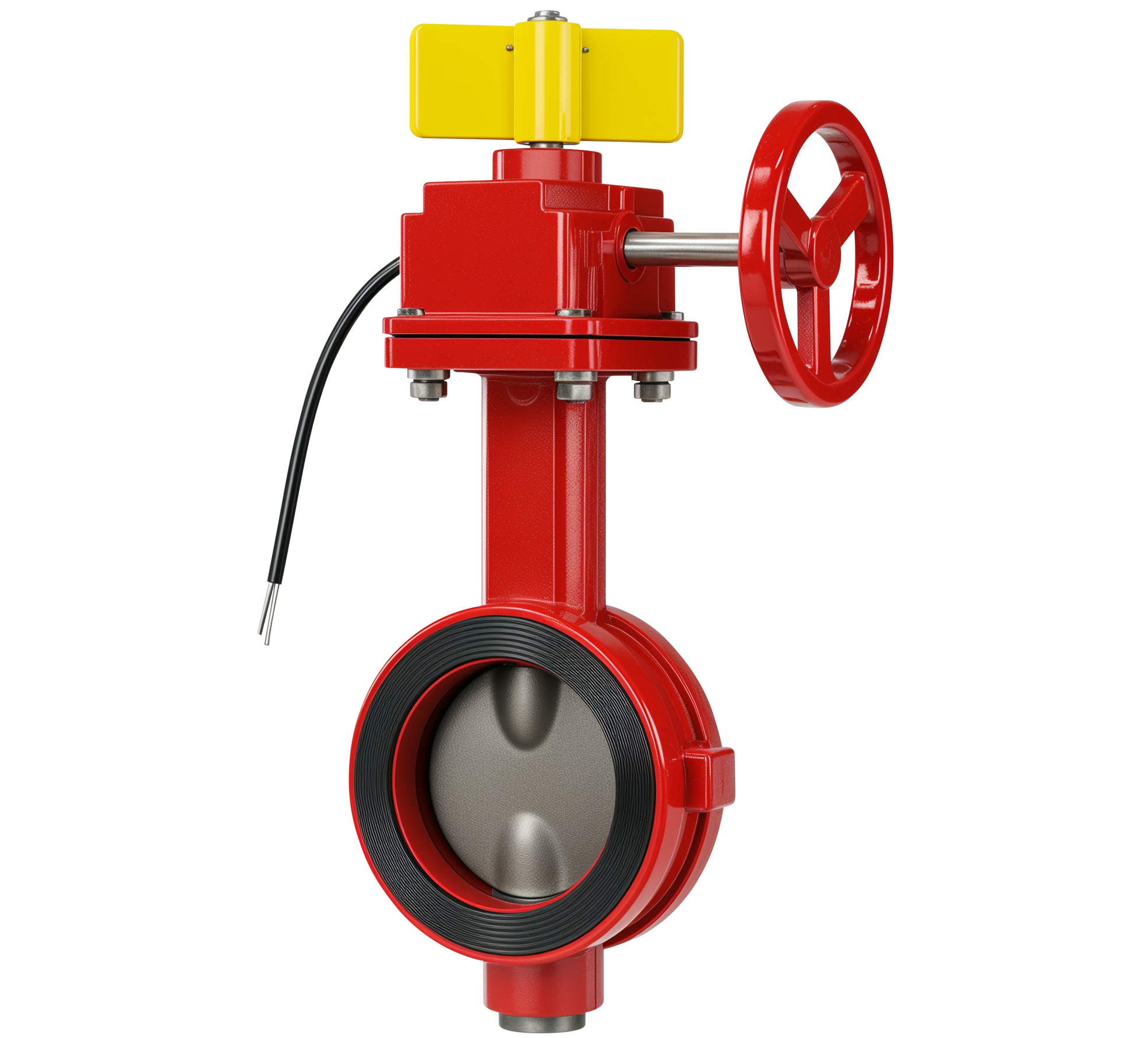

| Name | Material |
| Body | Ductile Iron ASTM A536 65-45-12 |
| Disc | Ductile Iron ASTM A536 65-45-12 + EPDM |
| Lower Shaft | Stainless Steel SS410 |
| Upper Shaft | Stainless Steel SS410 |
| Signal Gearbox | Ductile Iron ASTM A536 65-45-12 |
| O-Ring | EPDM |
| Bushing | Bronze ASTM B150M C63000 |
| Gland | Galvanized Carbon Steel Surface Passivation |
| Washer | Galvanized Carbon Steel Surface Passivation |
| Plug | Galvanized Carbon Steel Surface Passivation |
| Gear Box Fasteners | Galvanized Carbon Steel Surface Passivation |

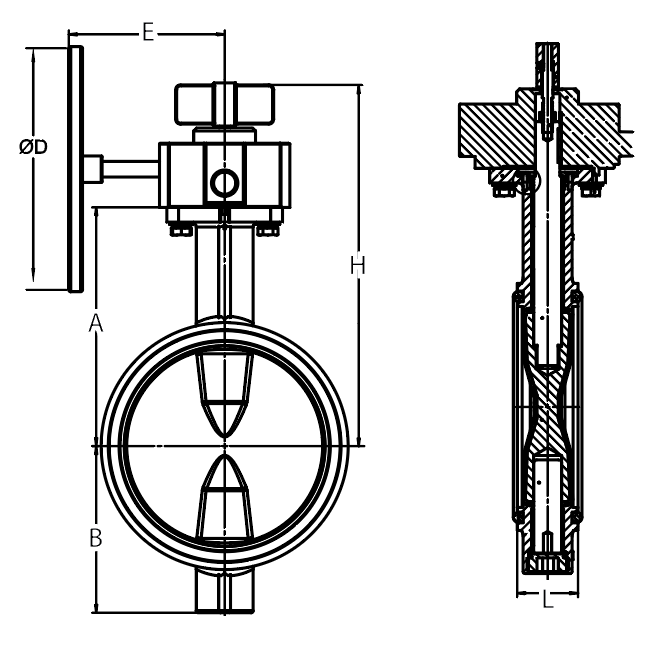

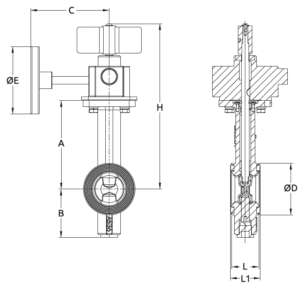

| Size | A | B | L | E | H | ØD |
|---|---|---|---|---|---|---|
| 2″ | 140.5 | 72 | 43 | 125 | 258.6 | 108 |
| 2.5″ | 152.5 | 78 | 46 | 125 | 270.6 | 108 |
| 3″ | 157.5 | 85 | 46 | 125 | 275.6 | 108 |
| 4″ | 176 | 105 | 52 | 125 | 294 | 108 |
| 5″ | 191 | 128 | 56 | 140 | 312 | 150 |
| 6″ | 202.5 | 140 | 56 | 140 | 322.6 | 150 |
| 8″ | 243.5 | 170 | 62 | 159 | 345.5 | 250 |
| 10″ | 273 | 205 | 68 | 159 | 401 | 250 |
| 12″ | 311 | 258 | 78 | 228 | 437 | 250 |
| Size | 2″/50 | 2.5″/65 | 3″/80 | 4″/100 | 5″/125 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| N.W. | 4.6 | 4.9 | 4.9 | 6.1 | 10.3 | 12.2 | 22.9 | 28.7 | 46.5 |
| Create Qty | 95 | 85 | 75 | 60 | 50 | 40 | 25 | 15 | 15 |
