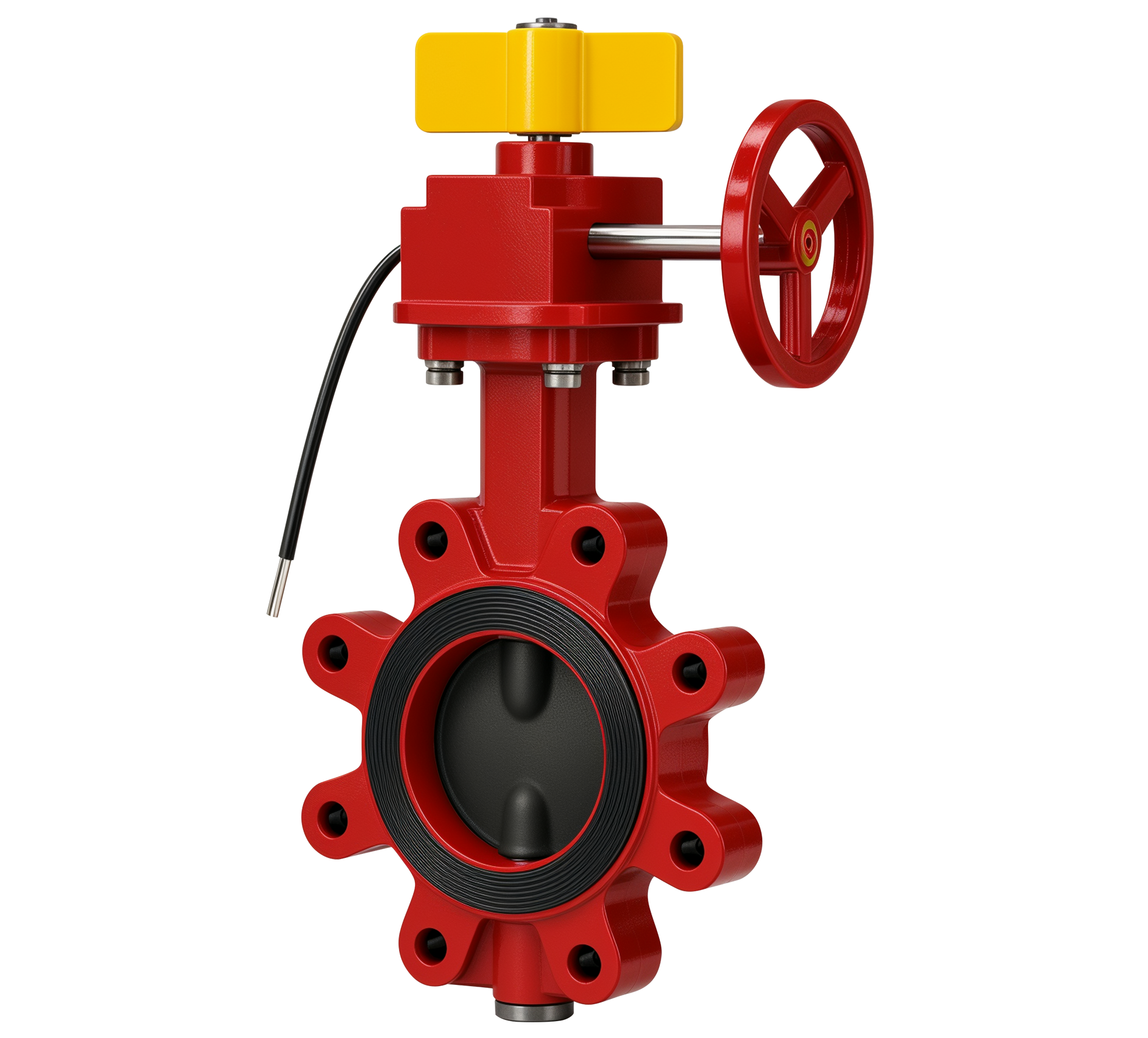

| Name | Material |
| Body | Ductile Iron ASTM A536 65-45-12 |
| Disc | Ductile Iron ASTM A536 65-45-12 + EPDM |
| Lower Shaft | Stainless Steel SS410 |
| Upper Shaft | Stainless Steel SS410 |
| Signal Gearbox | Ductile Iron ASTM A536 65-45-12 |
| O-Ring | EPDM |
| Bushing | Bronze ASTM B150M C63000 |
| Gland | Galvanized Carbon Steel Surface Passivation |
| Washer | Galvanized Carbon Steel Surface Passivation |
| Plug | Galvanized Carbon Steel Surface Passivation |
| Gear Box Fasteners | Galvanized Carbon Steel Surface Passivation |

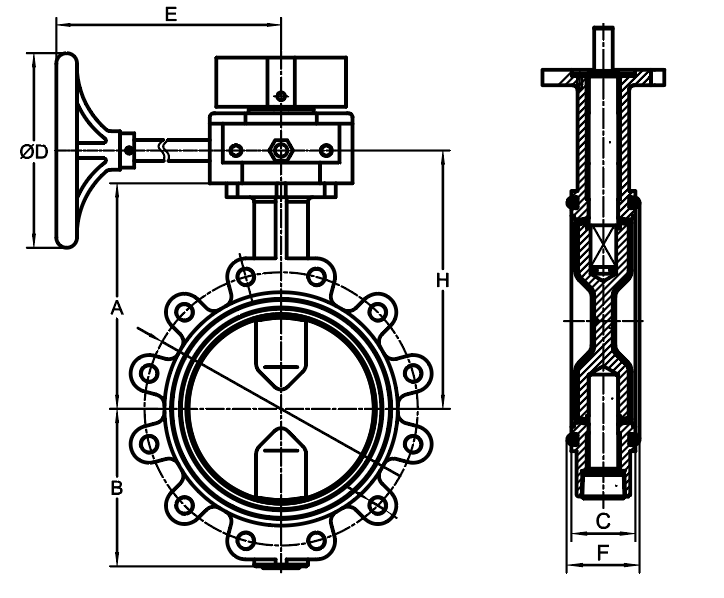

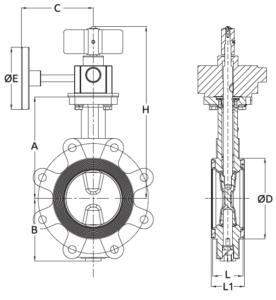

| Size | A | B | C | F | ØD | E | H |
|---|---|---|---|---|---|---|---|
| 2″ | 140.5 | 78 | 43 | 47.2 | 150 | 159 | 175.5 |
| 2.5″ | 152.5 | 78 | 46 | 50.2 | 150 | 159 | 187.5 |
| 3″ | 157.5 | 85 | 46 | 50.2 | 150 | 159 | 192.5 |
| 4″ | 176 | 105 | 52 | 58 | 150 | 159 | 211 |
| 5″ | 191 | 128 | 56 | 62 | 200 | 159 | 226 |
| 6″ | 202.5 | 140 | 56 | 62 | 200 | 159 | 237.5 |
| 8″ | 243.5 | 170 | 62 | 70 | 350 | 235 | 281 |
| 10″ | 273 | 205 | 68 | 76 | 350 | 235 | 310.5 |
| 12″ | 311 | 258 | 78 | 86 | 350 | 235 | 348.5 |
| Size | 2″/50 | 2.5″/65 | 3″/80 | 4″/100 | 5″/125 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| N.W. | 6.7 | 7.6 | 8.1 | 11.7 | 15.3 | 17.9 | 23.7 | 32.8 | 45.3 |
| Create Qty | 60 | 60 | 60 | 40 | 30 | 30 | 20 | 20 | 10 |
