Materials
| name | material |
|---|---|
| Body | Ductile Iron A536 65-45-12 |
| Clapper | Ductile Iron A536 65-45-12 |
| Seat | Bronze ASTM C83600 |
| Disc Sealing Ring | EPDM |
| Shaft | Stainless Steel AISI 304 |
| Pressing Plate | Stainless Steel AISI 304 |

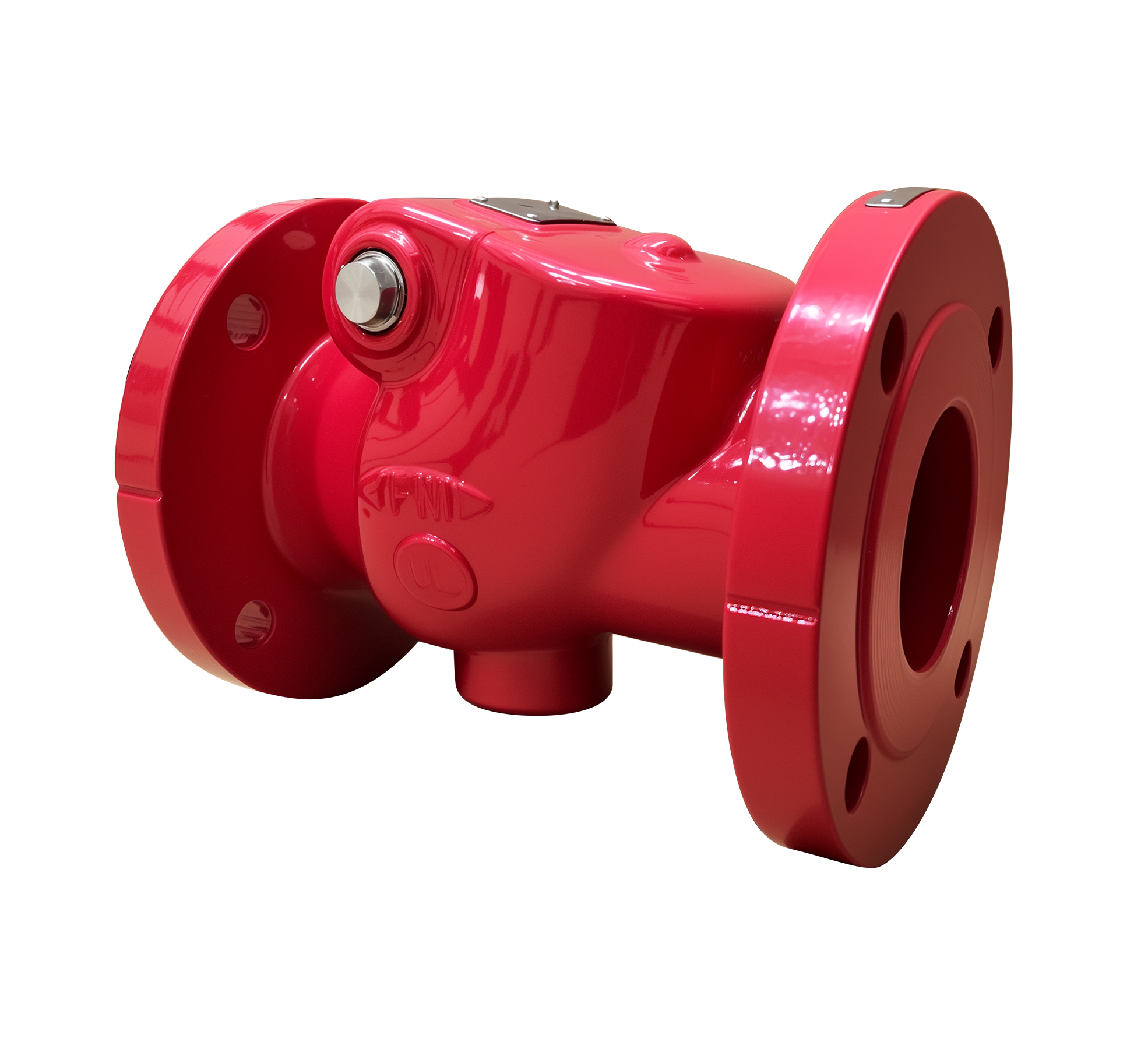

365PSI Fig No.: 5201-365-FLA
FEATURES & SPECIFICATIONS
Swing type.
Valve conforms to AWWA C508, clear waterway.
Fusion bonded epoxy coated RAL3002.
Flange drilled to ANSI B16.1 Class 125 / ANSI B16.42 Class 150 / ANSI B16.1 Class 250 / EN1092-2 PN16 / BS10 Table D / Table E.
Working pressure : 365psi.
Working temperature : 0°C … 80°C
UL Listed, FM Approved
| name | material |
|---|---|
| Body | Ductile Iron A536 65-45-12 |
| Clapper | Ductile Iron A536 65-45-12 |
| Seat | Bronze ASTM C83600 |
| Disc Sealing Ring | EPDM |
| Shaft | Stainless Steel AISI 304 |
| Pressing Plate | Stainless Steel AISI 304 |

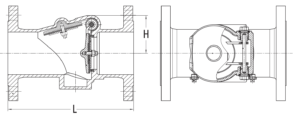

| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| L | 203 | 222 | 241 | 305 | 356 | 394 | 457 | 533 | 610 |
| H | 80 | 85 | 93 | 108 | 121 | 199 | 233 | 274 | 306 |
| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| Net Weight (Kg) | 12.00 | 17.50 | 22.00 | 34.00 | 58.00 | 67.30 | 120.00 | 174.00 | 246.00 |
| Create Qty | 30 | 20 | 20 | 12 | 8 | 6 | 6 | 2 | 2 |
