365PSI Fig No.: 5201-365-GGR
FEATURES & SPECIFICATIONS
Swing type.
Fusion bonded epoxy coated RAL3002.
Grooved ends to suit ANSI / AWWA and BS pipe size.
Working pressure : 365psi.
Working temperature : 0°C … 80°C
UL Listed, FM Approved

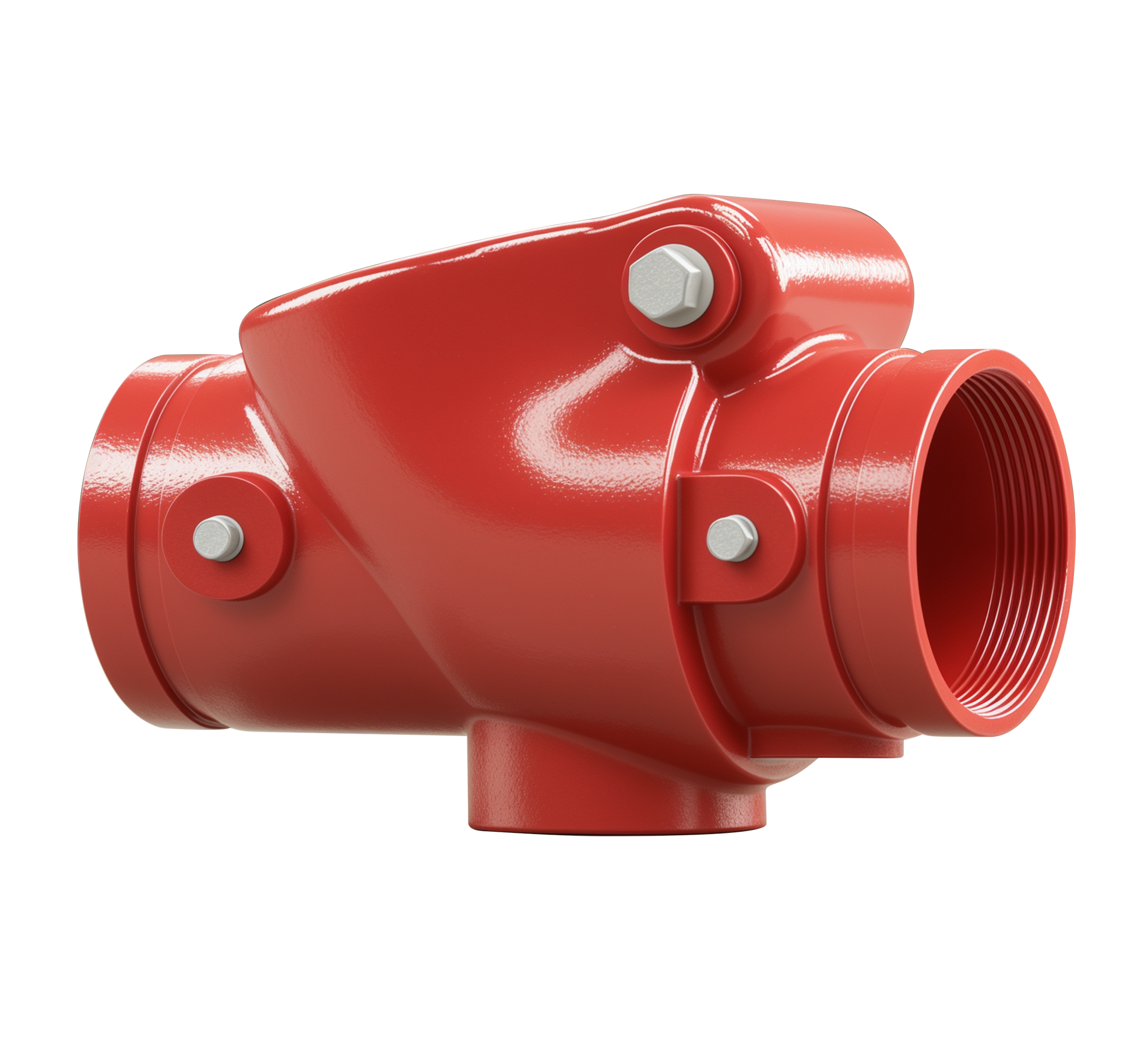

5201-365-GGR is a vertical installed non-return valve in a “Riser” arrangement. With trim unit, the check valve utilizes an electric flow switch and alarm bell instead of a water motor gong for fire notification. Valve body is the same as 5201-365-GG, easy to adapt on job field.
| Part | Specification |
|---|---|
| Body | Ductile Iron ASTM A536 65-45-12 |
| Clapper | Ductile Iron ASTM A536 65-45-12 |
| Seat | Bronze ASTM B62 C83600 |
| Disc Sealing Ring | EPDM |
| Shaft | Stainless Steel AISI 304 |
| Pressing Plate | Stainless Steel AISI 304 |

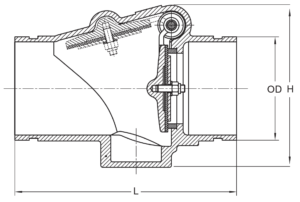

| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
|---|---|---|---|---|---|---|---|---|---|
| L | 169 | 203 | 213 | 245 | 267 | 292 | 356 | 432 | 495 |
| H | 141.79 | 152.25 | 167.5 | 190 | 215 | 252 | 371.6 | 436.1 | 490.6 |
| OD | 60.3 | 73/76.1 | 88.9 | 114.3 | 139.7/141.3 | 165.1/168.3 | 219.1 | 273 | 323.9 |
| Nominal Size | PT standard thread size | PT Optional thread size | |
|---|---|---|---|
| inch | mm | ||
| 2 | 50 | 1″ | 0.25″, 0.5”, 0.75″ |
| 2.5 | 65 | 1.25″ | 0.25″, 0.5”, 0.75″, 1 “ |
| 3 | 80 | 1.25″ | 0.25″, 0.5”, 0.75″, 1 “ |
| 4 | 100 | 2″ | 0.25″, 0.5”, 0.75″, 1 “, 1.25″ 1.5” |
| 5 | 125 | 2″ | 0.25″, 0.5”, 0.75″, 1″, 1.25″ 1.5″ |
| 6 | 150 | 2″ | 0.25″, 0.5”, 0.75″, 1″, 1.25″ 1.5″ |
| 8 | 200 | 2″ | 0.25″, 0.5”, 0.75″, 1″, 1.25″ 1.5″ |
| 10 | 250 | 2″ | 0.25″, 0.5”, 0.75″, 1″, 1.25″ 1.5″ |
| 12 | 300 | 2″ | 0.25″, 0.5”, 0.75″, 1″, 1.25″ 1.5″ |
Note: Pipe tapered thread hole size has to be specified by ordering. If non-standard thread, please contact Fivalco or its local distributor.
| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| Net Weight (Kg) | 3.5 | 4.5 | 6 | 9.5 | 18 | 19.5 | 33 | 53 | 94 |
| Create Qty | 100 | 100 | 95 | 50 | 32 | 32 | 6 | 6 | 2 |
