Materials
| Name | Material |
|---|---|
| Body | Ductile Iron A536 65-45-12 |
| Cover | Ductile Iron A536 65-45-12 |
| Level | Stainless Steel AISI 304 |
| Seat Ring | Stainless Steel |
| Float | Stainless Steel AISI 304 |
| Float Arm | Stainless Steel AISI 304 |
| Orifice Button | Viton |

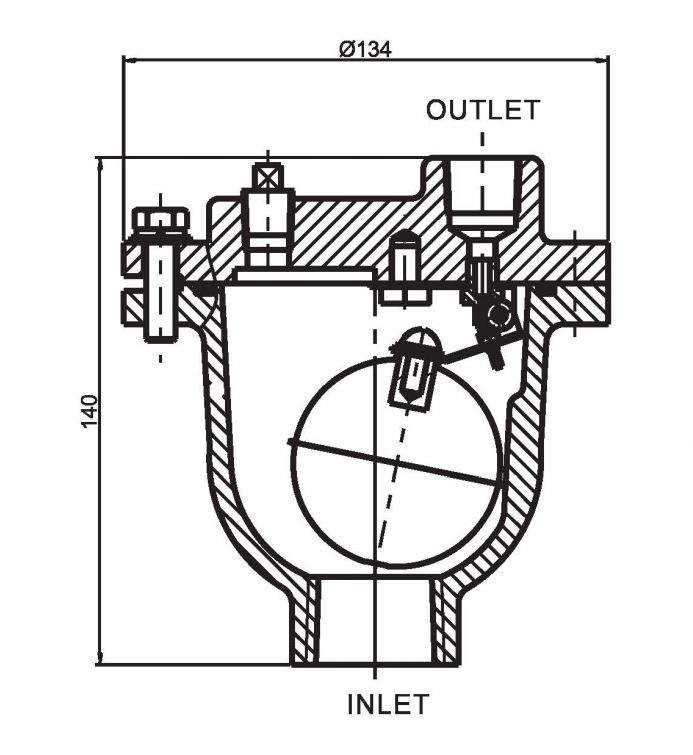

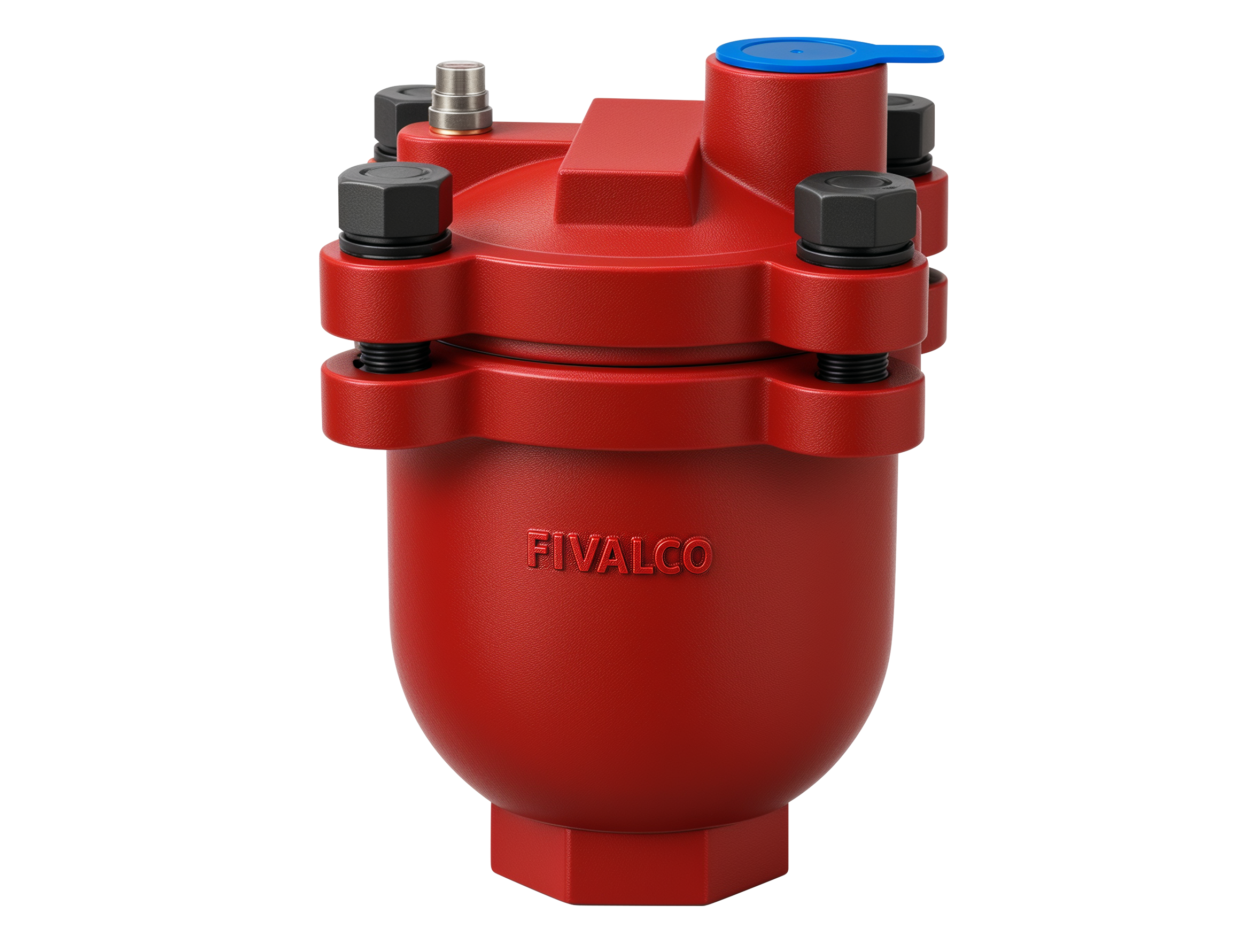

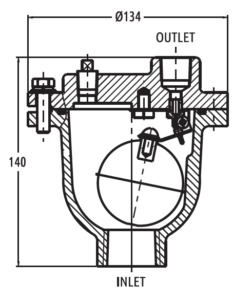

200PSI Fig No.: 9702
FEATURES
Threaded ends : NPT or BSPT
Working pressure : 200psi
Working temperature : -10°C … 120°C
FM Approved
| Name | Material |
|---|---|
| Body | Ductile Iron A536 65-45-12 |
| Cover | Ductile Iron A536 65-45-12 |
| Level | Stainless Steel AISI 304 |
| Seat Ring | Stainless Steel |
| Float | Stainless Steel AISI 304 |
| Float Arm | Stainless Steel AISI 304 |
| Orifice Button | Viton |
| Size | Female Threaded |
| 1/2″ | 1/2″ BSPT or NPT |
| 3/4″ | 3/4″ BSPT or NPT |
| 1″ | 1″ BSPT or NPT |
| Size | Net Weight (Kg) | Crate Quantity |
| 1/2″ / DN15 | 2.9 | 300 |
| 3/4″ / DN20 | 2.9 | 300 |
| 1″ / DN25 | 2.9 | 300 |
