Materials
| Name | Material |
|---|---|
| Body | Ductile Iron A536 65-45-12 |
| Disc | Stainless Steel A351 CF8 |
| Stem | Stainless Steel AISI 416 |
| Seat Ring | EPDM |
| Spring | Stainless Steel AISI 304 |
Note: Lifting ring for DN200 and above.

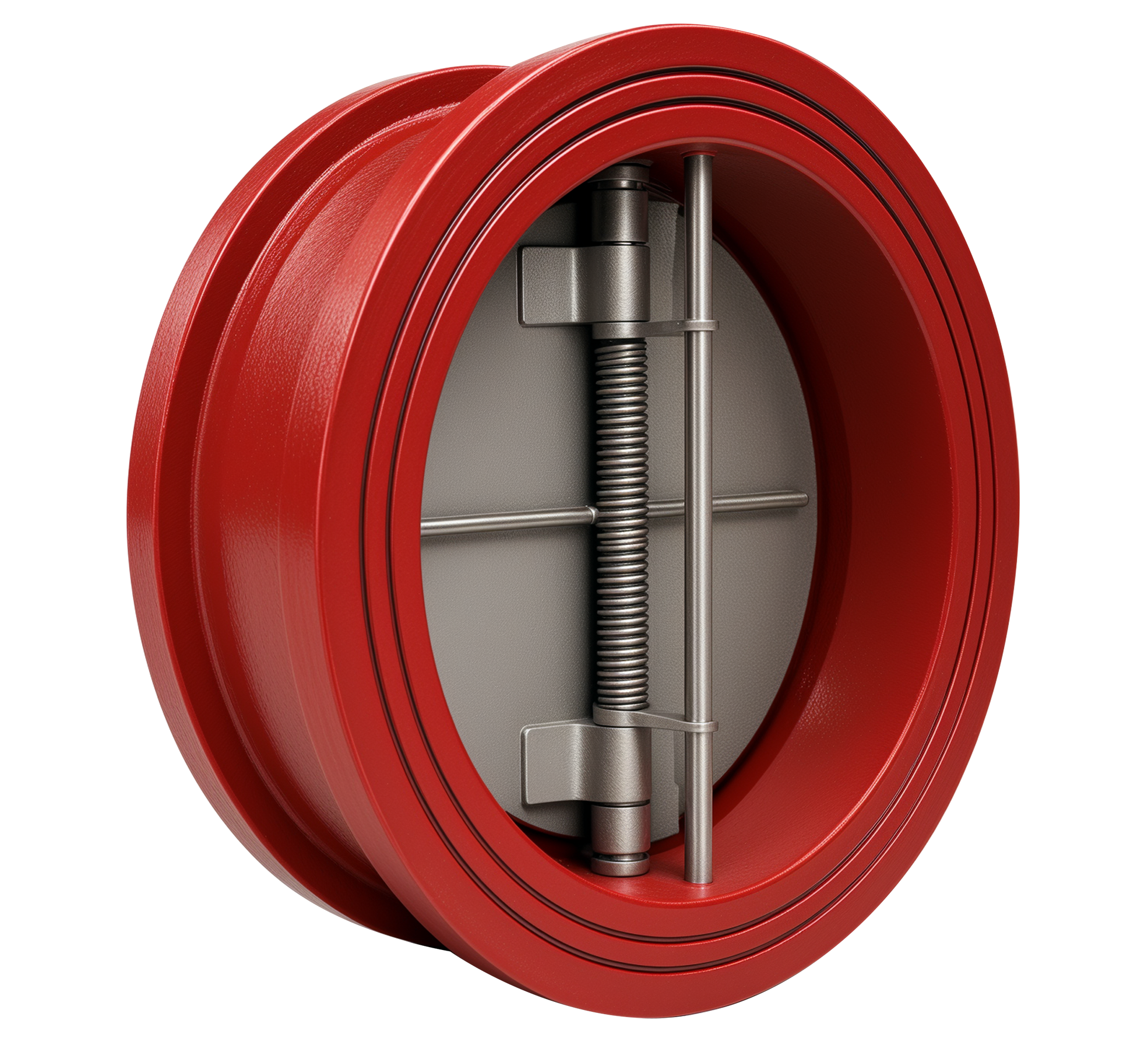

300PSI Fig No.: 5301-300-W
FEATURES & SPECIFICATIONS
Spring loaded double door.
Rubber seat for non-slam effect.
Fusion bonded epoxy coated RAL3002.
Valve conforms to API 594.
Wafer connection to ANSI Class 125 / ANSI Class 150 / EN 1092-2 PN16 / BS10 Table D / Table E.
Working pressure : 300psi
Working temperature : -20°C … 110°C
UL Listed, FM Approved
| Name | Material |
|---|---|
| Body | Ductile Iron A536 65-45-12 |
| Disc | Stainless Steel A351 CF8 |
| Stem | Stainless Steel AISI 416 |
| Seat Ring | EPDM |
| Spring | Stainless Steel AISI 304 |
Note: Lifting ring for DN200 and above.

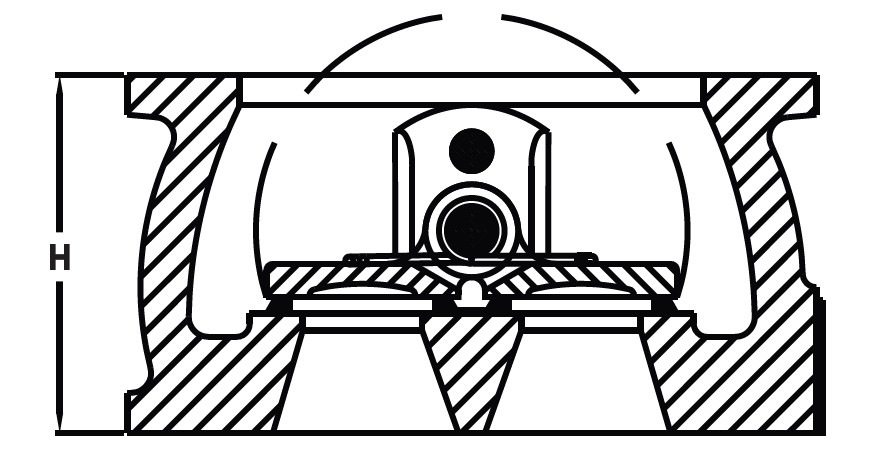

| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| H | 54 | 60 | 67 | 67 | 83 | 95 | 127 | 140 | 181 |
| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| Net Weight (Kg) | 1.80 | 2.90 | 4.80 | 5.40 | 8.10 | 12.00 | 19.20 | 33.20 | 52.90 |
| Create Qty | 1296 | 686 | 539 | 396 | 250 | 168 | 84 | 54 | 28 |
