Materials
| Name | Material |
|---|---|
| Body | Bronze C83600 |
| Disc | Stainless Steel AISl 304 |
| Handwheel | WCB |
| Seat | Viton |
| Indicator | Powder Metal |
| Housing | Forged Brass |

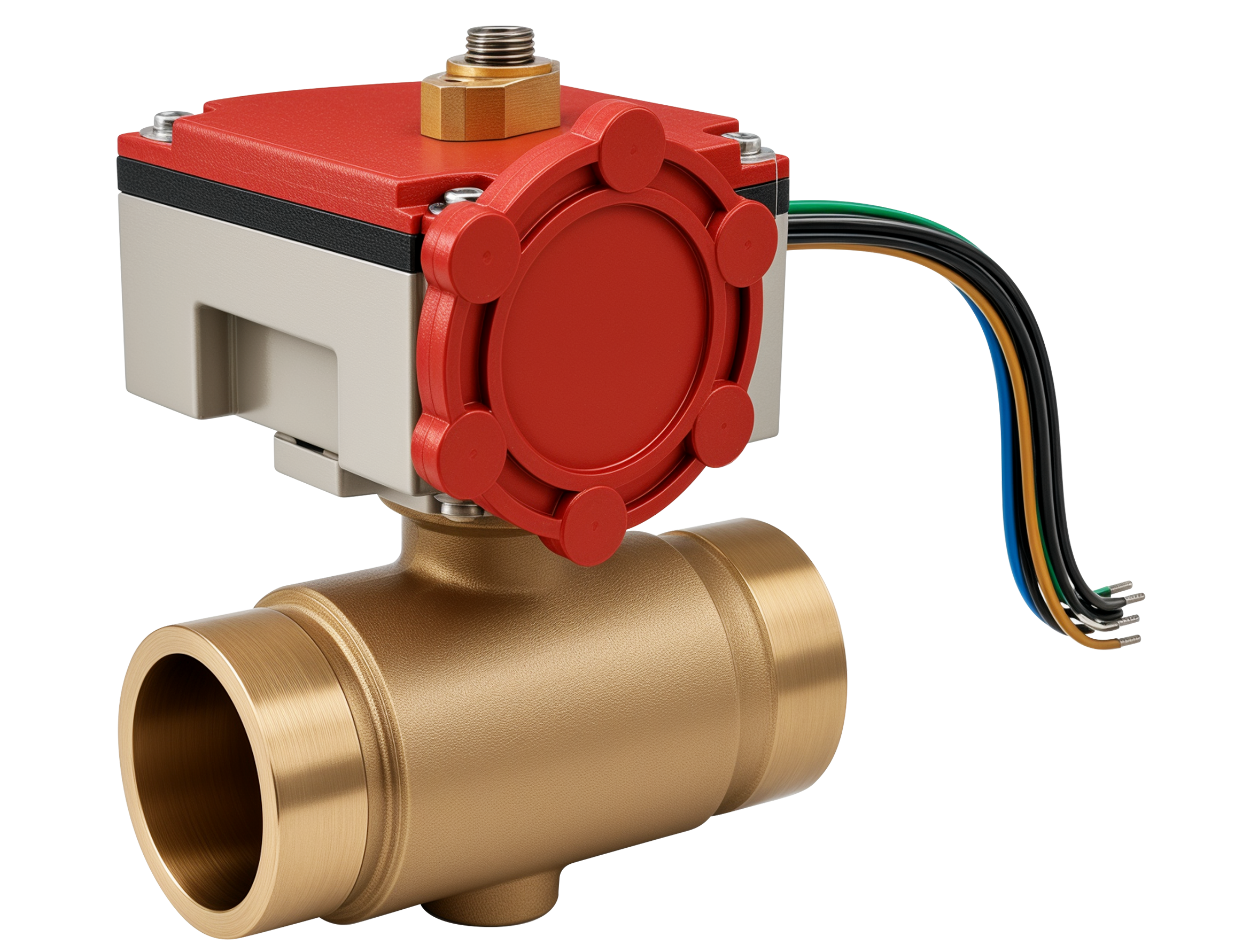

300PSI Fig No.: BBG-300
FEATURES & SPECIFICATIONS
Factory installed UL listed double tamper switches.
Valve approved for indoor and outdoor use.
Grooved ends to suit BS or ANSI pipe size.
Working pressure : 300psi.
Max. Test pressure : 600psi.
Max. working temperature : 250°F (120°C)
UL Listed, FM Approved
| Name | Material |
|---|---|
| Body | Bronze C83600 |
| Disc | Stainless Steel AISl 304 |
| Handwheel | WCB |
| Seat | Viton |
| Indicator | Powder Metal |
| Housing | Forged Brass |

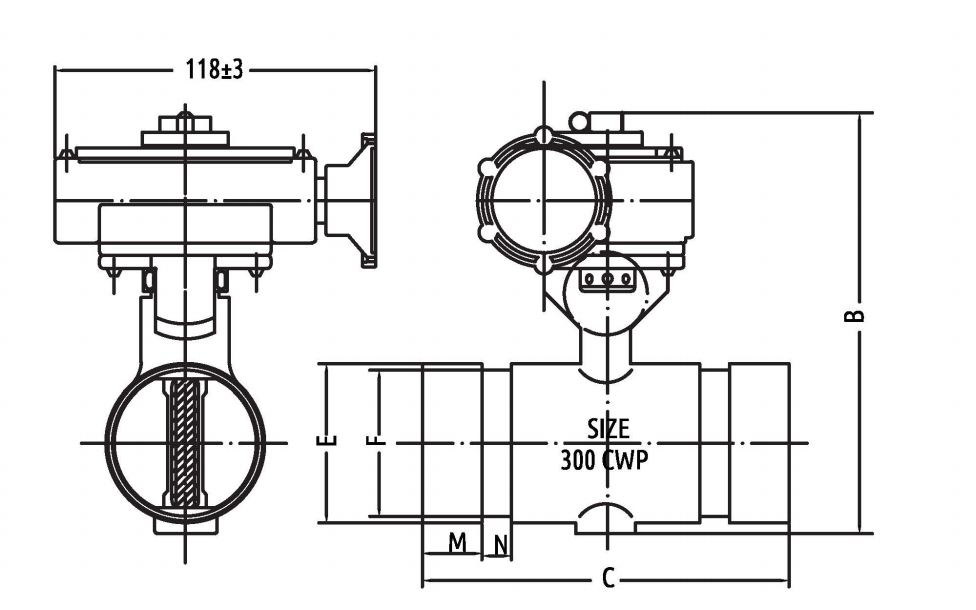

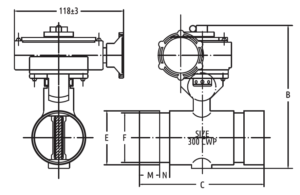

| Size | 1.25″ / DN32 | 1.5″ / DN40 | 2″ / DN50 | 2.5″ / DN65 |
| B | 138.9 | 145.9 | 159 | 175.5 |
| C | 98 | 102 | 104 | 114 |
| ØE | 42.4 | 48.3 | 60.3 | 73 |
| ØF | 38.99 | 45.09 | 57.15 | 69.09 |
| M | 15.88 | 15.88 | 15.88 | 15.88 |
| N | 7.95 | 7.95 | 7.95 | 7.95 |
| Size | 1.25″ / DN32 | 1.5″ / DN40 | 2″ / DN50 | 2.5″ / DN65 |
| Net Weight (Kg) | 1.80 | 1.87 | 2.17 | 2.80 |
| Create Qty | 6 | 6 | 6 | 6 |
