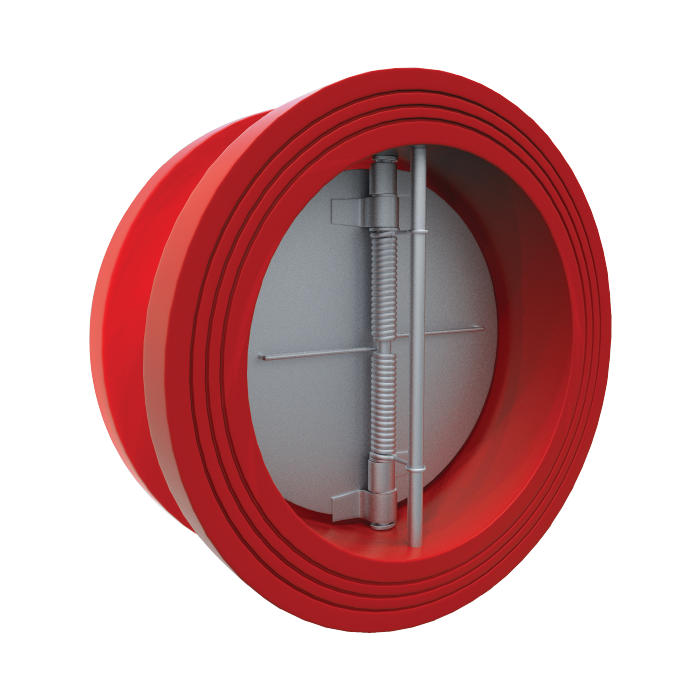

5301-300-W Double Door Check Valve Wafer Type

300PSI Fig No.: 5301-300-W

FEATURES & SPECIFICATIONS

Valve Standard:
Conforms to API 594
Working Pressure:
21 BARS / 300 PSI
Temperature: from -20°C to 110°C
Fusion bonded epoxy coated RAL3002
Wafer Connections:
ANSI Class 125/ANSI Class 150/EN 1092-2 PN16/BS10 Table D/Table E

FM Approved, UL & ULC Listed.

Categories: Check Valves, Fire Protection Products

Description

Material Specification

name	material
Body	Ductile Iron A536 65-45-12
Disc	Stainless Steel A351 CF8
Stem	Stainless Steel AISI 416
Seat Ring	EPDM
Spring	Stainless Steel AISI 304

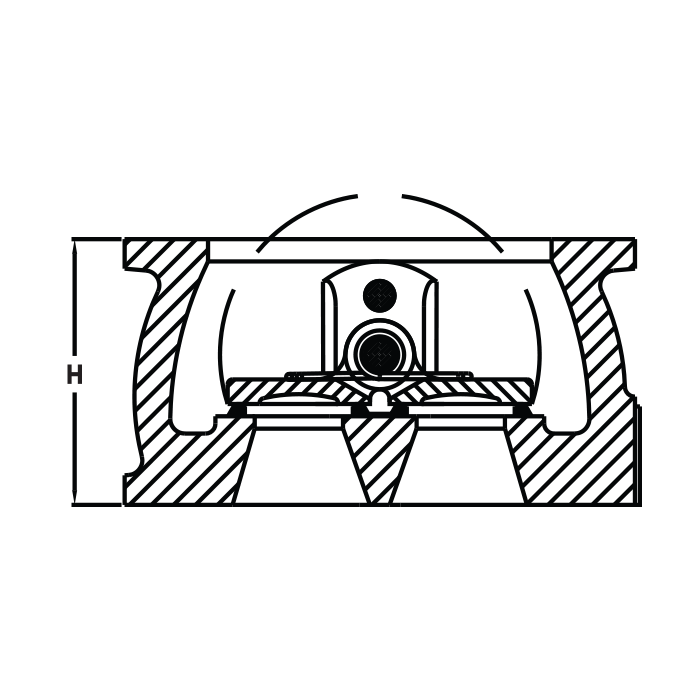

DIMENSIONS (inch/mm)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
H	2.13/54	2.36/60	2.64/67	2.64/67	3.27/83	3.74/95	5/127	5.51/140	7.13/181

Net Weight (kg) & Crate qty (pcs)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
N.W.	1.80	2.90	4.80	5.40	8.10	12.00	19.20	33.20	52.90
Create Qty	1296	686	539	396	250	168	84	54	28
