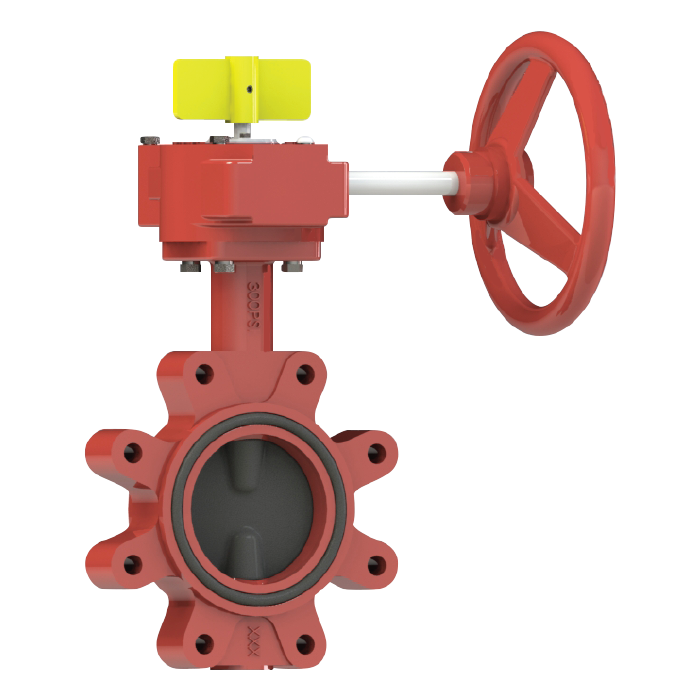

FPBG-300L Butterfly Valve Lugged Type

300PSI Fig No.: FPBG-300L

FEATURES & SPECIFICATIONS

Valve Standards:
Conforms to MSS SP-67/ BS EN593: 2009
Design and test standard conforms to FM1112 and UL1091
Fusion bonded epoxy coated RAL3002
Fitted with visual indicator and supervisory switch
EPDM encapsulated disc
Valve suitable for indoor and outdoor installation
Lugged connection to ANSI Class 150/BS 4504 PN16/EN 1092-2 PN16
Working pressure : 300psi – Non Shock Coldwater
Max. test pressure : 600psi
Working temperature : -10°C … 120°C

Categories: Butterfly Valves, Fire Protection Products

Description

Material Specification

Name	Material
Body	Ductile Iron ASTM A536 65-45-12
Disc	Ductile Iron ASTM A536 65-45-12 + EPDM
Lower Shaft	Stainless Steel SS410
Upper Shaft	Stainless Steel SS410
Signal Gearbox	Ductile Iron ASTM A536 65-45-12
O-Ring	EPDM
Bushing	Bronze ASTM B150M C63000
Gland	Galvanized Carbon Steel Surface Passivation
Washer	Galvanized Carbon Steel Surface Passivation
Plug	Galvanized Carbon Steel Surface Passivation
Gear Box Fasteners	Galvanized Carbon Steel Surface Passivation

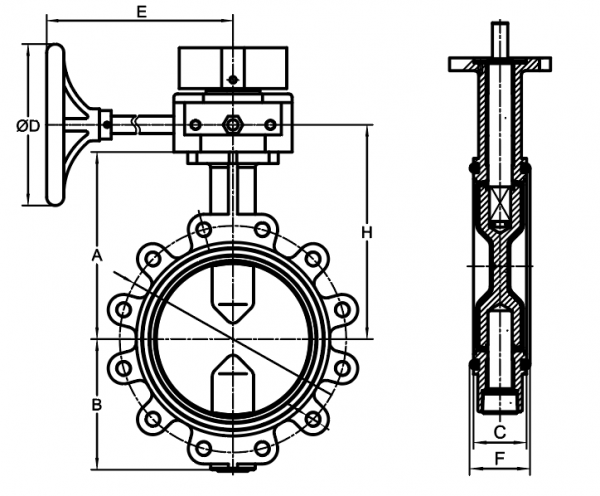

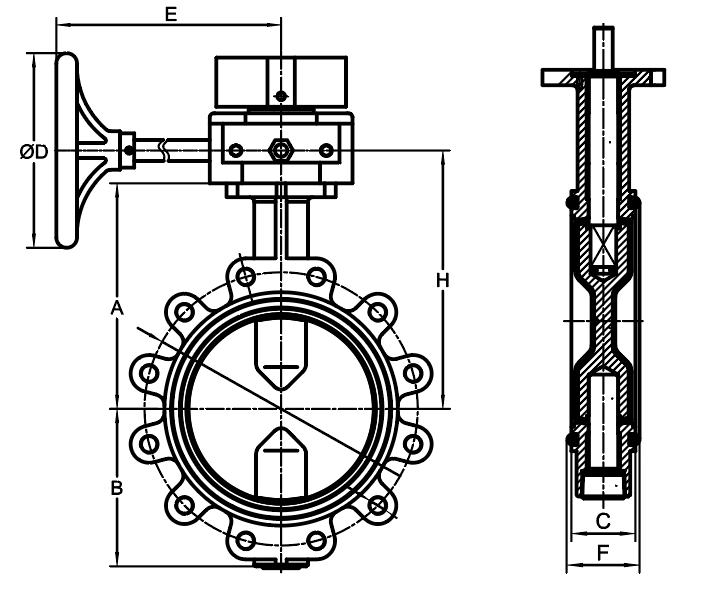

DIMENSIONS (inch/mm)

Size	A	B	C	F	ØD	E	H
2″	140.5	78	43	47.2	150	159	175.5
2.5″	152.5	78	46	50.2	150	159	187.5
3″	157.5	85	46	50.2	150	159	192.5
4″	176	105	52	58	150	159	211
5″	191	128	56	62	200	159	226
6″	202.5	140	56	62	200	159	237.5
8″	243.5	170	62	70	350	235	281
10″	273	205	68	76	350	235	310.5
12″	311	258	78	86	350	235	348.5

Net Weight (kg) & Crate qty (pcs)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
N.W.	6.7	7.6	8.1	11.7	15.3	17.9	23.7	32.8	45.3
Create Qty	60	60	60	40	30	30	20	20	10
