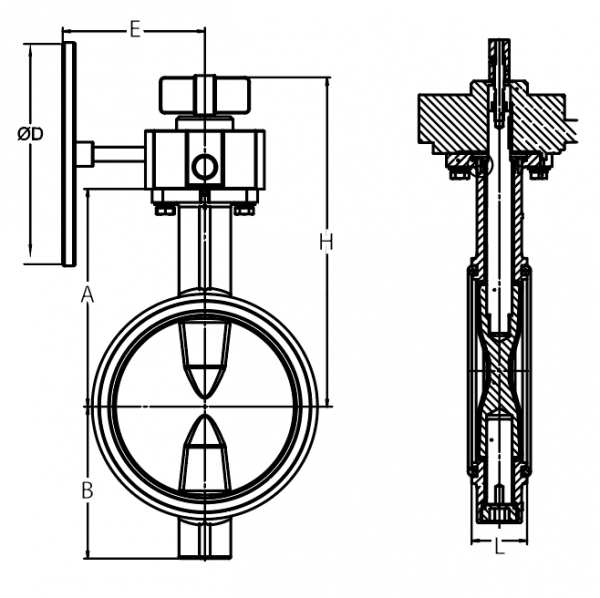

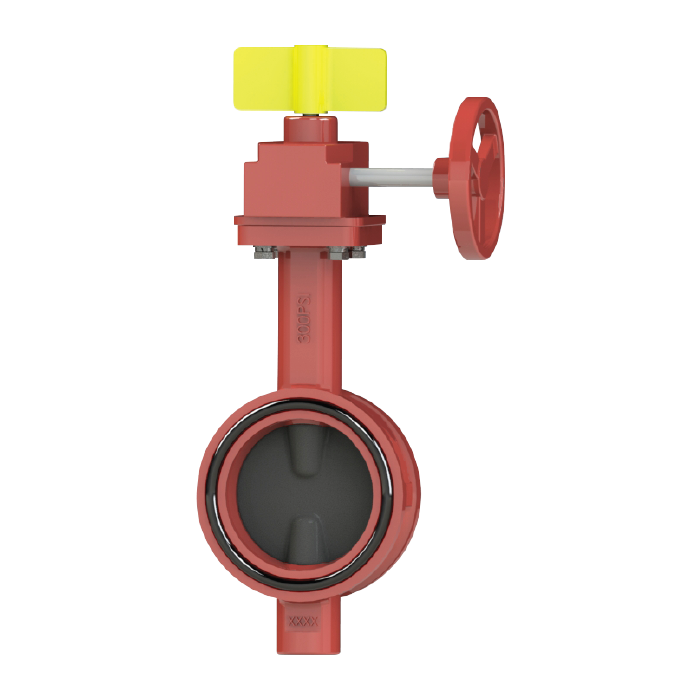

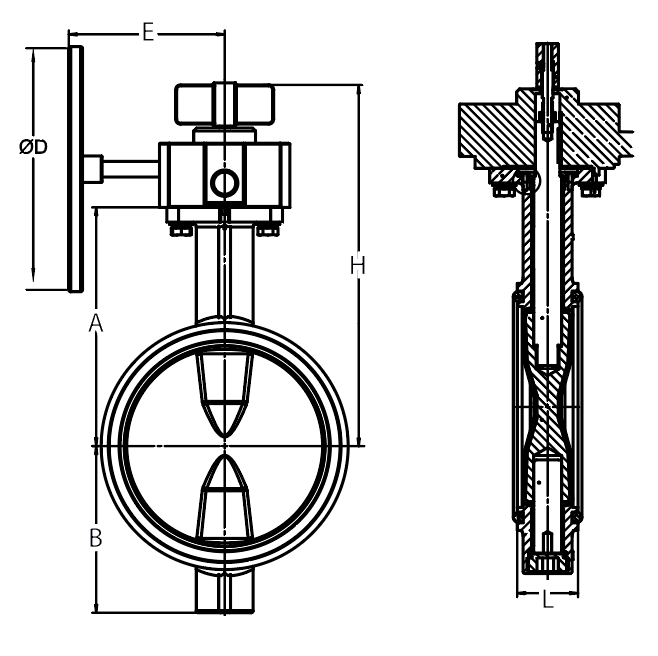

FPBG-300W Butterfly Valve Wafer Type

Valve Standards:
Conforms to MSS SP-67/ BS EN593: 2009
Design and test standard conforms to FM1112 and UL1091
Fusion bonded epoxy coated RAL3002

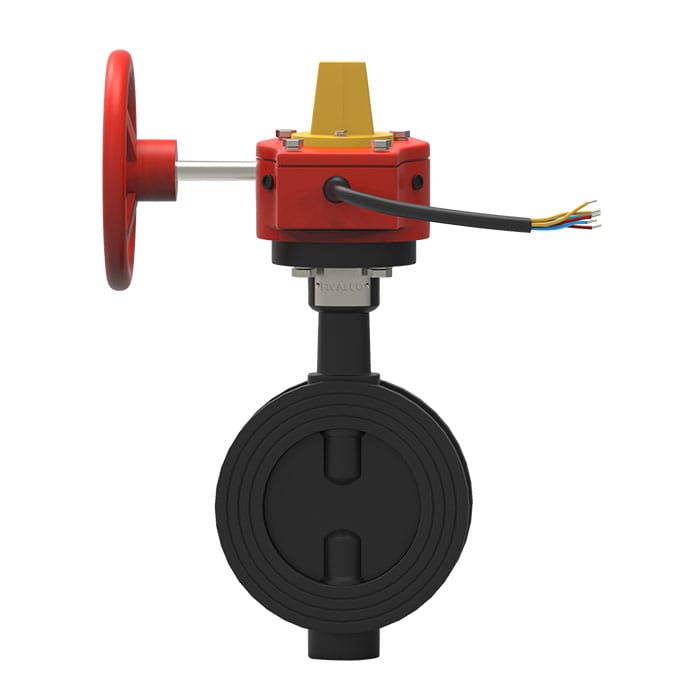

Fitted with visual indicator and supervisory switch
EPDM encapsulated disc
Valve suitable for indoor and outdoor installation
Universal wafer connection suitable for ANSI Class 150 / BS 4504 PN16 / EN1092-2 PN16
Working pressure : 300psi – Non Shock Coldwater
Max. test pressure : 600psi
Working temperature : -10°C … 120°C

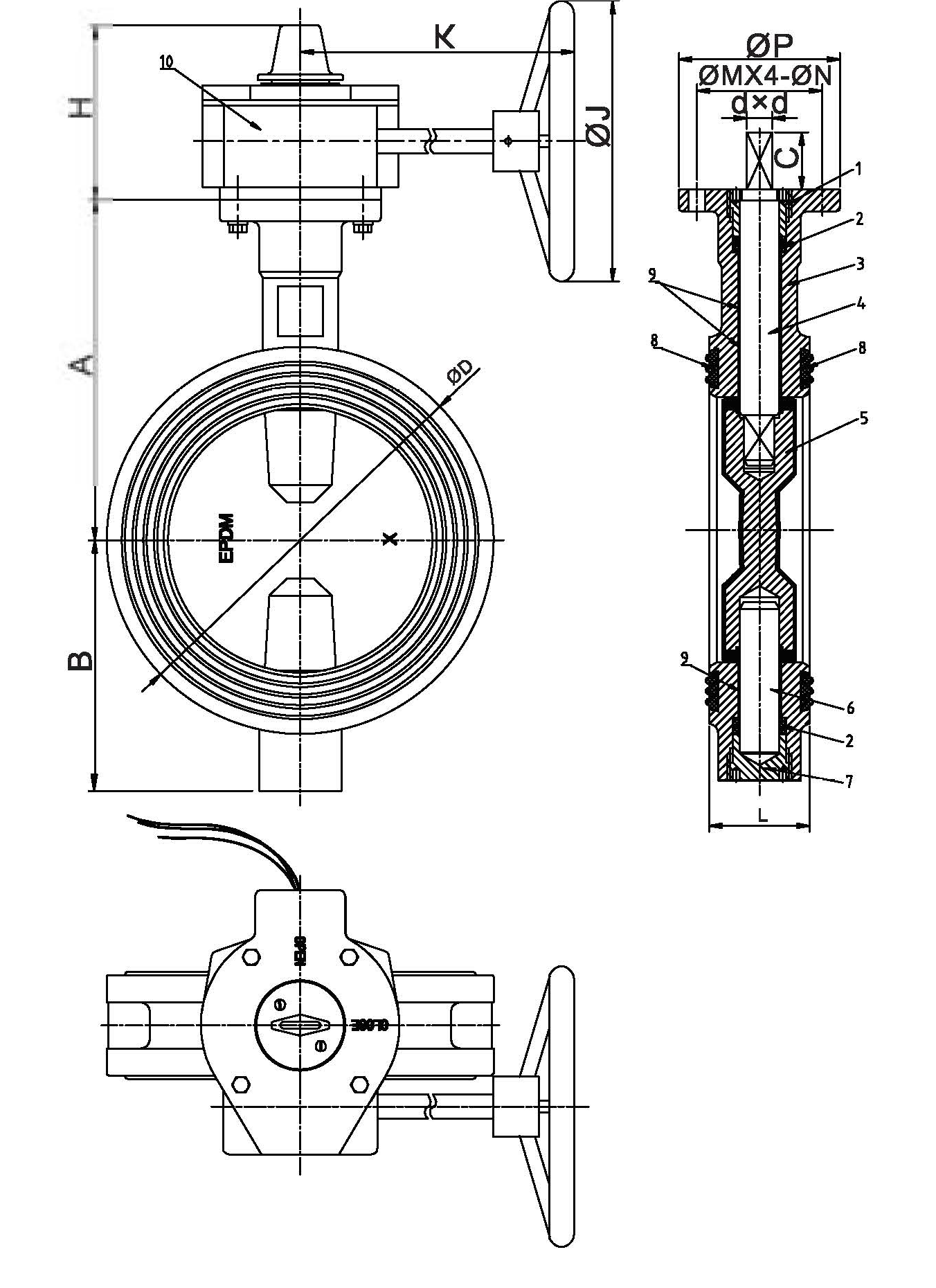

Name	Material
Body	Ductile Iron ASTM A536 65-45-12
Disc	Ductile Iron ASTM A536 65-45-12 + EPDM
Lower Shaft	Stainless Steel SS410
Upper Shaft	Stainless Steel SS410
Signal Gearbox	Ductile Iron ASTM A536 65-45-12
O-Ring	EPDM
Bushing	Bronze ASTM B150M C63000
Gland	Galvanized Carbon Steel Surface Passivation
Washer	Galvanized Carbon Steel Surface Passivation
Plug	Galvanized Carbon Steel Surface Passivation
Gear Box Fasteners	Galvanized Carbon Steel Surface Passivation
