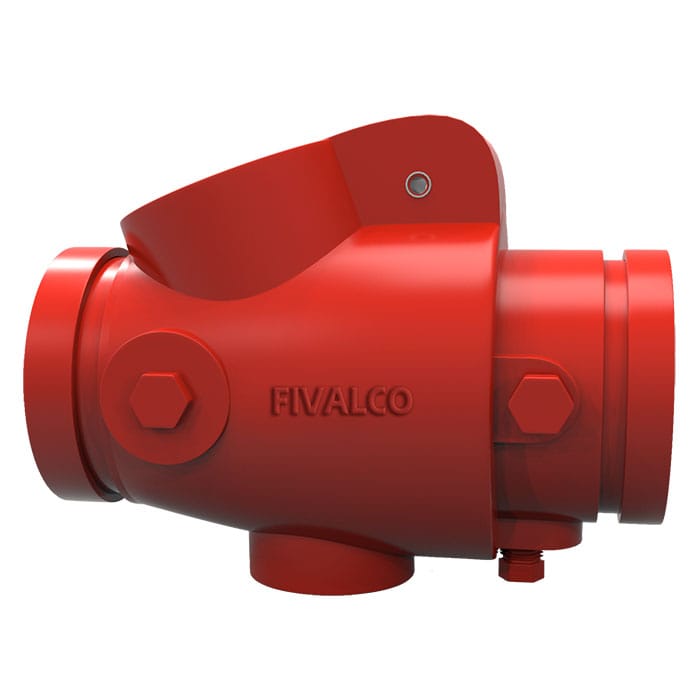

5201-365-GGP Swing Check Valve Grooved Ends Riser

Swing type
Fusion bonded epoxy coated RAL3002
Grooved ends to suit ANSI/AWWA and BS Pipe size
25 BARS / 365PSI
Temperature: from 0°C to 80°C
Description
5201-365-GGP is a vertical installed non-return valve in a “Riser” arrangement. With trim unit, the check valve utilizes an electric flow switch and alarm bell instead of a water motor gong for fire notification. Valve body is the same as 5201-365-GGI, easy to adapt on job field.

Nominal Size		OD	PT standard thread size	PT* Optional thread size
inch	mm	mm
2	50	60.3	1″	0.25″, 0.5”, 0.75″
2.5	65	73.0/76.1	1.25″	0.25″, 0.5”, 0.75″, 1 “
3	80	88.9	1.25″	0.25″, 0.5”, 0.75″, 1 “
4	100	114.3	2″	0.25″, 0.5”, 0.75″, 1 “, 1.25″ 1.5”
5	125	139.7/141.3	2″	0.25″, 0.5”, 0.75″, 1″, 1.25″ 1.5″
6	150	165.1/168.3	2″	0.25″, 0.5”, 0.75″, 1″, 1.25″ 1.5″
8	200	219.1	2″	0.25″, 0.5”, 0.75″, 1″, 1.25″ 1.5″
10	250	273	2″	0.25″, 0.5”, 0.75″, 1″, 1.25″ 1.5″
12	300	323.9	2″	0.25″, 0.5”, 0.75″, 1″, 1.25″ 1.5″
