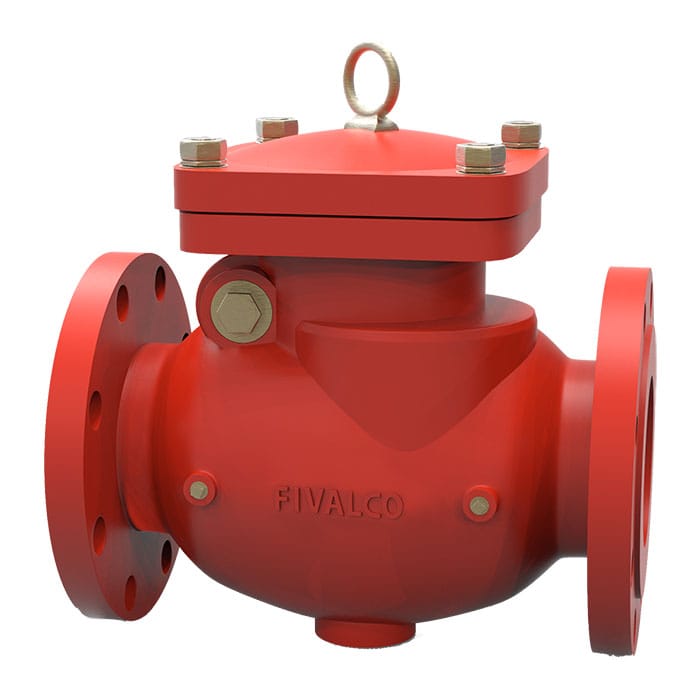

5201-LI-300-FLA Swing Check Valve Flanged Ends

300PSI Fig No.: 5201-Ll-300-FLA


  • Valve Standard:
    Conforms to AWWA C508, Clear waterway
  • Working Pressure:
    21 BARS / 300 PSI
    200PSI for DN500/600
    Temperature: from -10°C to 110°C
    Fusion bonded epoxy coated RAL3002
  • Flanged Ends:
    ANSI B16.1 Class 125/ANSI B16.5 Class 150
    EN1092-2 PN16
    BS10 TableD /TableE

FM Approved, UL & ULC Listed.
