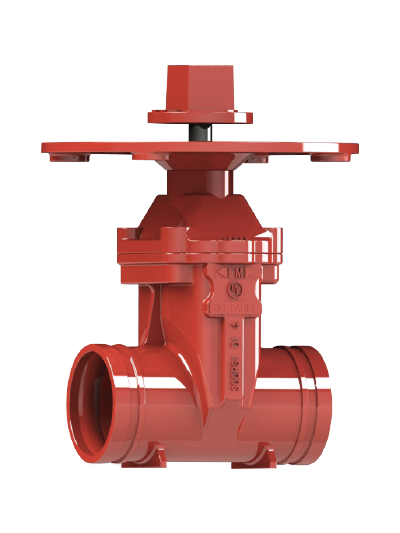

Material Specification
| Name | Material |
|---|---|
| Body | Ductile Iron ASTM A536 65-45-12 |
| Wedge Disc | Ductile Iron ASTM A536 65-45-12 + EPDM |
| Disc Nut | Bronze ASTM B62 |
| Stem | Stainless Steel AISI 304 |
| Gasket | EPDM |
| Bonnet | Ductile Iron ASTM A536 65-45-12 |
| Thrust Collar | Bronze ASTM B62 |
| Gland | Ductile Iron ASTM A536 65-45-12 |
| Wrench Nut | Ductile Iron ASTM A536 65-45-12 |
| Post Plate | Ductile Iron ASTM A536 65-45-12 |

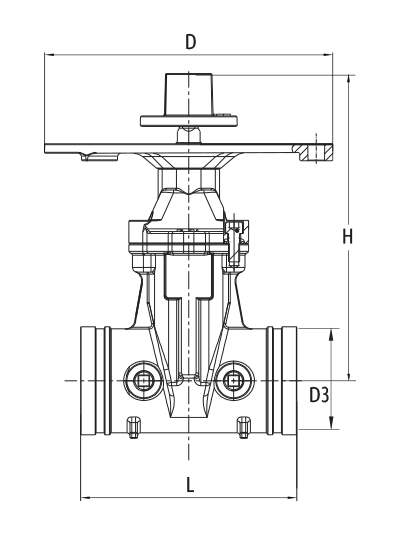

DIMENSIONS (inch/mm)
| Size | 2″/50 | 2.5″/65 | 3″/80 | 4″/100 | 5″/125 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| L | 7.00/178 | 7.5/191 | 8.00/203 | 9.00/229 | 10.00/254 | 10.50/267 | 11.50/292 | 13.00/330 | 14.00/356 |
| H | 10.35/263 | 10.35/263 | 11.53/293 | 12.83/326 | 16.53/420 | 16.53/420 | 19.92/506 | 24.01/610 | 27.99/711 |
| D | 12.01/305 | 12.01/305 | 12.01/305 | 12.01/305 | 12.01/305 | 12.01/305 | 12.01/305 | 12.01/305 | 12.01/305 |
| D3 | 2.37/60.3 | 2.87/73 2.99/76.1 | 2.37/88.9 | 4.5/114.3 | 5.56/141.3 5.5/139.7 | 6.63/168.3 6.5/165.1 | 8.63/219.1 8.51/216.3 | 10.75/273.1 10.52/267.4 | 12.75/323.9 12.53/318.5 |
Net Weight (kg) & Crate qty (pcs)
| Size | 2″/50 | 2.5″/65 | 3″/80 | 4″/100 | 5″/125 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| N.W. | 24.00 | 25.30 | 27.50 | 35.00 | 42.00 | 50.00 | 83.00 | 123.50 | 175.50 |
| Create Qty | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 4 | 2 |
NOTES
Design and materials are subject to change without notice.
