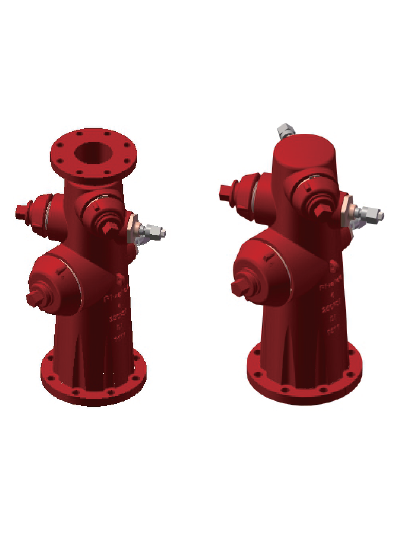

FV-WBH Wet Barrel Fire Hydrant

FEATURES

- Complies with AWWA C503.
- Working pressure : 250psi
- Working temperature : -10°C … 120°C

CONSTRUCTION

- One pumper nozzle 4.5-4NH threaded or 4-4NH threaded, two hose nozzles 2.5-7.5NH threaded.
- The quantities for pumper nozzle and hose nozzles can be chosen.
- Flange drilled to ANSI B16.1 Class125 / EN1092-2 PN16.
- Available in Monitor Flange Style.
FM Approved, UL Listed.

Name	Material
Hydrant Body	Ductile Iron A536-65-45-12
Pumper Connection
Chain	Carbon Steel + Zn
O-Ring	EPDM
Pumper Nozzle Cap	Ductile Iron A536-65-45-12
Pumper Nozzle	C84400
Pumper Nozzle Gasket	EPDM
4.5″ Gland	A351 CF8
Inner Six Angle Flat End Set Screw	A2
4.5″ Disc Sealing Ring	EPDM
4.5″ Disc	A351 CF8
Shaft	AISI 304 / 420
Fasten Nut	AISI 304
Inner Six Angle Cylindrical Head Screw	A2-70
4.5″ Shaft Nut	C84400
O-Ring	EPDM
Operating Nut	A351 CF8
Hexagon Nut	A2-70
Hexagon Headed Bolt	AISI 304
Flat Washer	AISI 304
Hexagon Nut	AISI 304
Inner Six Angle Set Screw	Carbon Steel + Zn
Hose Connection
O-Ring	EPDM
Hose Nozzle Cap	Ductile Iron A536-65-45-12
Hose Nozzle	C84400
Hose Nozzle Gasket	EPDM
2.5″ Gland	A351 CF8
2.5″ Disc Sealing Ring	EPDM
2.5″ Disc	A351 CF8
Shaft Stem Nut	C84400
Inner Six Angle Set Screw	Carbon Steel + Zn

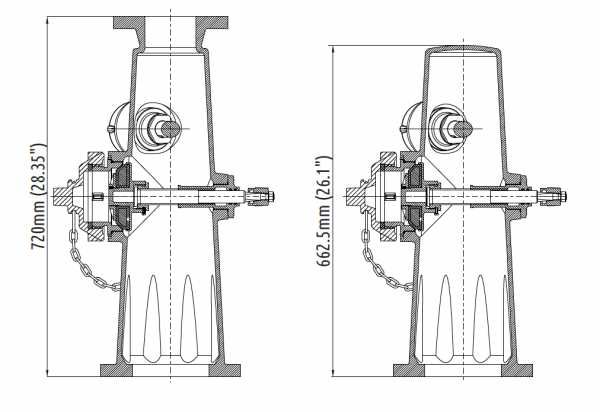

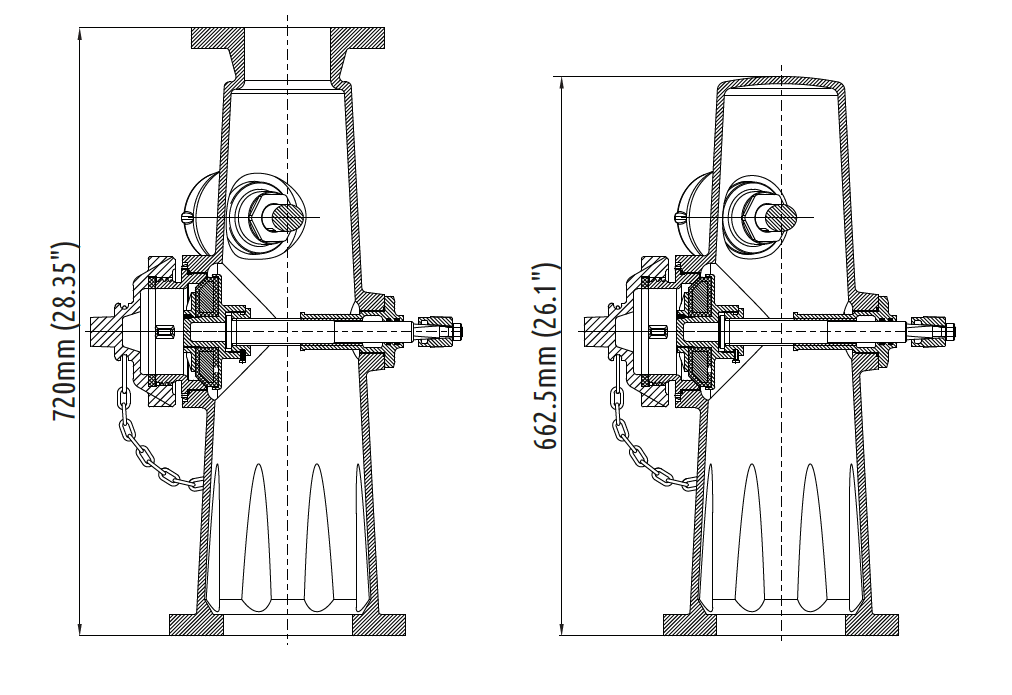

Model No.	Hose Nozzle	Pumper Nozzle	Monitor Flange	Lower Flange
FV-WBH-2H0P	2.5″x2	—	—	6″
FV-WBH-2H0PM	2.5″x2	—	4″	6″
FV-WBH-1H1P	2.5″x1	4″ or 4.5″ Pumper Connection x1	—	6″
FV-WBH-1H1PM	2.5″x1	4″ or 4.5″ Pumper Connection x1	4″	6″
FV-WBH-2H1P	2.5″x2	4″ or 4.5″ Pumper Connection x1	—	6″
FV-WBH-2H1PM	2.5″x2	4″ or 4.5″ Pumper Connection x1	4″	6″
