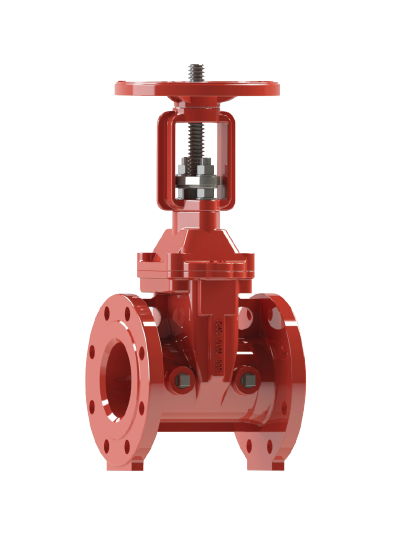

3299-365-FLA OS&Y Gate Valve Flanged Ends

365PSI Fig No.: 3299-365-FLA

FEATURES & SPECIFICATIONS

Rising stem, Outside Screw & Yoke (OS&Y).
Stainless steel stem.
Valve conforms to AWWA C515 / BS5163.
Fusion bonded epoxy coated interior and exterior RAL3002.
Flange drilled to ANSI B16.1 Class125 / ANSI B16.5 Class150 / EN1092-2 PN16 / BS10 Table D / Table E.
Working pressure : 365psi
Working temperature : -10°C … 120°C

FM Approved, UL & ULC Listed.

Categories: Fire Protection Products, Gate Valves

Description

Material Specification

Name	Material
Body	Ductile Iron ASTM A536 65-45-12
Wedge	Ductile Iron ASTM A536 65-45-12 + EPDM
Wedge Nut	Bronze ASTM B62
Stem	Stainless Steel AISl 304
Bonnet	Ductile Iron ASTM A536 65-45-12
Gasket	EPDM
Packing	Graphite
Stem Nut	Bronze ASTM B62
Handwheel	Ductile Iron ASTM A536 65-45-12

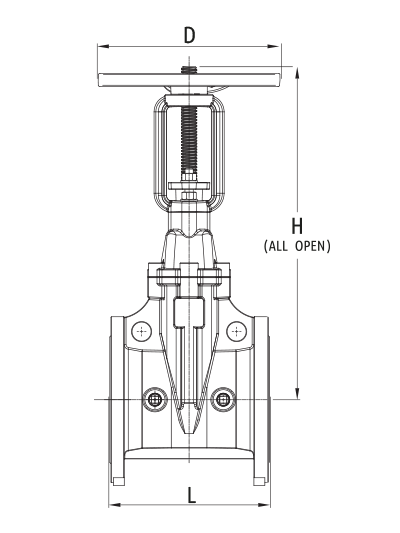

DIMENSIONS (inch/mm)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
L	7.01/178	7.50/191	8.00/203	9.00/229	10.00/254	10.50/267	11.50/292	13.00/330	14.00/356
H	16.1/409	16.1/409	18.2/463	20.55/5.22	28.15/715	28.15/715	35.94/913	44.01/1118	51.18/1300
D	6.3/160	6.3/160	8.66/220	8.66/220	11.02/280	12.05/306	14.56/370	16.53/420	17.52/445

Net Weight (kg) & Crate qty (pcs)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
N.W.	17.64	18.91	22.13	27.16	40.30	46.90	72.00	111.00	167.00
Create Qty	25	25	16	16	9	9	6	4	2

NOTES
Design and materials are subject to change without notice.
