Material Specification
| Name | Material |
|---|---|
| Operating Nut | Bronze ASTM B62 |
| Dust Ring | EPDM |
| Lock Nut | Stainless Steel 304 |
| Antifriction Mat | Aluminium Bronze/PTFE |
| Plug | Stainless Steel 304 |
| Cover | Ductile Iron A536-65-45-12 |
| Upper Hydrant Body | Ductile Iron A536-65-45-12 |
| Top Shaft | Stainless Steel 420 |
| Gland | Stainless Steel 304 |
| Fire Engine Nozzle Cap | Ductile Iron A536-65-45-12 |
| Fire Engine Nozzle Gasket | EPDM |
| Fire Engine Nozzle | Bronze ASTM B62 |
| Steel Wire Rope | Stainless Steel 304 Plastic coated |
| O-Ring | EPDM |
| Coupling | Stainless Steel 420 |
| Lower Hydrant Body | Ductile Iron A536-65-45-12 |
| Safety Flange | Ductile Iron A536-65-45-12 |
| Under Shaft | Stainless Steel 420 |
| Drain Valve Cover | Ductile Iron A536-65-45-12 |
| MJ Elbow Body | Ductile Iron A536-65-45-12 |
| Hexagon Head Bolts | Stainless Steel 304 |
| Flat Washer | Stainless Steel 304 |
| Spring Washer | Stainless Steel 304 |
| Hexagonal Nut | Stainless Steel 304 |
| Drain Valve Cover Seal | EPDM |
| Pin | Stainless Steel 304 |
| Cotter Pin | Stainless Steel 304 |
| Upper Fire Hydrant Body Seal | EPDM |
| Hexagon Socket Head Screws | Stainless Steel 304 |
| Hose Nozzle Cap | Ductile Iron A536-65-45-12 |
| Hose Nozzle Gasket | EPDM |
| Hose Nozzle | Bronze ASTM B62 |
| Hexagon Socket Set Screws | Stainless Steel 304 |
| Drain Valve Cap | Bronze ASTM B62 + EPDM |
| Spring | Stainless Steel 304 |
| Seat | Bronze ASTM B62 |
| Tablet | Ductile Iron A536-65-45-12 |
| Disc Sealing Ring | EPDM |
| Disc | Ductile Iron A536-65-45-12 |
| Nut Press Ring | Ductile Iron A536-65-45-12 + EPDM |

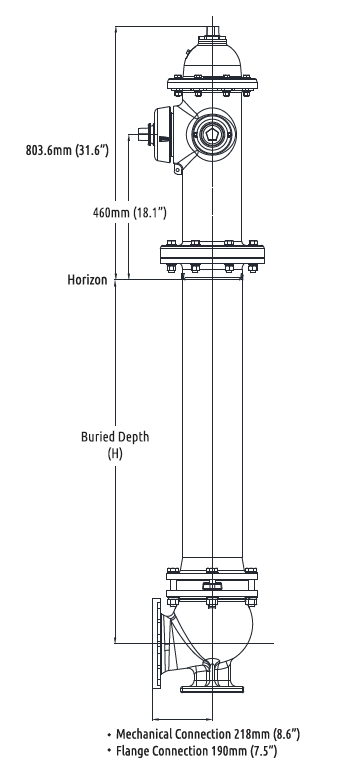

BURY DEPTH
| Bury Depths | 1’/326mm | 2’/543mm | 3’/848mm | 3.5’/1001mm | 4’/1153mm | 4.5’/1306mm | 5’/1458mm | 5.5’/1611mm | 6’/1763mm | 6.5’/1916mm | 7’/2068mm |
