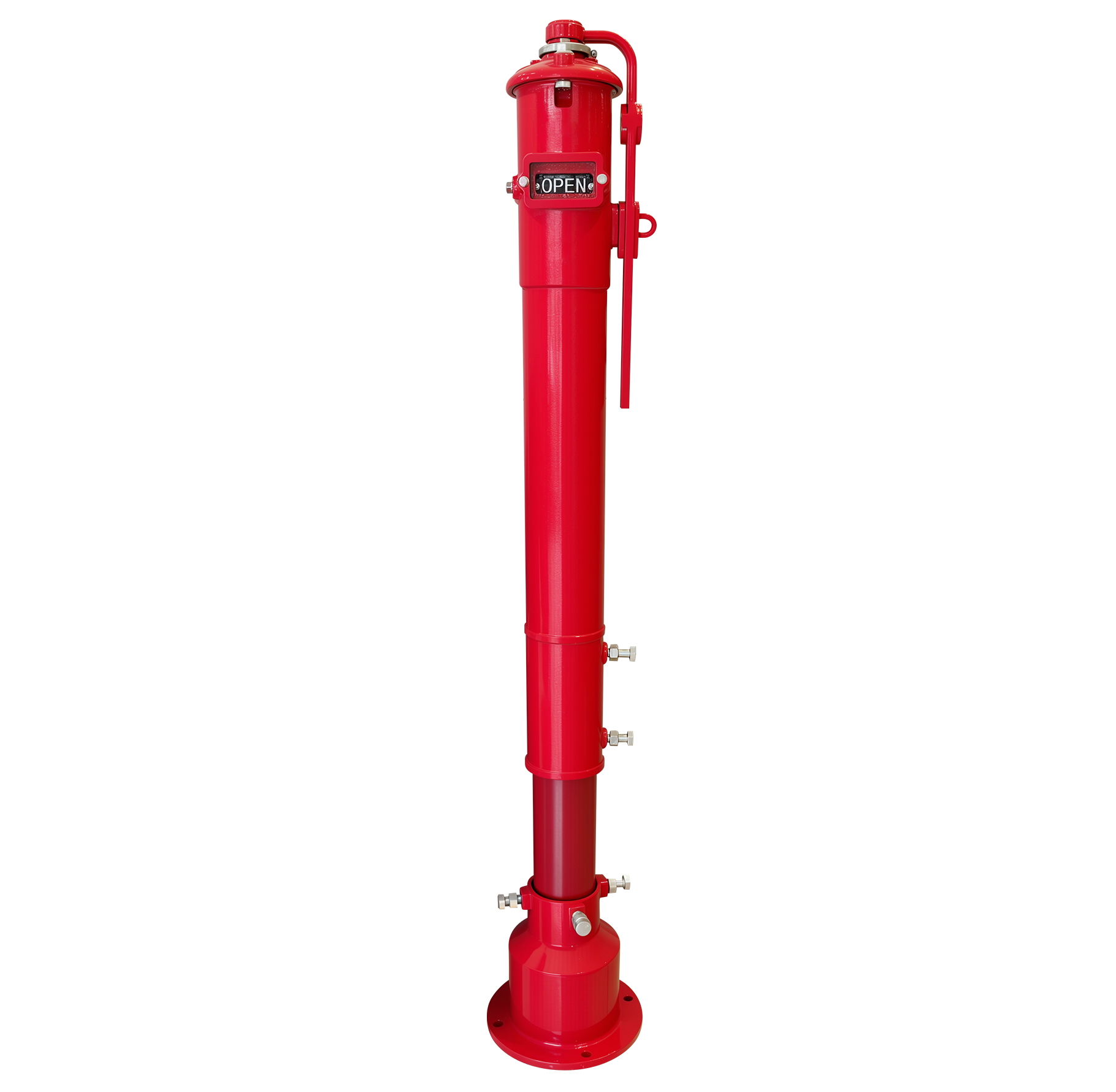

IPO365 Vertical Type Indicator Post

IPO365 Vertical Type Indicator Post

Fig No.: IPO365

UL Listed, FM Approved

Categories Fire Protection Products, Indicator Post Tags fire, fivalco, fm, fpp, indicator, nrs, protection, ul, valve

Materials

Name	Material
Hex Nut / Bolt	Galvanized Carbon Steel / SS304
Screw	Galvanized Carbon Steel / SS304
Plug	ASTM SS304
Pedestal	ASTM A536 65-45-12
Square Tube	AISI 1045 (Galvanize Surface)
Cotter	Galvanized Carbon Steel / SS304
Hoisting Ring	ASTM A105
Support Barrel	ASTM A53
Lower Barrel – Second	ASTM A536 65-45-12
Lower Barrel – First	ASTM A536 65-45-12
Shut Indicator	ASTM 2024
Open Indicator	ASTM 2024
Seal Ring	EPDM
Plat Washer	Galvanized Carbon Steel / SS304
Window	Lexan – unstabilize
Window Cover	ASTM A307B
Body	ASTM A536 65-45-12
Upper Barrel	ASTM A536 65-45-12
Operating Screw	ASTM SS304
Pin	Galvanized Carbon Steel / SS304
Retainer Ring	65Mn
Dust Cap	EPDM
Operating Nut	ASTM A536 65-45-12
Wrench	ASTM A536 65-45-12

Note : Internal and external fusion bonded epoxy / polyester coating to RAL3002 (Specify on order).

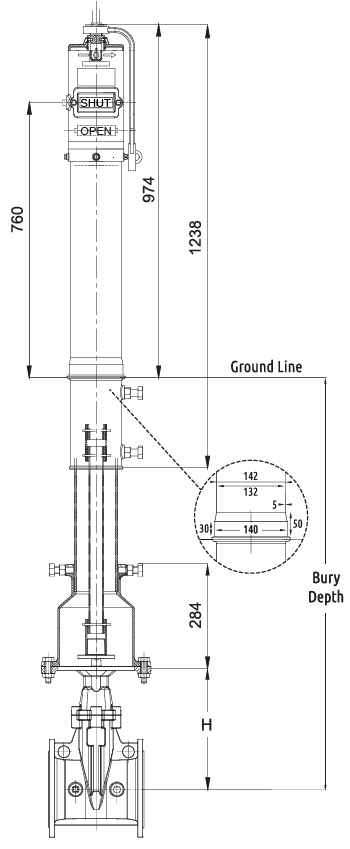

Dimensions (mm)

Bury Depth

Valve Size	Min. Bury Depth (mm)	Max. Bury Depth (mm)	H
			mm	inch
2″/DN50	623	1493	196	7.72″
2½”/DN65	623	1493	196	7.72″
3″/DN80	643	1513	224	8.82″
4″/DN100	667	1537	252	9.92″
5″/DN125	728	1598	343	13.5″
6″/DN150	762	1632	343	13.5″
8″/DN200	847	1717	423	16.65″
10″/DN250	942	1812	534	21.02″
12″/DN300	1028	1898	613	24.13″

Field Adjustment

Remove the top section from the top of the Indicator Post assembly.
Cut the required length off the bottom of the Standpipe for the Ground Line to match up with Standpipe Ground Line mark.
Set the “OPEN” and “SHUT” targets for the appropriate valve size.
Reattached the Top Section to the top of the Indicator Post assembly.
