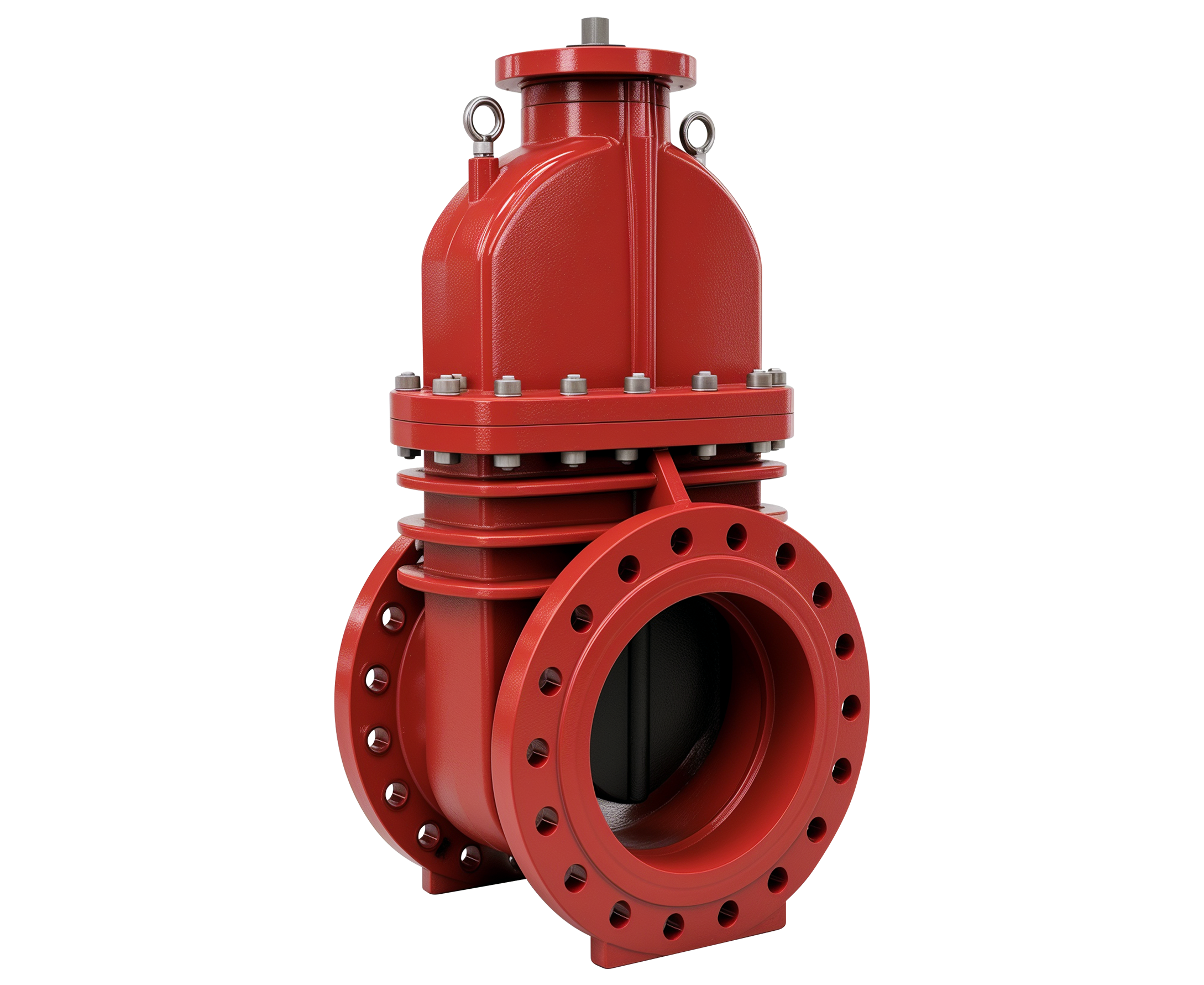

3288-L-200-FLA/3288-L-250-FLA NRS LARGE GATE VALVE FLANGED ENDS

3288-L-200-FLA/3288-L-250-FLA NRS LARGE GATE VALVE FLANGED ENDS - Image 2

3288-L-200-FLA/3288-L-250-FLA NRS LARGE GATE VALVE FLANGED ENDS

250PSI Fig No.:3288-L-200-FLA/ 3288-L-250-FLA

FEATURES & SPECIFICATIONS

Valve Standard:
Conforms to AWWA C515
Working Pressure:
250PSI for DN350/400/450
200PSI for DN500/600
Temperature: from -10°C to 120°C
Fusion bonded epoxy coated interior and exterior RAL3002
Flanged Ends:
ANSI B16.1 Class 125/ANSI B16.5 Class 150, EN1092-2 PN16
BS10 TableD/TableE
Stainless Steel Stem

NSF, FM Approved, UL & ULC Listed.

Categories Fire Protection Products, Gate Valves

Material Specification

Name	Material
Body	Ductile Iron ASTM A536 65-45-12
Wedge Disc	Ductile Iron ASTM A536 65-45-12 +EPDM
Disc Nut	ASTM B62 C83600
Stem	Stainless Steel AISI 431
Gasket	EPDM
Bonnet	Ductile Iron ASTM A536 65-45-12
Thrust Collar	Bronze ASTM B62
Gland	Ductile Iron ASTM A536 65-45-12
Wrench Nut	Ductile Iron ASTM A536 65-45-12
Post Plate	Ductile Iron ASTM A536 65-45-12

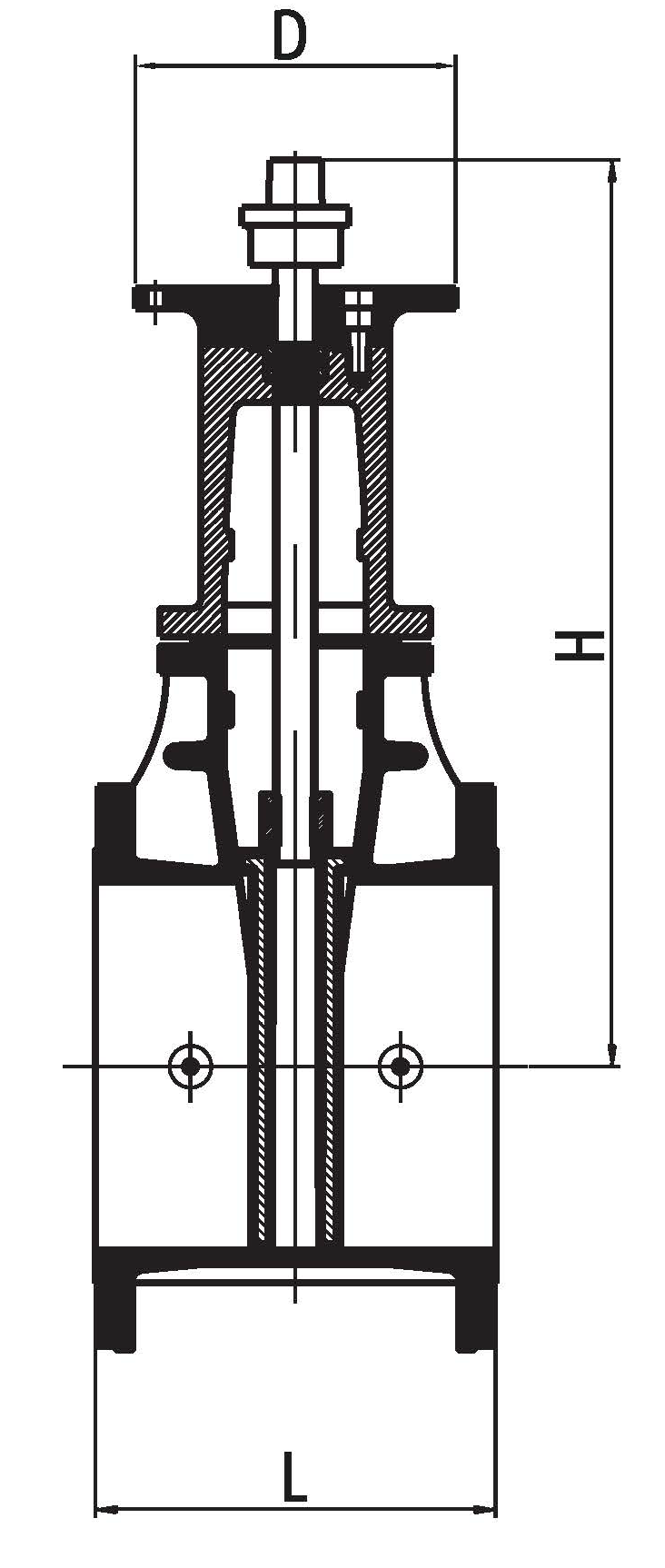

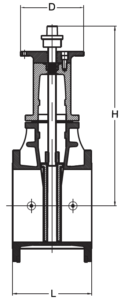

Dimensions (mm)

Size	14″/350	16″/400	18″/450	20″/500	24″/600
L	15.00/381	15.98/406	17.01/432	17.99/457	20.00/508
H	33.94/862	36.93/938	41.61/1057	44.96/1142	50.98/1295
D	12.01/305	12.01/305	12.01/305	12.01/305	12.01/305

Net Weight (kg) & Crate qty (pcs)

Size	14″/350	16″/400	18″/450	20″/500	24″/600
N.W.	232.00	308.00	446.00	636.00	848.00
Create Qty	1	1	1	1	1
