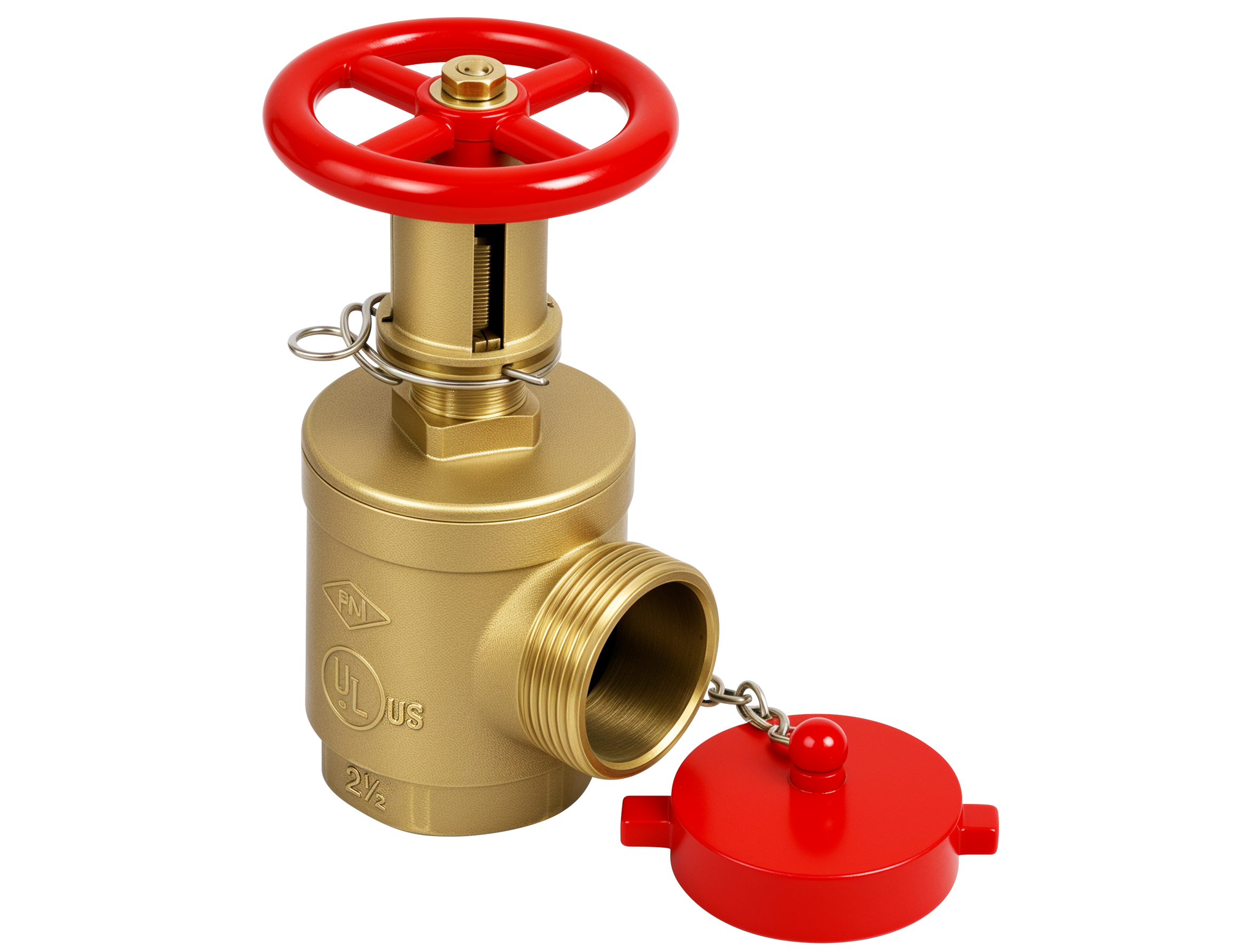

175PSI Fig No.: FBPR / FBPRB
FEATURES & SPECIFICATIONS
Pressure reducing device angle valve with locking device.
Rated adjustable restriction of resident pressure up to 175psi.
Pin may be removed manually to allow full opening of valve.
Inlet : Female NPT.
Outlet : Female NPT / Male hose thread.
Working pressure : 175psi.
UL Listed, FM Approved
| Name | Material |
|---|---|
| Body | Brass |
| Nut | Brass |
| Washer | Stainless Steel 304 |
| Seat Seal | EPDM |
| Holder | Brass |
| Set Screw | Stainless Steel 304 |
| Lock Nut | Brass |
| Bonnet | Brass |
| Stem | Brass |
| O-ring | EPDM |
| Lock nut | Brass |
| Handwheel | Aluminum Alloy |
| Wheel washer | Stainless Steel 304 |
| Wheel nut | Brass |
| Collar | Brass |
| Washer | Nylon 6 |
| Set screw | Stainless Steel 304 |
| Set numbers | Brass |
| Wire | Stainless Steel 304 |

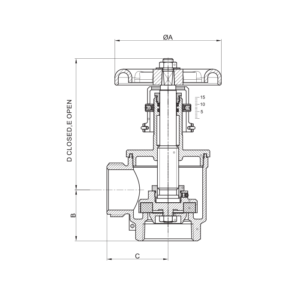

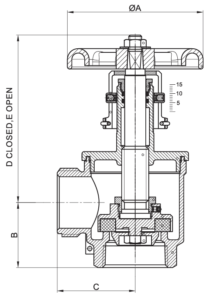

| Model No. | FBPR | FBPRB |
|---|---|---|
| Size | 1½” x 1½” / DN40 x DN40 | 2½” x 2½” / DN65 x DN65 |
| A | 100 | 127 |
| B | 48 | 67 |
| C | 58 | 77 |
| D | 123 | 165 |
| E | 145 | 206 |
