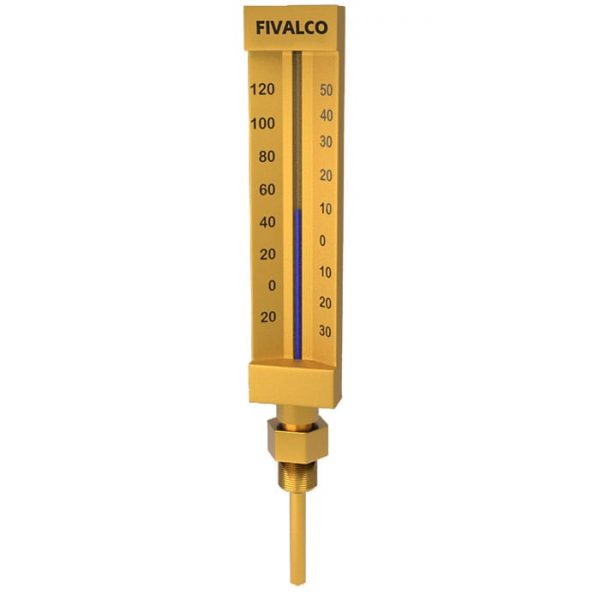

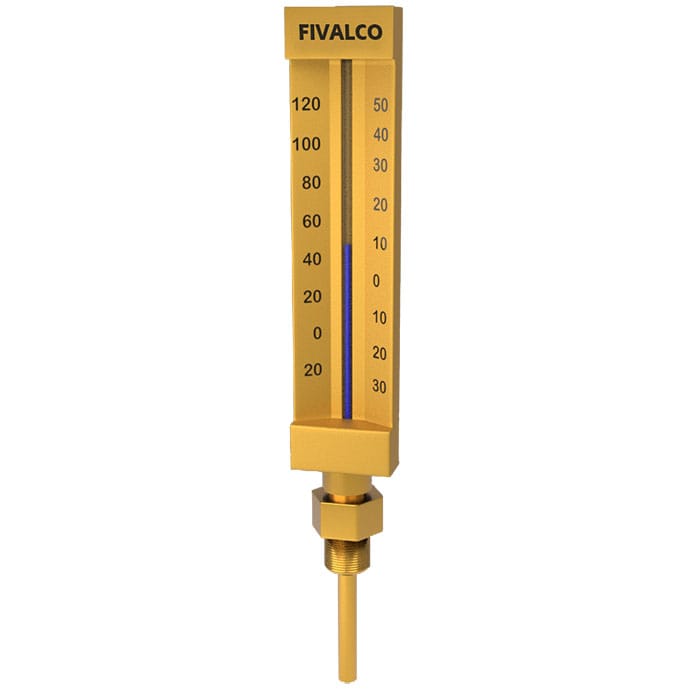

FT11 / FT12 V-LINE GLASS THERMOMETER

Fig No.: FT11 / FT12

FEATURES & SPECIFICATIONS

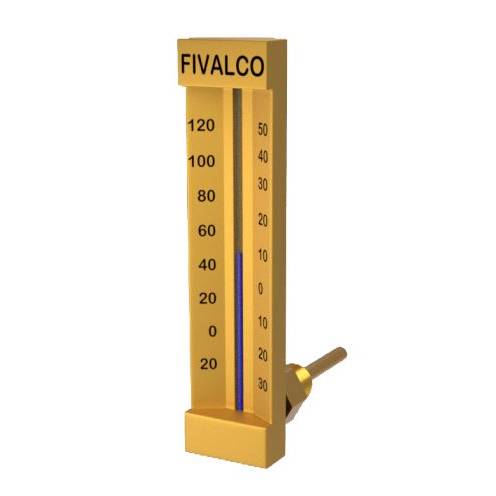

Straight bottom or 90° angle back insertion.
Organic blue liquid filled for easy reading.
Dual scale reading in °C and °F.
Equipped with brass / stainless steel thermowell.
Suitable for water, steam, oil within thermometer range.
Applicable for Building Services, Air-Conditioning, Refrigeration, Heating system, General Industries.

Categories: Mechanical Service & HVAC, Piping Specialities

Description

SPECIFICATIONS

Casing Length	6″ (150mm)
Stem Length	2.5″(65mm) / 4″(100mm) / 6″(150mm)
Casing Material	Aluminium, Anodized Gold
Stem Material	Brass / Stainless Steel
Thermowell Connection	1/2″ BSPT
Tube	Glass Cushioned
Filling	Organic Liquid in Blue
Scale Reading	Celsius (°C) & Fahrenheit (°F)
Operating Pressure	700 psi
Ambient Temperature	-30°C … 100°C
Accuracy	+/-2% of Full Scale Value
Protection	IP65

PRODUCT IDENTIFICATION CODE

		FT11	–	150	x	065	.	0/50
Type / Model	Straight	FT11
Type / Model	90° Angle	FT12
Casing Length	150mm (6””)			150
Stem Length	65mm (2.5″)					065
	100mm (4″)					100
	150mm (6″)					150
Temperature Range	0…50°C ; 30°F…120°F							0/50
	0…120°C ; 30°F…250°F							0/120
	0…200°C ; 30°F…390°F							0/200
	-30°C…50°C ; -20°F…120°F							030/50
	-40°C…40°C ; -40°F…110°F							040/40
