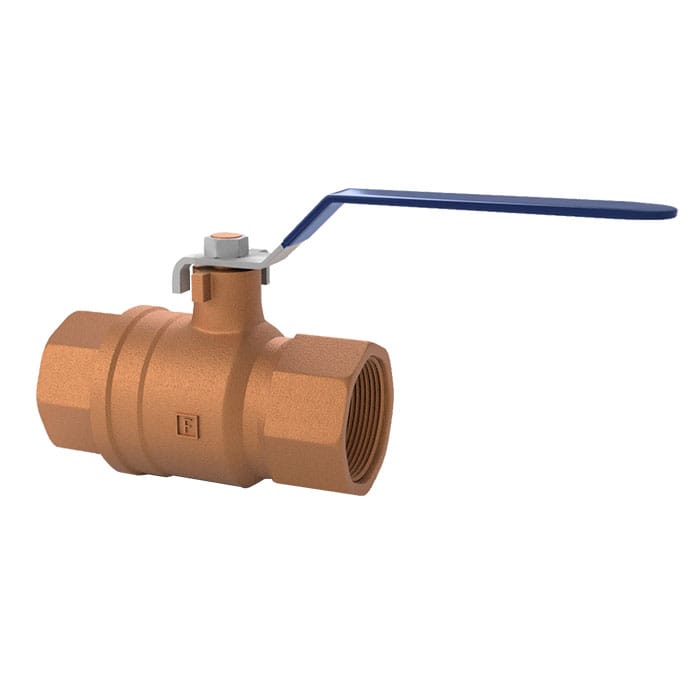

PRESSURE & TEMPERATURE RATINGS
| Working Pressure | 25bar WOG Non-Shock
10bar Saturated Steam |
| Shell Testing Pressure (x1.5) | 37.5bar Hydrostatic |
| Seat Testing Pressure (x1.1) | 27.5bar Hydrostatic
5.5bar Air |
| Working Temperature | -10°C … 170°C |
| Suitable Media | Water, Oil & Gas |
MATERIAL SPECIFICATIONS
| Name | Material | Specification |
|---|---|---|
| Body | Bronze | EN 1982 GC CC491K |
| Ball | Brass | EN 12165 CW617N |
| Stem | Brass | EN 12165 CW617N |
| Seat | PTFE | |
| Seat Retrainer | Bronze | EN 1982 GC CC491K |
| Packing | PTFE | |
| Gland Nut | Brass | EN 12165 CW617N |
| Lever | PVC Covered Mild Steel |

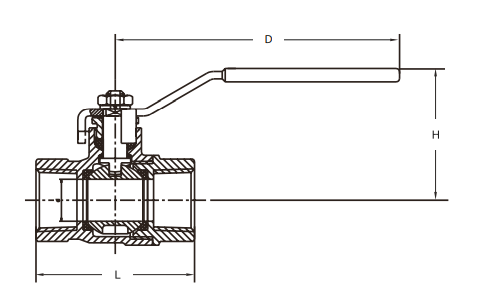

DIMENSIONS
| DN | (mm)
(inch) |
15
1/2 |
20
3/4 |
25
1 |
32
1 1/4 |
40
1 1/2 |
50
2 |
65
2 1/2 |
80
3 |
100
4 |
| L | 54 | 61 | 71 | 85 | 92 | 114 | 134 | 152 | 182 | |
| H | 50 | 53 | 57 | 67 | 72 | 82 | 118 | 132 | 150 | |
| D | 95 | 110 | 110 | 137 | 137 | 160 | 220 | 270 | 280 |
