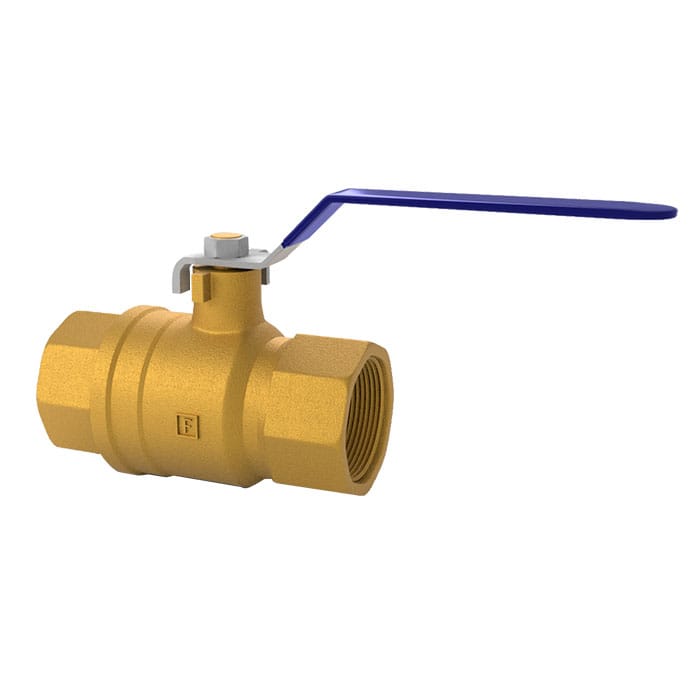

PRESSURE & TEMPERATURE RATINGS
Working Pressure | 25bar WOG Non-Shock
10bar Saturated Steam |
Shell Testing Pressure (x1.5) | 37.5bar Hydrostatic |
Seat Testing Pressure (x1.1) | 27.5bar Hydrostatic
5.5bar Air |
Working Temperature | -10°C … 170°C |
Suitable Media | Water, Oil & Gas |
MATERIAL SPECIFICATIONS
Name | Material | Specification |
---|---|---|
Body | Brass | EN 12165 CW617N |
Ball | Brass | EN 12165 CW617N |
Stem | Brass | EN 12165 CW617N |
Seat | PTFE | |
Seat Retainer | Brass | EN 12165 CW617N |
Packing | PTFE | |
Gland Nut | Brass | EN 12165 CW617N |
Level Nut | Stainless Steel | |
Lever | PVC Covered mild steel |
DIMENSIONS
DN | (mm)
(inch) |
10
3/8 |
15
1/2 |
20
3/4 |
25
1 |
32
1 1/4 |
40
1 1/2 |
50
2 |
L | 46 | 50.5 | 59.5 | 67 | 78 | 88 | 99 | |
H | 33 | 33 | 40 | 44 | 58 | 63 | 76 | |
D | 76 | 76 | 94 | 94 | 120 | 120 | 152 |
