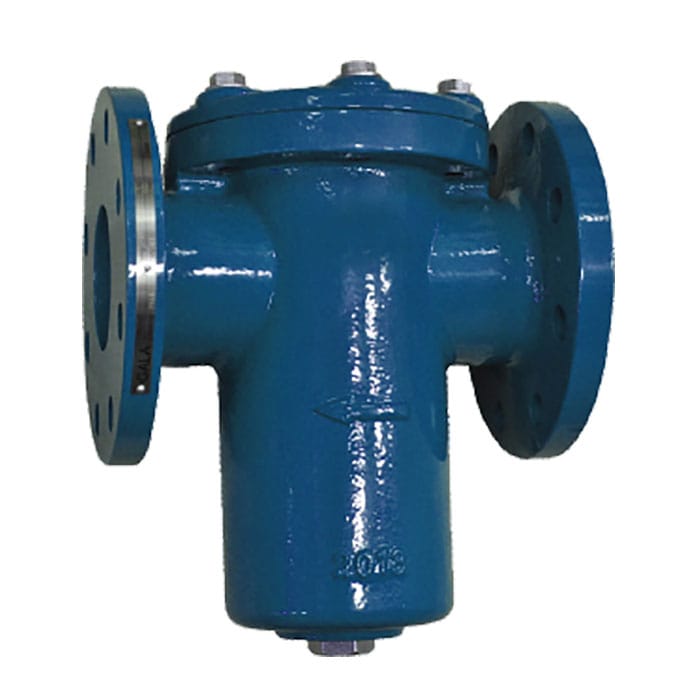

F73B BASKET TYPE STRAINER

Fig No.: F73B16 (PN16) / F73B25 (PN25)

FEATURES & SPECIFICATIONS

Filter the particles and debris that may be carried by process fluid in the pipeline.
Bolted cover.
Stainless steel perforated screen.
Durable fusion bonded epoxy coated.
Flange drilled to BS 4504 PN16 / EN 1092-2 PN16 / BS 4504 PN25 / EN1092-2 PN25 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, Sewerage & Water Treatment, General Industries.

Categories: Iron Valves, Mechanical Service & HVAC

Description

PRESSURE & TEMPERATURE RATINGS

Working Pressure	16bar / 25bar
Testing Pressure (x1.5)	24bar / 37.5bar
Working Temperature	-10°C … 120°C
Suitable Media	Water

Material Specification

Part	Material	Specification
Body	Ductile Iron	EN-JS 1050
Cover	Ductile Iron	EN-JS 1050
Screen	Stainless Steel 304	EN10088-3 1.4301
Blow-Off Plug	Carbon Steel
Gasket	Graphite / Teflon	Commercial

SCREENS DATA

DN(mm)	Hole Dia. (mm)	Mesh
50-80	1.5	104
100-400	3.0	40
450-600	5.0	12

DIMENSIONS

DN	(mm) (inch)	50 2	65 2¹/₂	80 3	100 4	125 5	150 6	200 8	250 10	300 12	350 14	400 16	450 18	500 20	600 24
	L	207	210	251	292	334	378	472	511	680	769	842	842	842	1054
	H1	135	155	190	205	219	235	295	335	405	585	590	590	600	1175
	H2	90	95	105	117	146	165	215	325	355	345	390	420	510	515

Note: PN25 only available for size DN50 … DN300.
