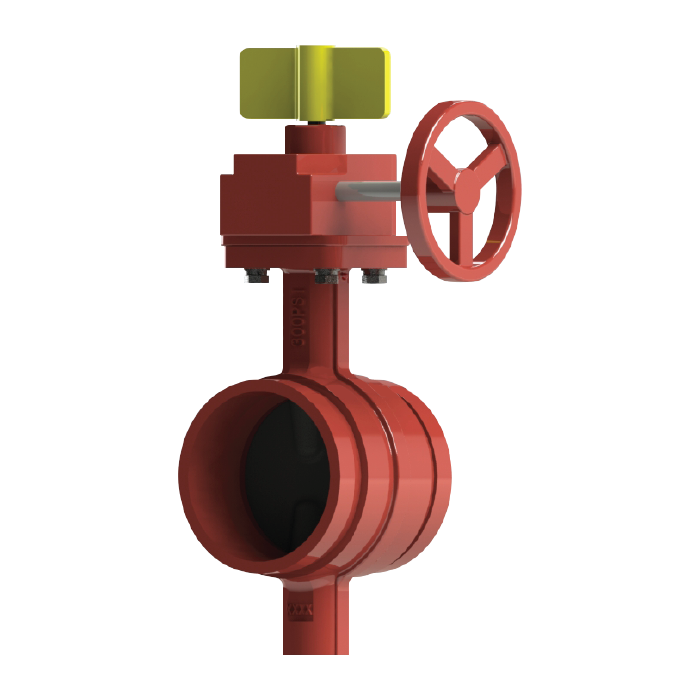

FPBG-300G Butterfly Valve Grooved Type

300PSI Fig No.: FPBG-300G

FEATURES & SPECIFICATIONS

Valve Standards:
Conforms to MSS SP-67/ BS EN593: 2009
Design and test standard conforms to FM1112 and UL1091
Fusion bonded epoxy coated RAL3002
Fitted with visual indicator and supervisory switch
EPDM encapsulated disc
Valve suitable for indoor and outdoor installation
Grooved ends to suit AWWA or BS pipe size
Working pressure : 300psi – Non Shock Coldwater
Max. test pressure : 600psi
Working temperature : -10°C … 120°C

FM Approved, UL & ULC Listed.

Categories: Butterfly Valves, Fire Protection Products

Description

Material Specification

Name	Material
Body	Ductile Iron ASTM A536 65-45-12
Disc	Ductile Iron ASTM A536 65-45-12 + EPDM
Lower Shaft	Stainless Steel SS410
Upper Shaft	Stainless Steel SS410
Signal Gearbox	Ductile Iron ASTM A536 65-45-12
O-Ring	EPDM
Bushing	Bronze ASTM B150M C63000
Gland	Galvanized Carbon Steel Surface Passivation
Washer	Galvanized Carbon Steel Surface Passivation
Plug	Galvanized Carbon Steel Surface Passivation
Gear Box Fasteners	Galvanized Carbon Steel Surface Passivation

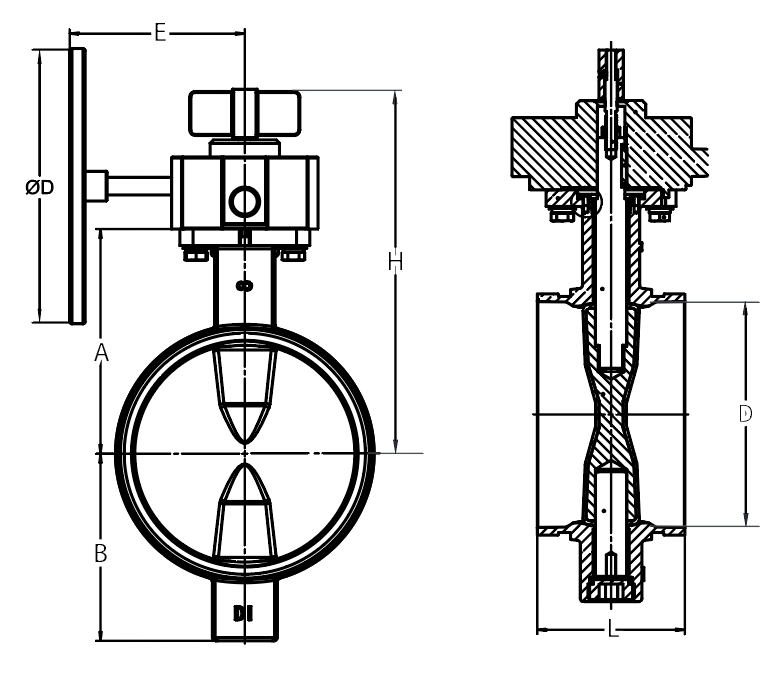

DIMENSIONS (inch/mm)

Size	A	B	L	E	H	D	ØD
2″	95	72	84.5	125	213	60.3	108
2.5″	98	78	98	125	216	73/76.1	108
3″	105	85	98	125	223	88.9	108
4″	135	105	116	125	253	114.3	108
5″	148	128	149	140	269	139.7/141.3	150
6″	165	140	147.6	140	285	165.1/168.3	150
8″	204	170	134	159	325	219.1	250
10″	245	205	160	159	373	273	250
12″	277.5	258.3	165	228	403.5	323.85	250

Net Weight (kg) & Crate qty (pcs)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
N.W.	4.4	4.9	5.2	6.3	11.7	14	22.1	36.2	50.2
Create Qty	90	80	70	60	50	40	20	10	10
