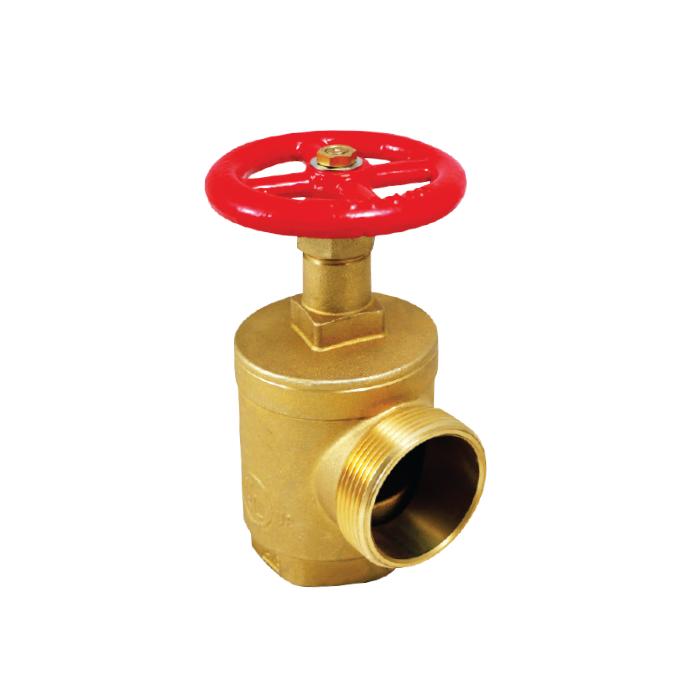

Material Specification
| Name | Material |
|---|---|
| Body | Brass |
| Nut | Brass |
| Washer | Stainless Steel 304 |
| Seat Seal | EPDM |
| Holder | Brass |
| Set Screw | Stainless Steel 304 |
| Lock Nut | Brass |
| O-ring | EPDM |
| Bonnet | Brass |
| Stem | Brass |
| Lock nut | Brass |
| O-ring | EPDM |
| Handle wheel | Aluminum Alloy |
| Wheel washer | Stainless Steel 304 |
| Wheel nut | Brass |
Dimensions (mm)
| Size | 1½”x1½”/40×40 | 2½”x2½”/65×65 |
|---|---|---|
| A | 100 | 127 |
| B | 50 | 68 |
| C | 63 | 79 |
| D | 119 | 157 |
| E | 145 | 200 |
