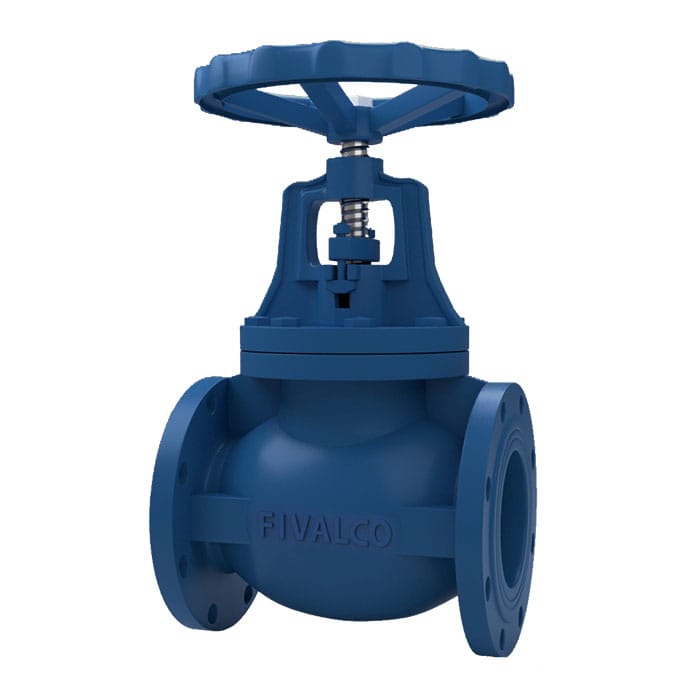

F33R OS&Y GLOBE VALVE

Fig No.: F33R16 (PN16)

FEATURES & SPECIFICATIONS

Rising stem, Outside Screw & Yoke (OS&Y).
Bolted bonnet.
Durable fusion bonded epoxy coated.
Design comply with BS 5152 / EN 13789 / MSS SP-85.
Flange drilled to EN 1092-2 PN16 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, FireProtection, Cold Water Plumbing, Hot Water System, Sewerage & Water Treatment, General Industries.

Categories: Iron Valves, Mechanical Service & HVAC

Description

PRESSURE & TEMPERATURE RATINGS

Working Pressure	16bar
Shell Testing Pressure (x1.5)	24bar
Seat Testing Pressure (x1.1)	17.6bar
Working Temperature	-20°C … 120°C
Suitable Media	Water, Oil, Gas

Material Specification

Part	Material	Specification
Body	Cast Iron	EN-JL 1040
Bonnet	Cast Iron	EN-JL 1040
Disc	Cast Iron	EN-JL 1040
Seat Ring	Bronze	EN 1982 CC491K
Stem	Stainless Steel 420	EN 10088-3 1.4021
Packing	Graphite	Non-Asbestos
Handwheel	Cast Iron	EN-JL 1040

DIMENSIONS

DN	(mm) (inch)	50 ²	65 2¹/₂	80 3	100 4	125 5	150 6	200 8	250 10	300 12
	L	203	216	241	292	330	356	495	622	699
	H (Open)	274	301	353	389	452	512	587	633	732
	D	178	178	200	254	300	300	348	400	457
