F5G20S BRONZE SWING CHECK VALVE

PN20 Fig No.: F5G20S

FEATURES & SPECIFICATIONS

  • Swing disc.
  • Integral seat.
  • Threaded cap.
  • Threaded to EN 10226-1 (ISO 7).
  • Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Hot Water System, General Industries.

WRAS Approved

Categories: ,

PRESSURE & TEMPERATURE RATINGS

Working Pressure 20bar WOG Non-Shock

10bar Saturated Steam
Shell Testing Pressure (x1.5) 30bar Hydrostatic
Seat Testing Pressure (x1.1) 22bar Hydrostatic

            5.5bar Air
Working Temperature -10°C … 170°C
Suitable Media Water, Oil & Gas
  • UL/FM Valves Indonesia
  • Bronze Swing Check Valve

UL/FM Valves Indonesia

Fivaclo Company’s products are of good quality. Our huge variety of valves, hydrants, and add-ons is permitted through UL, FM, and VdS.

Bronze Swing Check Valve

Looking for Swing Check Valve? Bronze Swing Check Valve, Strict Quality Control Inspection, Order! Leading Professional Manufacturer Of Swing Check Valve In China.

MATERIAL SPECIFICATIONS

Name Material Specification
Body Bronze EN 1982 GC CC491K
Cap Bronze EN 1982 GC CC491K
Disc Bronze EN 1982 GC CC491K
Hinge Brass EN 12165 CW617N
Hinge Pin Stainless Steel 420 EN 10088-3 1.4021
Hinge Nut Brass EN 12165 CW617N
Gasket Non-Asbestos

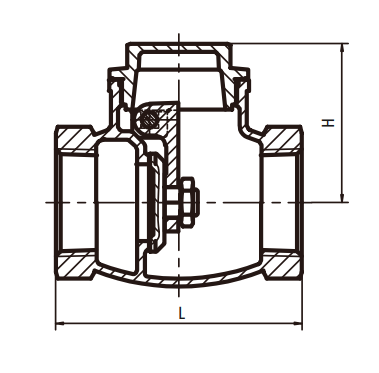

DIMENSIONS

DN (mm)

(inch)

 15

1/2

 20

3/4

 25

1

 32

1 1/4

 40

1 1/2

 50

2

 65

2 1/2

 80

3

 100

4
L 58 66 76 88 96 112 136 147 180
H 37 43 49 57.5 63 72 85 93 110
