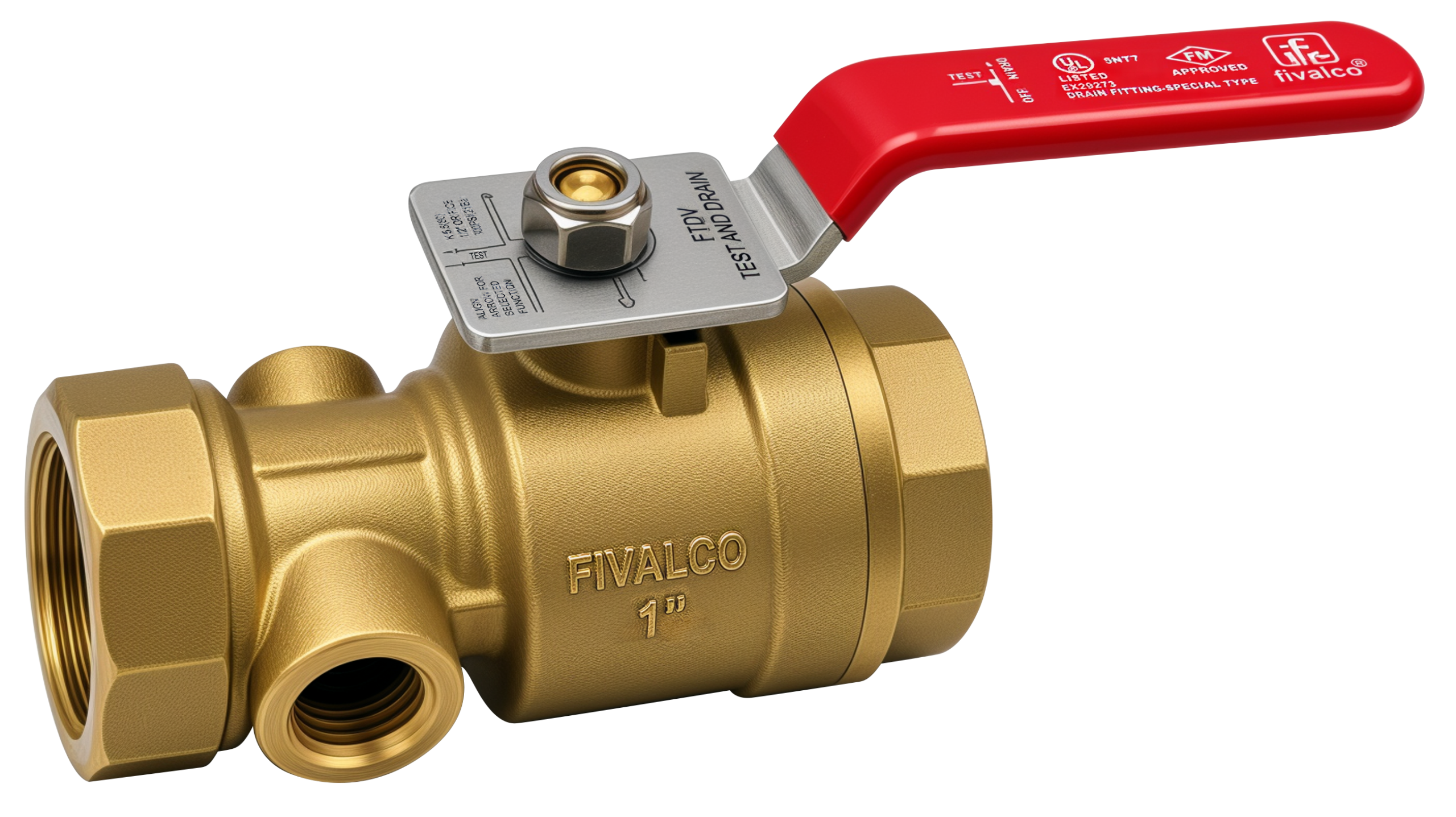

FTDV BRASS TEST AND DRAIN VALVE

FTDV BRASS TEST AND DRAIN VALVE

300PSI Fig No.: FTDV

FEATURES & SPECIFICATIONS

Working Pressure: 300PSI
Positive 3 position handle for OFF, TEST or DRAIN.
Large and integral sight glass on both sides.
½” (nominal) test orifice K-factor 5.6
Threaded ends: NPT or BSPT.

FM Approved, UL & ULC Listed.

Categories Brass Valves, Fire Protection Products

Material Specification

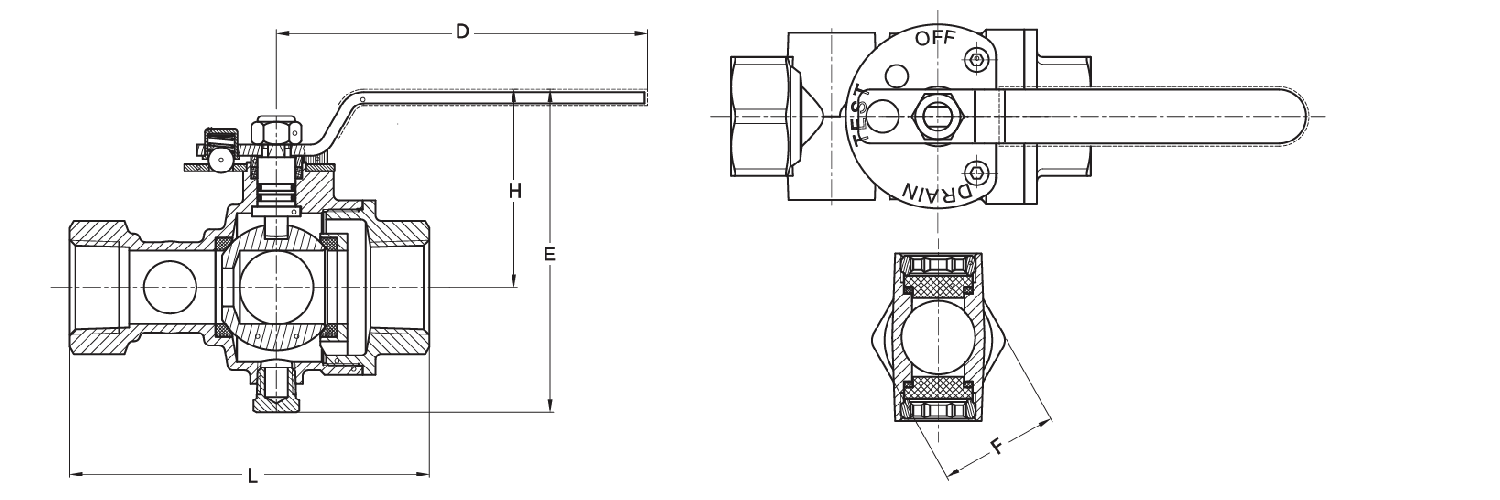

DIMENSIONS (inch/mm)

Material Specification

Name	Material
Body	Brass
Body cap	Brass
Seat	PTFE
Ball	Brass
Stem	Brass
O-ring	NBR
Lever	Steel
Nut	Steel
Gland Packing	PTFE
Gland	Brass
Cap	Brass
Spring	Stainless Steel 304
Steel ball	Stainless Steel 304
Indicator plate	Steel
Plug	Brass
Washer	NBR
Sight glass	Lexan
Retaining ring	Brass
Stop screw	Stainless Steel 304

DIMENSIONS (inch/mm)

Size	1″/25	1¼”/32	1½”/40	2″/50
L	127	127	167	167
H	71.5	71.5	89	89
E	115.7	115.7	147	147
D	141	141	161	161
F	42	49	58	71

Related products

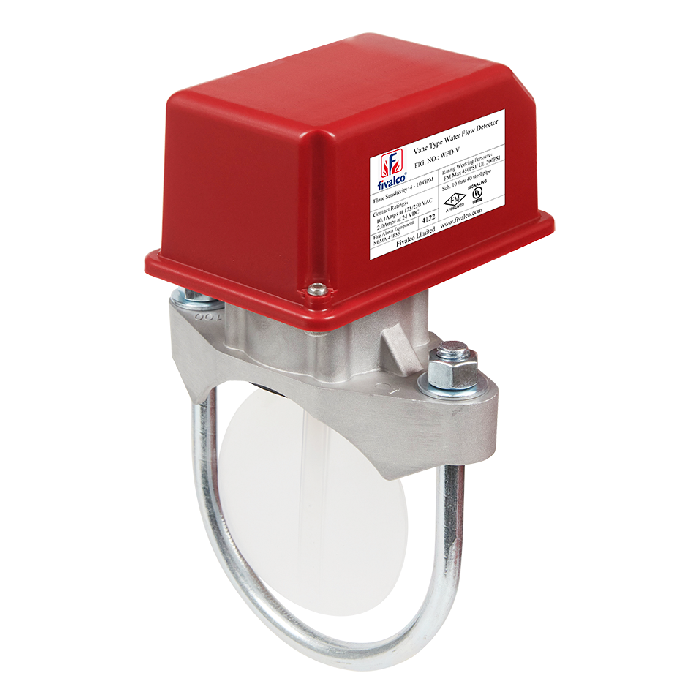

WFD-V VANE TYPE WATER FLOW DETECTOR WITH RETARD

BGV BRONZE GATE VALVE

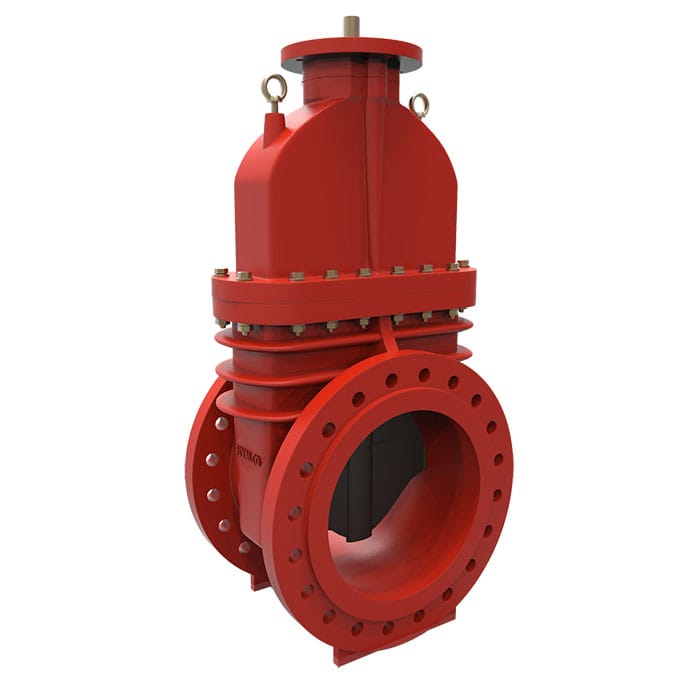

3288-L-200-FLA/3288-L-250-FLA NRS LARGE GATE VALVE FLANGED ENDS

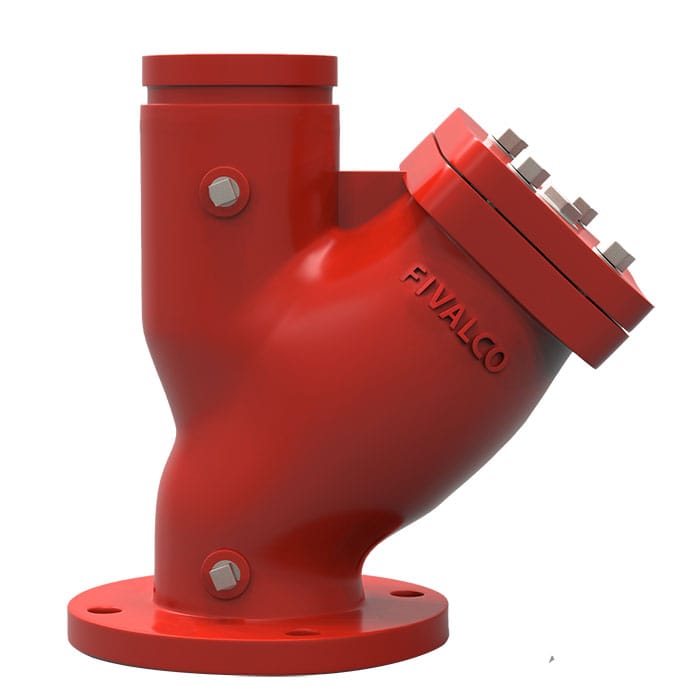

YS-300-FG Y-STRAINER FLANGED-GROOVED ENDS

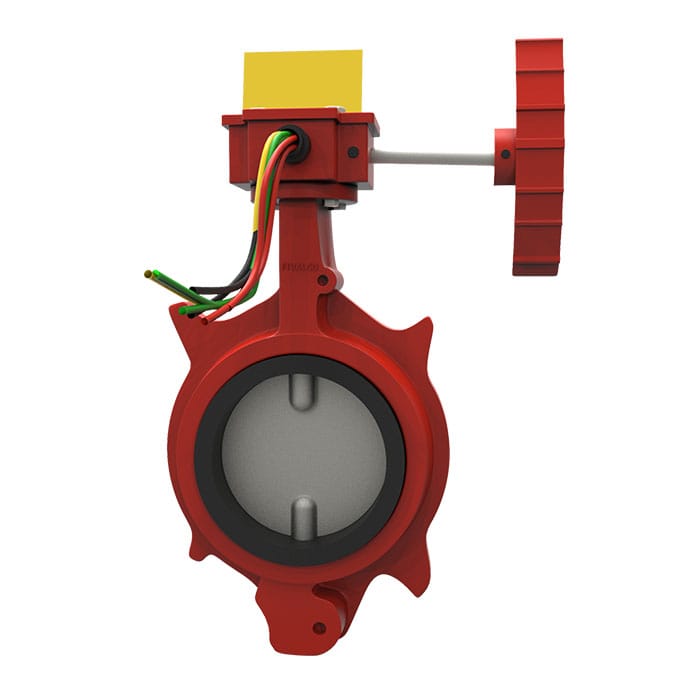

1353 BS BUTTERFLY VALVE WAFER TYPE
