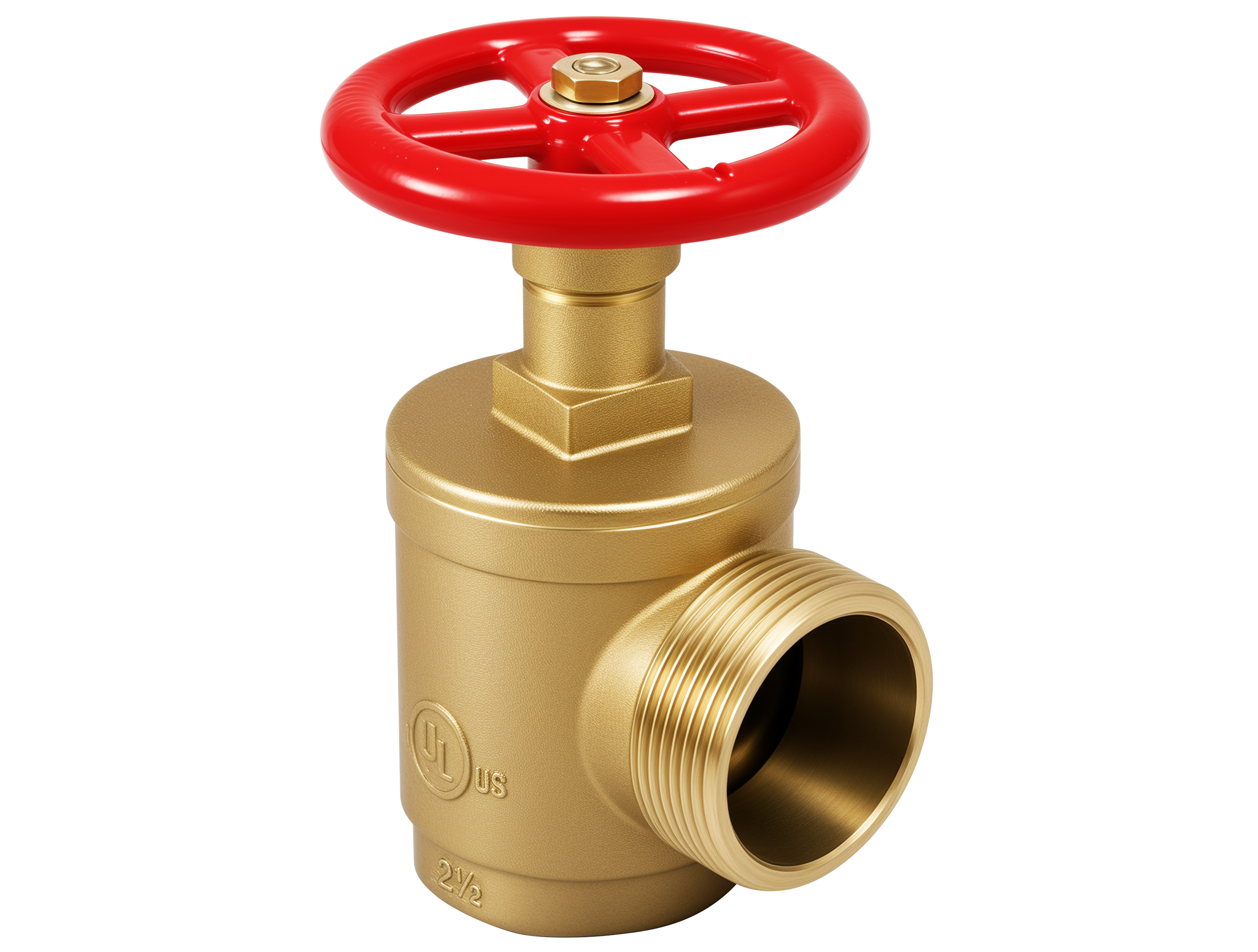

300PSI Fig No.: FBHV
FEATURES & SPECIFICATIONS
Designed for fire hose rack assembly.
Inlet : Female NPT.
Outlet : Female NPT / Male hose thread.
Working pressure : 300psi
UL Listed, FM Approved
| Name | Material |
|---|---|
| Body | Brass |
| Nut | Brass |
| Washer | Stainless Steel 304 |
| Seat Seal | EPDM |
| Holder | Brass |
| Set Screw | Stainless Steel 304 |
| Lock Nut | Brass |
| O-ring | EPDM |
| Bonnet | Brass |
| Stem | Brass |
| Lock nut | Brass |
| O-ring | EPDM |
| Handwheel | Aluminum Alloy |
| Wheel washer | Stainless Steel 304 |
| Wheel nut | Brass |

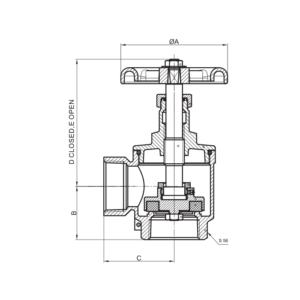

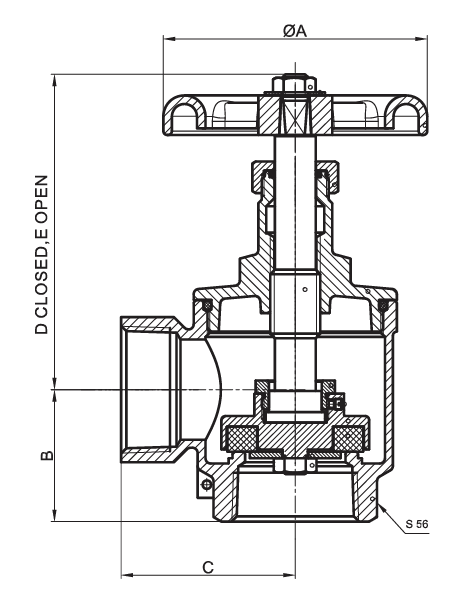

| Size | 1½” x 1½” / DN40 x DN40 | 2½” x 2½” / DN65 x DN65 |
|---|---|---|
| A | 100 | 127 |
| B | 48 | 67 |
| C | 58 | 77 |
| D | 123 | 165 |
| E | 145 | 206 |
