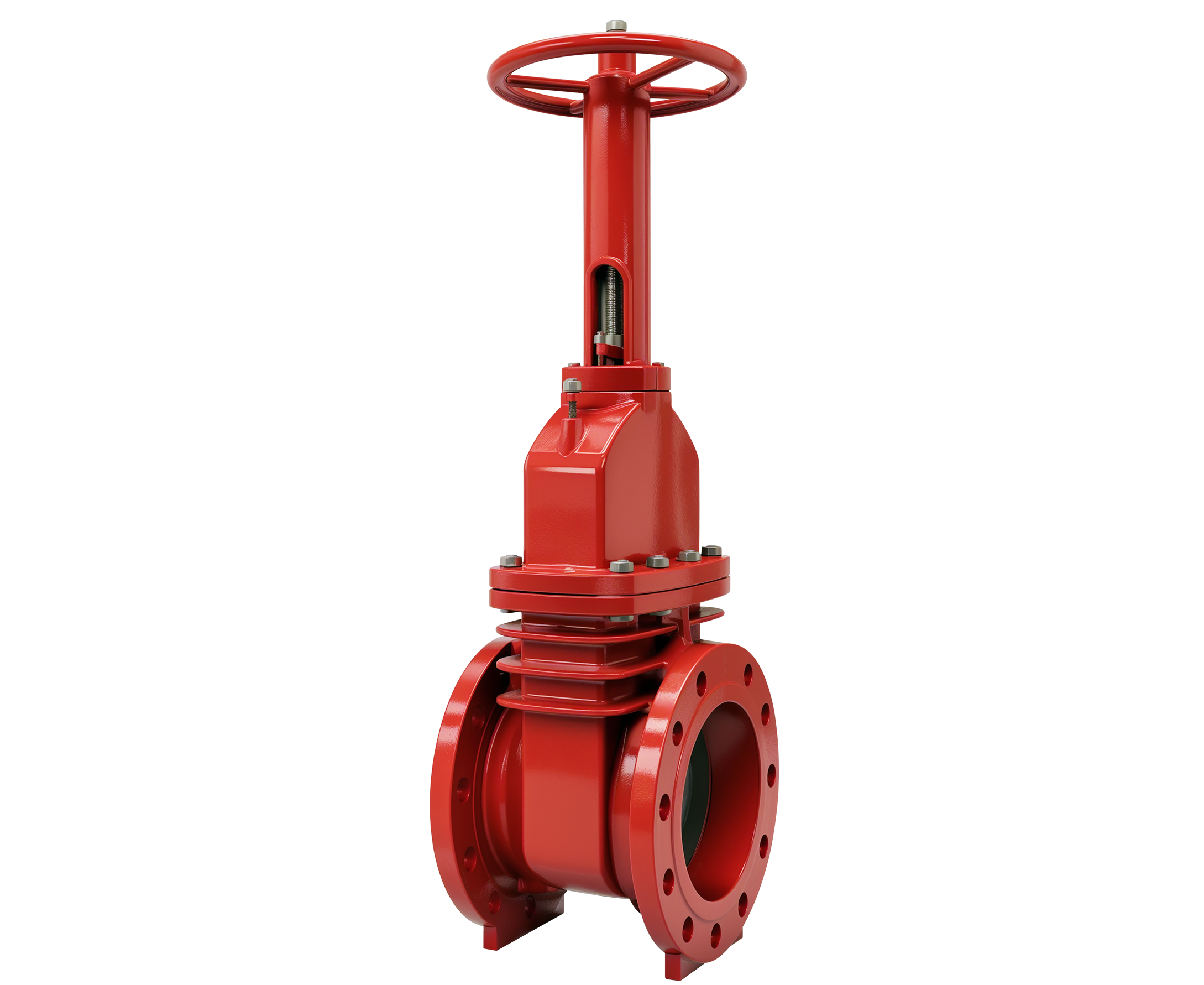

200PSI/250PSI Fig No.: 3299-L-200-FLA/3299-L-250-FLA
FEATURES & SPECIFICATIONS
Rising stem, Outside Screw & Yoke (OS&Y).
Stainless steel stem.
Valve conforms to AWWA C515 / BS5163.
Fusion bonded epoxy coated interior and exterior RAL3002.
Flange drilled to ANSI B16.1 Class 125 / ANSI B16.5 Class 150 / EN1092-2 PN16 / BS10 Table D / Table E.
Working pressure : 250psi (DN350…DN450), 200psi (DN500 & DN600).
Working temperature : -10°C … 120°C
UL Listed, FM Approved
| Name | Material |
|---|---|
| Body | Ductile Iron ASTM A536 65-45-12 |
| Wedge | Ductile Iron ASTM A536 65-45-12 + EPDM |
| Wedge Nut | Stainless Steel AISI 304 |
| Stem | Stainless Steel AISI 304 / 420 |
| Bonnet | Ductile Iron ASTM A536 65-45-12 |
| Gasket | EPDM |
| Packing | Graphite |
| Stem Nut | Bronze ASTM B62 |
| Handwheel | Ductile Iron ASTM A536 65-45-12 |

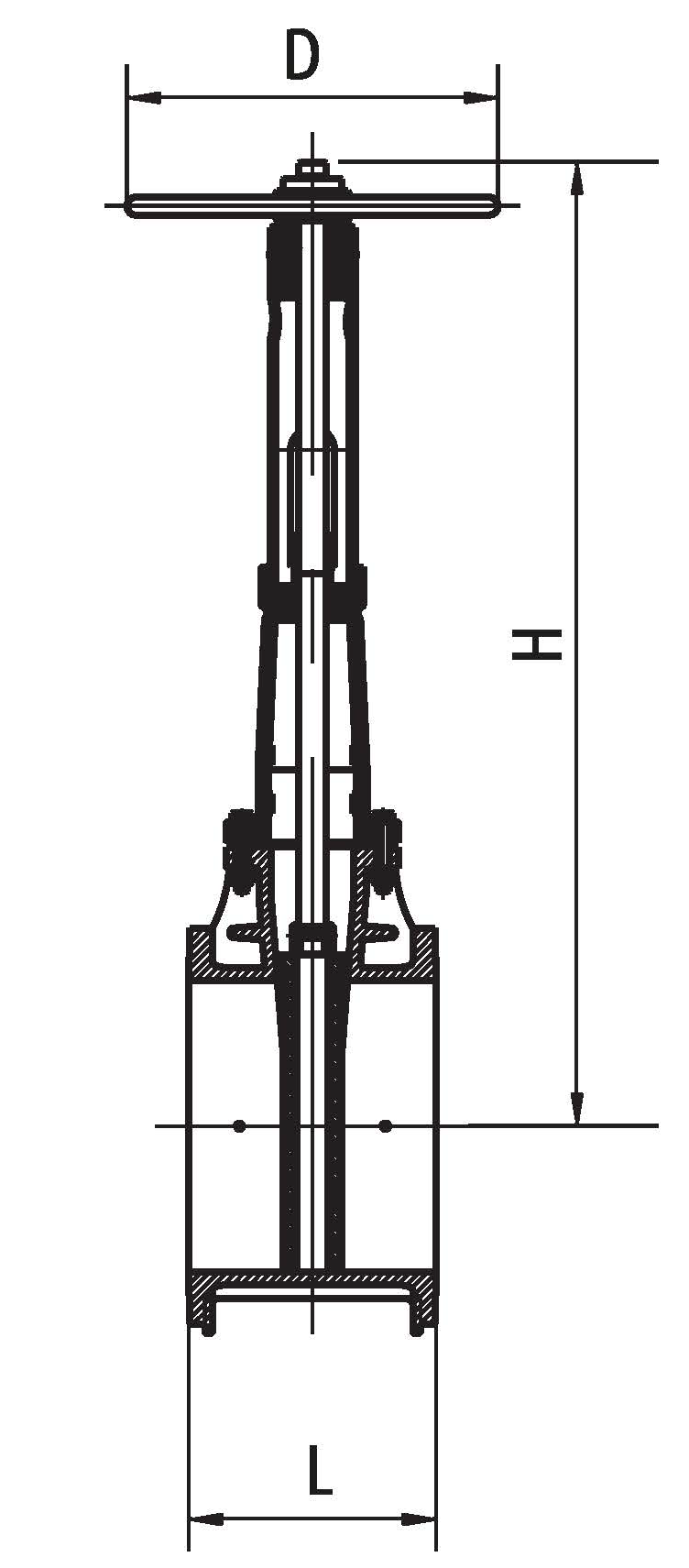

| Size | 14″/DN350 | 16″/DN400 | 18″/DN450 | 20″/DN500 | 24″/DN600 |
| L | 381 | 406 | 432 | 457 | 508 |
| H | 1577 | 1800 | 2048 | 2297 | 2600 |
| D | 508 | 558 | 610 | 610 | 762 |
| Size | 14″/DN350 | 16″/DN400 | 18″/DN450 | 20″/DN500 | 24″/DN600 |
| Net Weight (Kg) | 277.00 | 366.00 | 530.00 | 754.00 | 1020.00 |
| Create Qty | 1 | 1 | 1 | 1 | 1 |
