Materials
| Name | Material |
|---|---|
| Body | Bronze C83600 |
| Disc | Stainless Steel AISl 304 |
| Handwheel | WCB |
| Seat | Viton |
| Indicator | Powder Metal |
| Housing | Forged Brass |

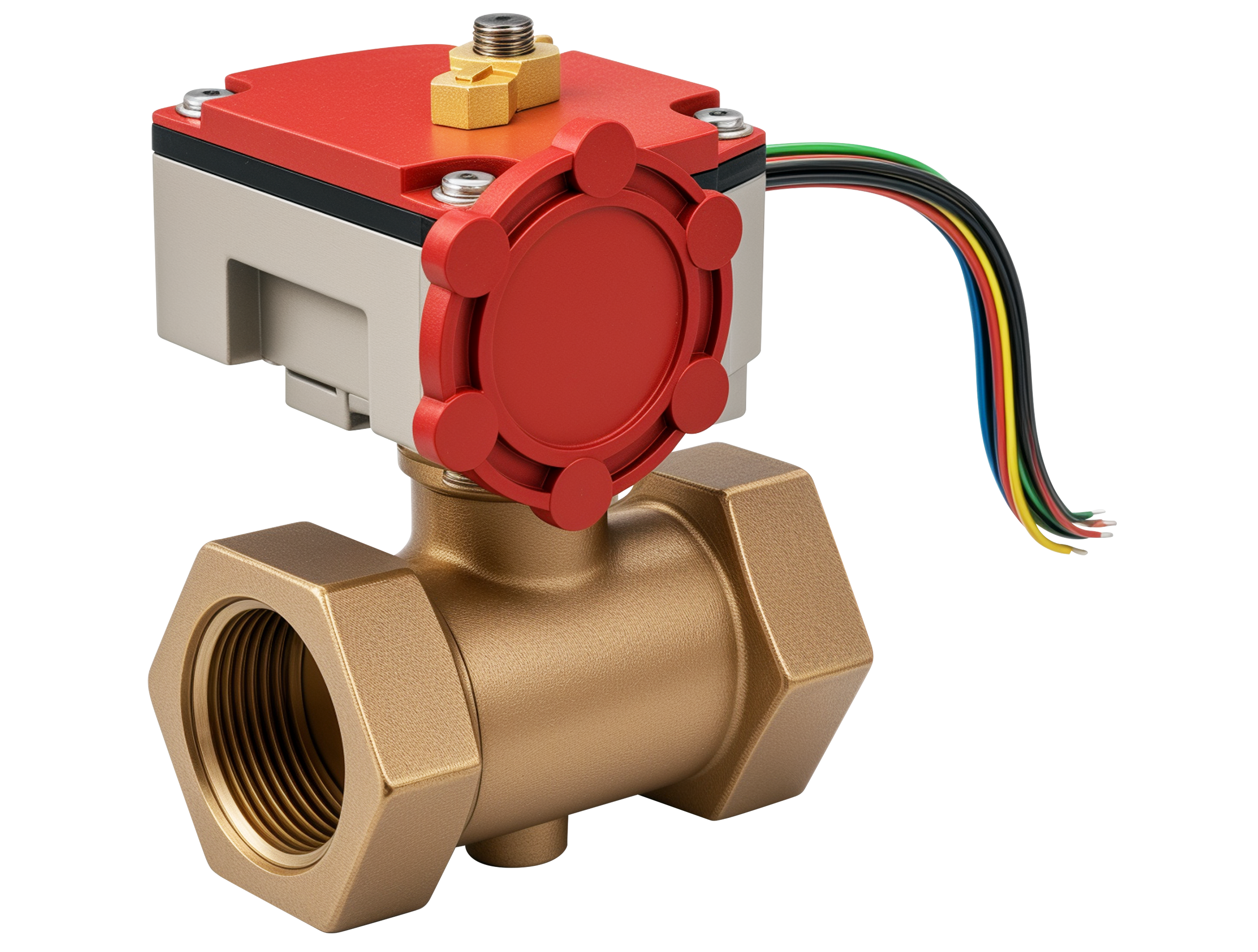

300PSI Fig No.: BBT-300
FEATURES & SPECIFICATIONS
Factory installed UL listed double tamper switches.
Valve approved for indoor and outdoor use.
Threaded : NPT or BSPT.
Working pressure : 300psi.
Max. Test pressure : 600psi.
Max. Working temperature : 250°F (120°C)
UL Listed, FM Approved
| Name | Material |
|---|---|
| Body | Bronze C83600 |
| Disc | Stainless Steel AISl 304 |
| Handwheel | WCB |
| Seat | Viton |
| Indicator | Powder Metal |
| Housing | Forged Brass |

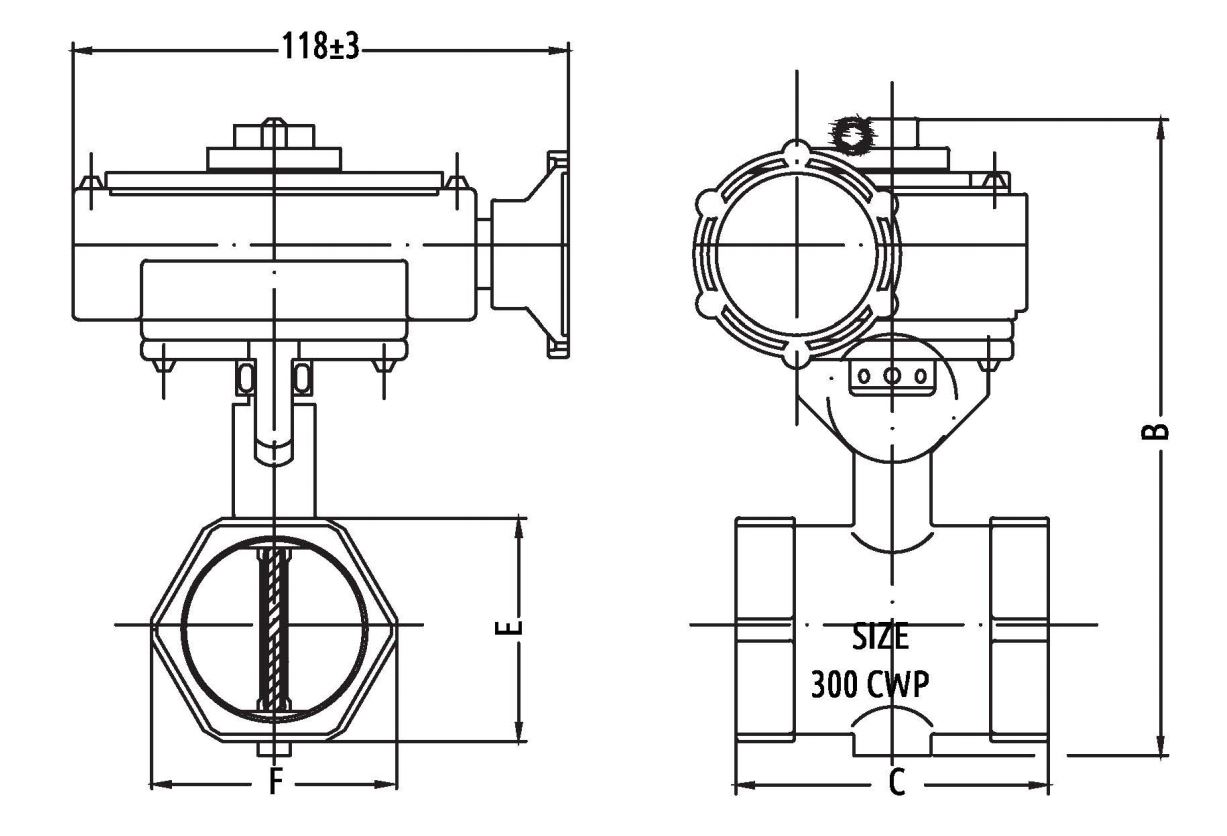

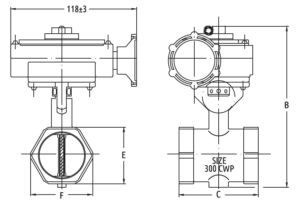

| Size | 1″ / DN25 | 1.25″ / DN32 | 1.5″ / DN40 | 2″ / DN50 | 2.5″ / DN65 |
| B | 129 | 137.9 | 145.9 | 159.8 | 175.5 |
| C | 54 | 66.7 | 73 | 82.6 | 114 |
| E | 39.7 | 49.2 | 55.6 | 70 | 86.5 |
| F | 44.5 | 55 | 60.3 | 79 | 96 |
| Size | 1″ / DN25 | 1.25″ / DN32 | 1.5″ / DN40 | 2″ / DN50 | 2.5″ / DN65 |
| Net Weight (Kg) | 1.55 | 1.71 | 1.83 | 2.35 | 3.38 |
| Create Qty | 6 | 6 | 6 | 6 | 6 |
