| Name | Material |
|---|---|
| Body | Ductile Iron ASTM A536 65-45-12 |
| Wedge Disc | Ductile Iron ASTM A536 65-45-12 +EPDM |
| Disc Nut | Bronze ASTM B62 |
| Stem | Stainless Steel AISI 304/402 |
| Gasket | EPDM |
| Bonnet | Ductile Iron ASTM A536 65-45-12 |
| Thrust Collar | Bronze ASTM B62 |
| Gland | Ductile Iron ASTM A536 65-45-12 |
| Wrench Nut | Ductile Iron ASTM A536 65-45-12 |
| Post Plate | Ductile Iron ASTM A536 65-45-12 |

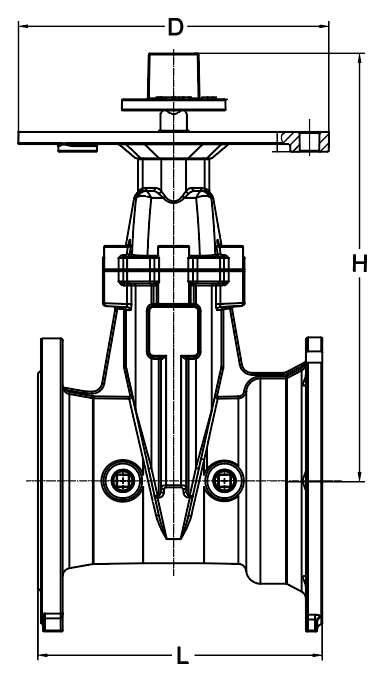

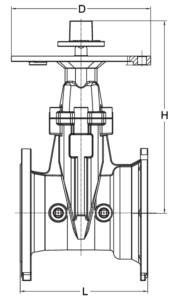

| Size | 3″/80 | 4″/100 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| L | 9.49/241 | 10.00/254 | 11.50/292 | 12.52/318 | 14.76/375 | 14.88/378 |
| H | 12.01/305 | 12.76/324 | 16.85/428 | 21.14/537 | 25.20/640 | 28.46/723 |
| D | 12.01/305 | 12.01/305 | 12.01/305 | 12.01/305 | 12.01/305 | 12.01/305 |
| Size | 3″/80 | 4″/100 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| N.W. | 27.50 | 35.00 | 50.00 | 83.00 | 123.50 | 175.50 |
| Create Qty | 9 | 9 | 9 | 9 | 4 | 2 |
