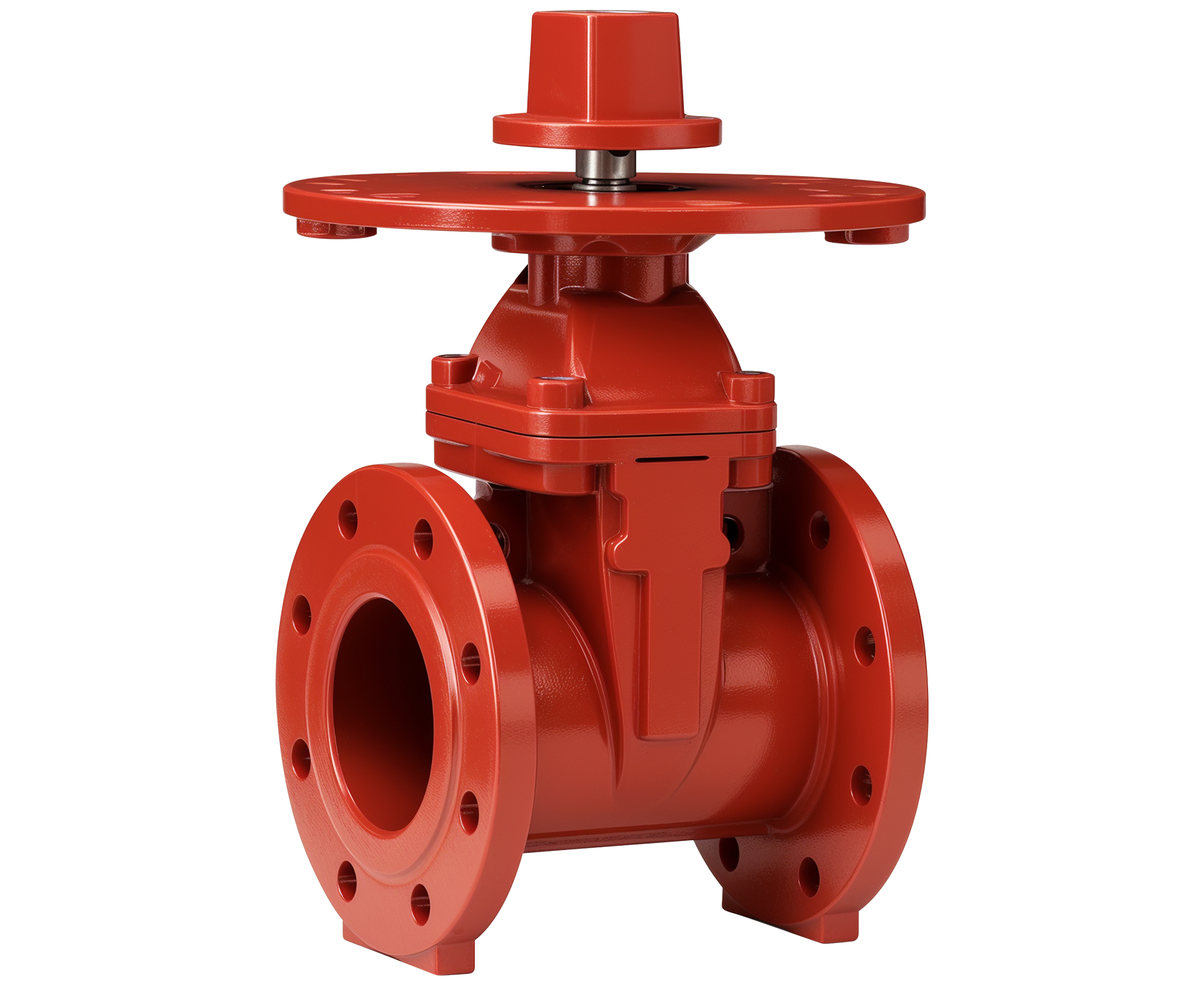

365PSI Fig No.: 3288-365-FLA
FEATURES & SPECIFICATIONS
Non-rising stem.
Stainless steel stem.
Valve conforms to AWWA C515 / BS5163.
Fusion bonded epoxy coated interior and exterior RAL3002.
Flange drilled to ANSI B16.1 Class 125 / ANSI B16.5 Class 150 / EN1092-2 PN16 / BS10 Table D / Table E.
Working pressure : 365psi.
Working temperature : -10°C … 120°C
All valves provided with 2″ (50mm) operating nut.
UL Listed, FM Approved
| Name | Material |
|---|---|
| Body | Ductile Iron ASTM A536 65-45-12 |
| Wedge Disc | Ductile Iron ASTM A536 65-45-12 + EPDM |
| Disc Nut | Bronze ASTM B62 |
| Stem | Stainless Steel AISI 304 |
| Gasket | EPDM |
| Bonnet | Ductile Iron ASTM A536 65-45-12 |
| Thrust Collar | Bronze ASTM B62 |
| Gland | Ductile Iron ASTM A536 65-45-12 |
| Wrench Nut | Ductile Iron ASTM A536 65-45-12 |
| Post Plate | Ductile Iron ASTM A536 65-45-12 |

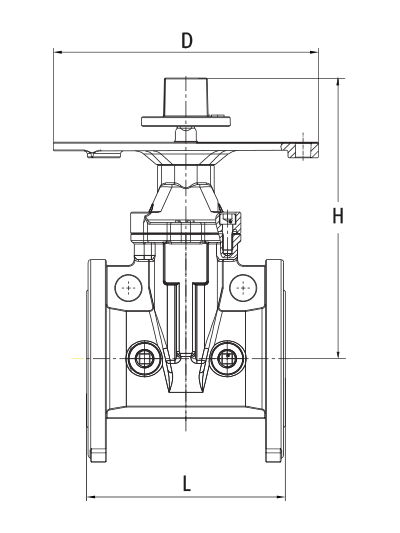

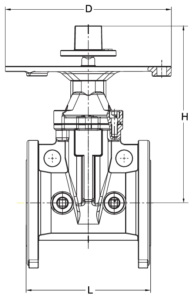

| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| L | 178 | 191 | 203 | 229 | 254 | 267 | 292 | 330 | 356 |
| H | 263 | 263 | 293 | 326 | 420 | 420 | 506 | 610 | 711 |
| D | 305 | 305 | 305 | 305 | 305 | 305 | 305 | 305 | 305 |
| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| Net Weight (Kg) | 24.00 | 25.30 | 27.50 | 35.00 | 42.00 | 50.00 | 83.00 | 123.50 | 175.50 |
| Create Qty | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 4 | 2 |
