Materials
| Name | Material | EN Specification |
|---|---|---|
| Body | Ductile Iron | EN-JS 1050 |
| Shaft | Stainless Steel | BS970 420S37 |
| Disc | DI EPDM Coated DI NBR Coated |
EN-JS 1050 EN-JS 1050 |
| Bushing | PTFE | Commercial |
| O-Ring | EPDM / NBR | Commercial |

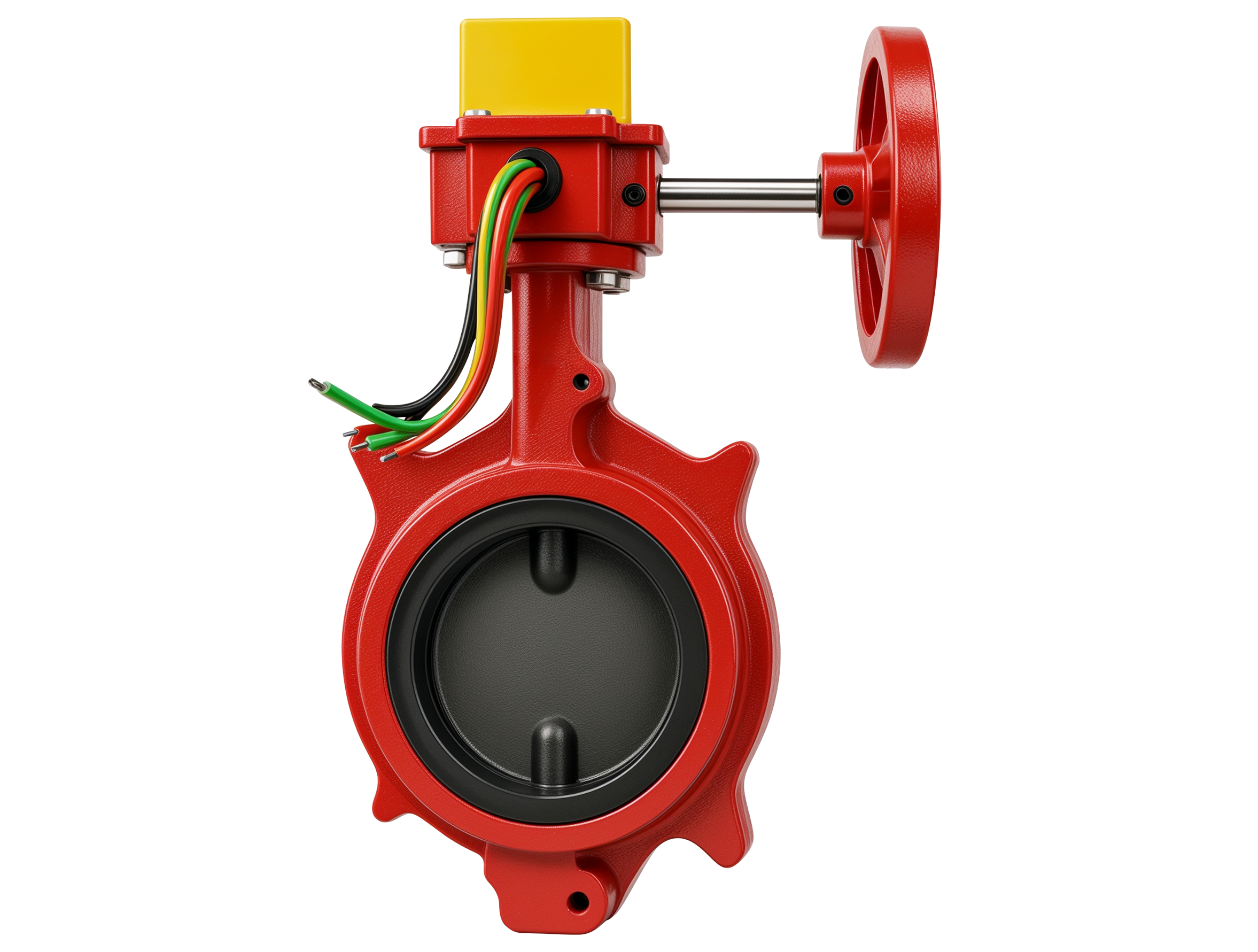

300PSI Fig No.: 1353
FEATURES & SPECIFICATIONS
Valve complies with EN593 / BS5155 / MSS SP-67.
Top flange complies with ISO5211/1.
End-to-end dimensions according to MSS SP-67-2002.
Flange drilled to BS EN 1092-2 PN16 / ANSI B16.1 Class125.
Gear operator with two internal CE approved switches.
Working pressure : 300psi.
Working temperature : -10°C … 100°C (EPDM coated disc) / -10°C … 80°C (NBR coated disc).
| Name | Material | EN Specification |
|---|---|---|
| Body | Ductile Iron | EN-JS 1050 |
| Shaft | Stainless Steel | BS970 420S37 |
| Disc | DI EPDM Coated DI NBR Coated |
EN-JS 1050 EN-JS 1050 |
| Bushing | PTFE | Commercial |
| O-Ring | EPDM / NBR | Commercial |

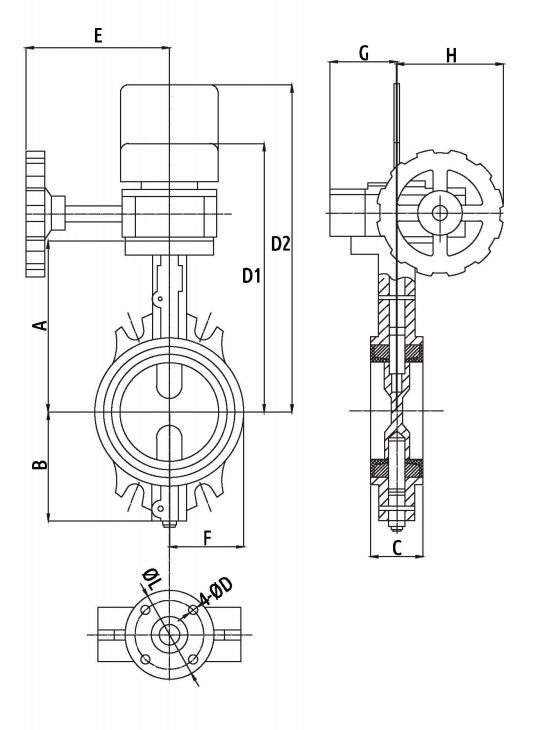

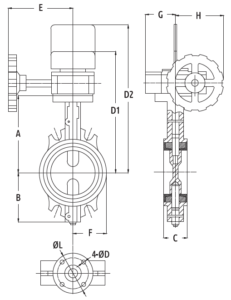

| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| A | 132.5 | 145 | 154.5 | 179 | 191.5 | 213.5 | 250.5 | 282.5 | 325.5 |
| B | 78 | 85 | 93 | 112 | 130 | 146 | 175 | 210 | 247 |
| C | 43 | 46 | 46 | 52 | 56 | 56 | 60 | 68 | 78 |
| D1 | 233.5 | 246 | 255.5 | 280 | 292.5 | 314.5 | 351.5 | 383.5 | 426.5 |
| D2 | 293.5 | 306 | 315.5 | 340 | 352.5 | 374.5 | 411.5 | 443.5 | 486.5 |
| E | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 197 | 197 |
| F | 53 | 63 | 74 | 77.5 | 93 | 107 | 134 | 162 | 185 |
| G | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 | 75 | 75 |
| H | 109 | 109 | 109 | 109 | 109 | 145 | 145 | 166 | 166 |
| L | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 102 | 102 |
| 4-ØD | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 10 | 10 |
| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| Net Weight (Kg) | 7.00 | 7.30 | 8.30 | 11.00 | 12.50 | 14.00 | 22.00 | 29.00 | 36.00 |
| Create Qty | 100 | 100 | 80 | 80 | 50 | 50 | 24 | 20 | 20 |
