3216AR-3225AR

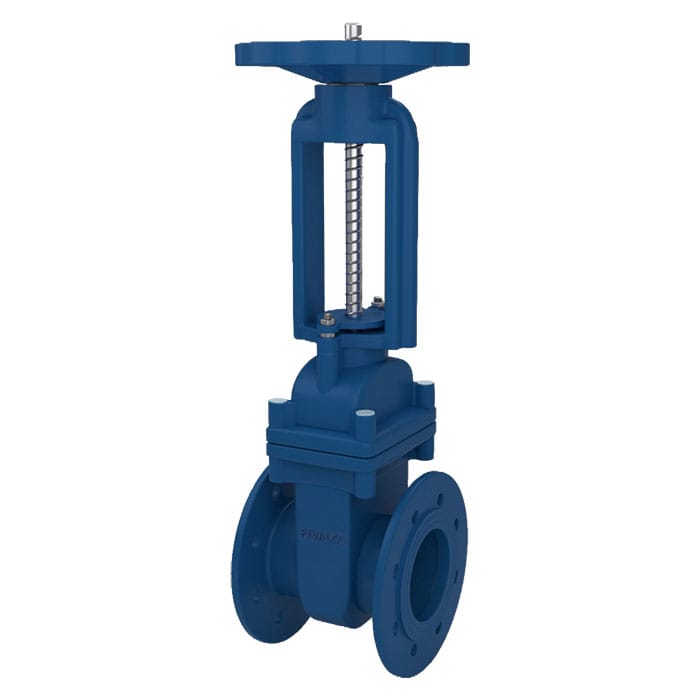

V23AR / F23AR OS&Y RESILIENT SEAT GATE VALVE (BS 5163 TYPE A)

Fig No.: V23AR16 (PN16) / F23AR25 (PN25)

FEATURES & SPECIFICATIONS

Rising stem, Outside Screw & Yoke (OS&Y).
Bolted bonnet.
Resilient seat for pipeline isolation.
Durable fusion bonded epoxy coated.
Comply with BS 5163 (Type A) / EN 1074-2 (Type A).
Flange drilled to BS 4504 PN16 / EN 1092-2 PN16 / BS 4504 PN25 / EN 1092-2 PN25 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, FireProtection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.

WRAS Approved

Categories: Iron Valves, Mechanical Service & HVAC

Description

PRESSURE & TEMPERATURE RATINGS

Working Pressure	16bar / 25bar
Shell Testing Pressure (x1.5)	24bar / 37.5bar
Seat Testing Pressure (x1.1)	17.6bar / 27.5bar
Working Temperature	-20°C … 110°C (EPDM) -10°C … 80°C (NBR)
Suitable Media	Water, Oil, Gas

Material Specification

Part	Material	Specification
Body	Ductile Iron	EN-JS 1050
Bonnet	Ductile Iron	EN-JS 1050
Disc	EPDM Coated DI	EN-JS 1050
Stem	Stainless Steel 410	EN 10088-3 1.4006
Stem Nut	Brass	EN 12165 CW614N
Gland	Ductile Iron	EN-JS 1050
O-Ring	EPDM / NBR	Commercial
Handwheel	Ductile Iron	EN-JS 1050

DIMENSIONS

DN	(mm) (inch)	50 2	65 2 1/2	80 3	100 4	125 5	150 6	200 8	250 10	300 12	350 14	400 16
	L	178	190	203	229	254	267	292	330	356	381	406
	H (PN16)	350	380	455	548	618	747	942	1144	1328	1410	1685
	D (PN16)	160	160	180	200	250	250	300	350	400	500	500
	H (PN25)	310	366	434	501	607	708	903	1096	1272	1486	1691
	D (PN25)	160	200	200	200	250	250	320	370	370	450	450
