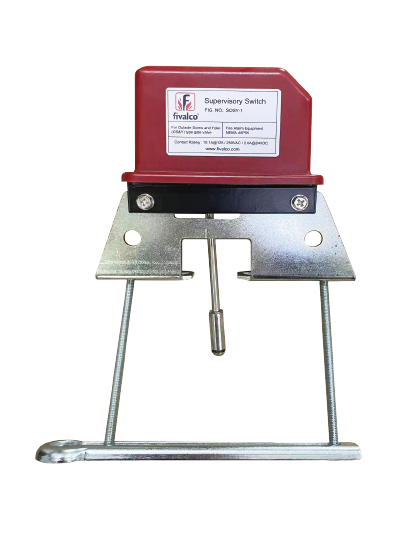

SOSY-1 Outside Screw & Yoke Valve Supervisory Switch

Fig No.: SOSY-1

FEATURES & SPECIFICATIONS

• Fine adjustment feature for fast & easy installation
• One SPDT contact model
• Contact rating : 10Amps (125/250 VAC) / 2Amps (24 VDC)
• Enclosure rating : NEMA 4 – suitable for indoor / outdoor
• Conduit opening of ½”
• Special tamper screws to prevent disassembly
• Working temperature : 0°C … 60°C
• Adjustable length trip rod
• 3 position switch monitors vandal and valve closed signals
• Cover material : ABS Plastic (Aluminium cover available upon request)
• Service use on NFPA-13, NFPA-13D, NFPA-72

FM Approved.
