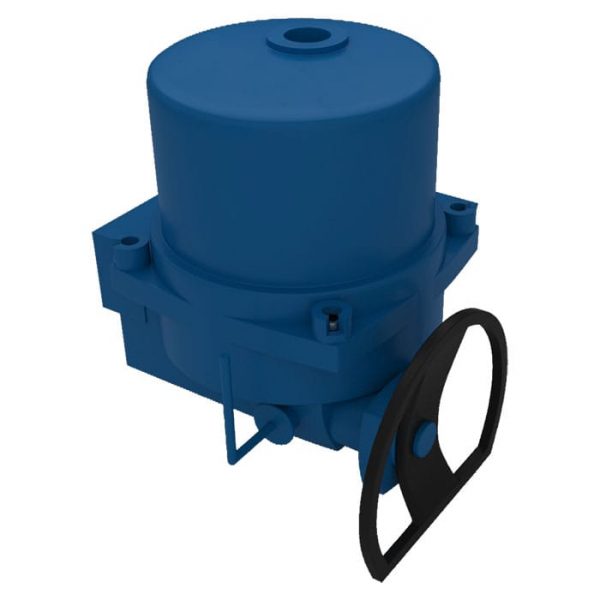

NEUMAX QT SERIES QUARTER-TURN TRANSMISSION

Fig No.: QT Series

APPLICATIONS

NEUMAX “QT” series electric actuators are designed & engineered for robust, reliable and for high performance duty onto quarter turn valves.

The unique reliable motor module, adjustable cam plate limit switch, self locking mechanism, precision gearing system and ball bearings, the auto declutching mechanism, light force load on the handwheel, the adaptor drive bushing and bottom ISO 5211 mounting dimension, are added advantages against other make in the field of valve automation. CE approved.

It is suitable for used in heating, ventilation & air-conditioning, water treatment & water-works, power generation, petrochemical plants, oil storage facilities, chemical plants, effluent treatment works, pulp & paper mills, ship building industry, etc.

Categories: Mechanical Service & HVAC, Others

Description

SPECIFICATIONS

Housing & Cover	Aluminium, Anodized
Enclosure	Watertight IP67, Nema 4 and 6
Ambient Temperature	-30°C … 70°C
Power Supply (60Hz/50Hz)	110 / 220VAC, 1 Phase 380 / 415VAC, 3 Phase
Control Power	110 / 220VAC, 1 Phase, 60/50Hz
Torque Switches	2XSPDT for QT15 and above
Limit Switches	2XSPDT 15A
Stall Protection	Build-in Thermal Protection
Travel Angle	90° ± 5°
Indicator	Continuous Position Indicator
Manual Override	HAND / AUTO Declutching Mechanism
Self Locking	Provide by means of Worm Gearing
End Stopper	External Adjustable Screws
Space Heater	20W for Anti-Condensation
Conduit Entries	Two G3/4″
Lubrication	MoS2 Lithium Base Grease
Materials	Steel, Alumimium Alloy, Aluminium Bronze
External Coating	Dry Power, Epoxy-Polyester, Munsell No. FJ-002

Note : Other power supply available upon request.

PERFORMANCE

Type	QT04	QT06	QT09	QT15	QT19	QT28	QT38	QT50	QT60	QT80	QT100	QT200	QT250
Flange ISO5211	F05/F07	F07	F07	F07/F10	F07/F10	F10/F12	F10/F12	F10/F12	F10/F12/F14	F10/F12/F14	F10/F12/F14	F16/F14	F16/F14
Max Output Torque (N*m)	40	60	90	150	190	280	380	500	600	800	1000	2000	2500
Operating Time 60/50Hz (90 Deg.)	14/17	14/17	14/17	17/20	17/20	22/26	22/26	22/26	24/29	24/29	24/29	75/90	75/90
Max Stem Dia.(mm)	14	22	22	22	22	32	32	32	42	42	42	50	50
Motor 30 min Class F(W)	10	15	25	40	40	40	60	90	120	180	200	200	200
Rated Current (mA) 1 Phase – 110V	650	1250	1500	2000	2000	2000	2700	3300	5000	5800	8000	8000	8000
Rated Current (mA) 1 Phase – 220V	300	400	550	900	900	900	1250	1600	2400	2800	3000	3000	3000
Rated Current (mA) 3 Phase – 380V	N/A	N/A	190	280	280	280	400	600	800	1200	1300	1300	1300
Rated Current (mA) 3 Phase – 415V	N/A	N/A	400	400	420	450	450	450	500	850	900	900	900
Number of Handle Turn	8.5	8.5	8.5	10	10	12.75	12.75	12.75	14.5	14.5	14.5	45	45
Weight (Kg)	6	9	10	12	13	17	18	19	22	23	25	35	35

Note : Without torque switches.

FEATURES

1. ENCLOSURE	Standard enclosure to water jet proof and water tight proof IP67, NEMA 4 & 6.
2. MOTOR	Squirrel cage motor is of encapsulated type, on high stall torque and low inherent force for seating and unseating of valves. All motors are integrated with build-in thermal protection.
3. TERMINAL CONNECTION & WIRING	Terminal connections are of “WAGO” push on type, making wiring connection very easy and without fuss. Electrical wiring circuit is standardized for single and three phare voltage. Addition termination is available on request.
4. INTERNAL COMPONENTS ARRANGMENT	Internal mechanical and electrical components are design in modular mounting arrangement, and can be easily remove for maintenance purposes. Additional optional accessories are also possible.
5. LIMIT SWITCHES	A pair limit switches are activated by means of simple, reliable and adjustable cam plates, mounted directly onto, and driven by center column. The unique cam plate design prevent over travel of limit switches.
6. TORQUE SWITCHES	Electric actuators of 100 N*m and above, are install with torque switches for over-load protection.
7. HEATER	For prevention of condensation due to weather and temperature changes, and also keeps internal components clean and dry, a 20 watt space heater is provided inside all the electric actuators.
8. SELF LOCKING MECHANISM	Self locking mechanism with improved worm gear design.
9. HANDWHEEL	Correct size of handwheel on the electric actuator ensure adequate strength for safe and efficient emergency operation.
10. MANUAL OVER-RIDE	Engage by pulling and piling the lever and turning the handwheel. Lever is auto declutch when power supply is switch on, and handwheel does not turn as extra safety feature.
11. VISUAL POSITION INDICATOR	The visual position indicator is directly mounted onto the center drive column to provide the visual position of the valve.
12. END STOPPERS	1 each for open and close position (adjustable), are for over travel protection.
13. MOUNTING & ADAPTATION	Bottom flange mounting dimension conform to ISO 5211. An adaptor drive bushing is provided for every electric actuator. It is removable and for machining to suite valve stem size.

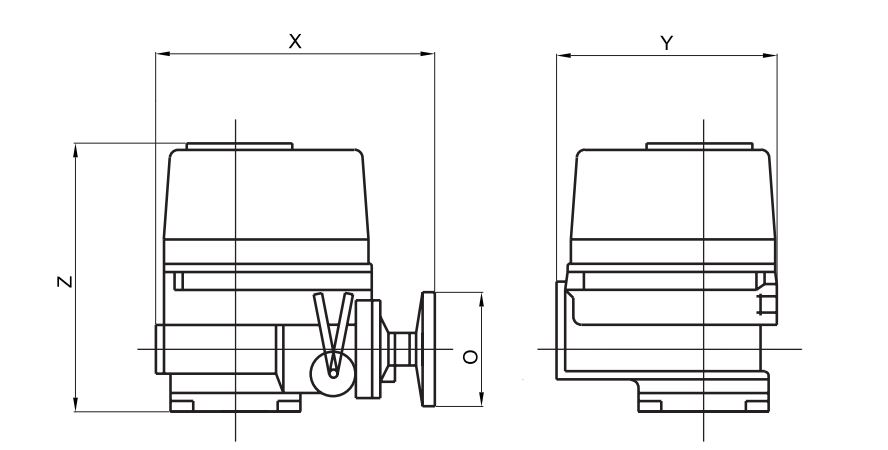

DIMENSIONS(mm)

Type	C	A	B	D (Max)	E	F	G	H	I	J	L	O	T	X	Y	Z
QT04	50	M6	10	14	40	25	5	60	133	196	102	200	75	241	208	256
QT06	70	M8	14	22	55	35	5	60	133	196	102	200	75	241	208	256
QT09	70	M8	14	22	55	35	5	60	133	196	102	200	75	241	208	256
QT15	102	M10	14	22	57	35	5	64	154	199	125	250	85	272	239	263
QT19	102	M10	14	22	57	35	5	64	154	199	125	250	85	272	239	263
QT28	102	M10	17	32	75	42	5	70	174	228	145	350	100	290	274	298
QT38	102	M10	17	32	75	42	5	70	174	228	145	350	100	290	274	298
QT50	102	M10	17	32	75	42	5	70	174	228	145	350	100	290	274	298
QT60	125	M12	19	42	85	50	5	78	191	264	175	350	115	331	306	342
QT80	125	M12	19	42	85	50	5	78	191	264	175	350	115	331	306	342
QT100	125	M12	19	42	85	50	5	78	191	264	175	350	115	331	306	342
QT200	160	M20	30	50	95	60	4	241	191	264	210	350	132	357	323	505
QT250	160	M20	30	50	95	60	4	241	191	264	210	350	132	357	323	505
