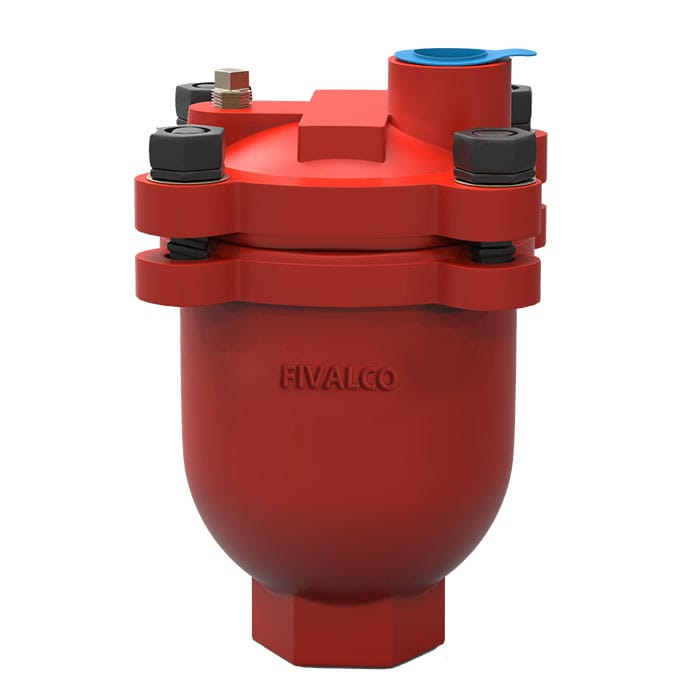

9702 Automatic Air Vent Valve Threaded End

200PSI Fig No.: 9702

FEATURES & SPECIFICATIONS

  • Working Pressure:
    200PSI
    Temperature: from -10°c to 120°c
  • Connection Ends
    NPT or BSPT

FM Approved.

Categories: Air Vent Valve, Fire Protection Products
Products
  • Mechanical Service & HVAC
    • Iron Valves
    • Water Control Valves
    • Copper Valves
    • Piping Specialities
    • Others
  • Stainless Steel Industrial Valves
  • Fire Protection Products
    • Brass Valves
    • Gate Valves
    • Butterfly Valves
    • BS Valves
    • Check Valves
    • Y-Strainers
    • Fire Hydrant
    • Air Vent Valve
    • Bronze Valves
    • Flexible Sprinkler Connector
    • Waterflow Indicator
    • Supervisory Switch
  • Description

Material Specification

Name Material
Body Ductile Iron ASTM A536 65-45-12
Cover Ductile Iron ASTM A536 65-45-12
Level Stainless Steel AISI 304
Seat Ring Stainless Steel
Float Stainless Steel AISI 304
Float Arm Stainless Steel AISI 304
Orifice Button Viton

Automatic air vent valve

  • Nickel-plated brass body.
  • EPDM joint. Poliethylene float.
  • Male thread connections ISO 228. Max.
  • Working pressure 10 bar. Max.
  • Working temp. 110ºC.

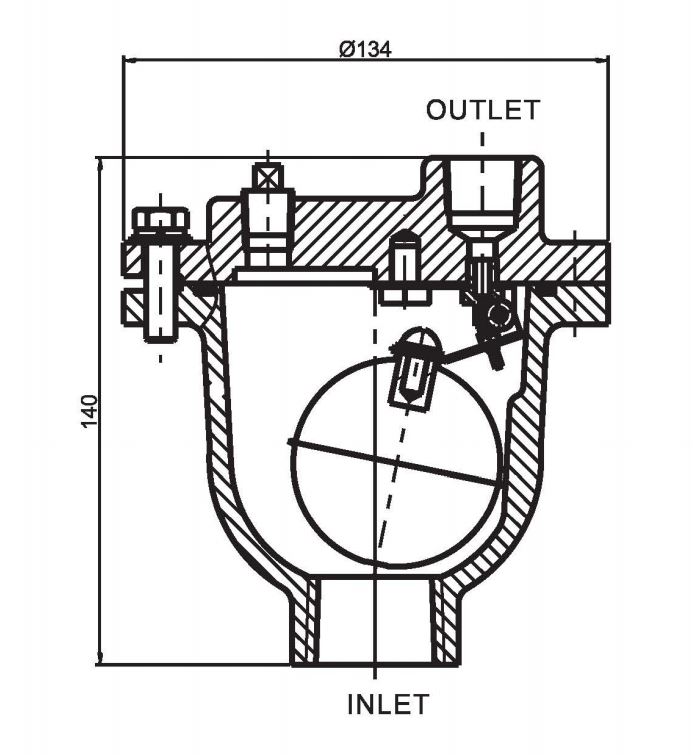

DIMENSIONS (inch)

Size Female Threaded
1/2″ 1/2″ BSPT or NPT
3/4″ 3/4″ BSPT or NPT
1″ 1″ BSPT or NPT

Net Weight (kg) & Crate qty (pcs)

Size N.W Crate Qty
1/2″-1″. 2.9 300
