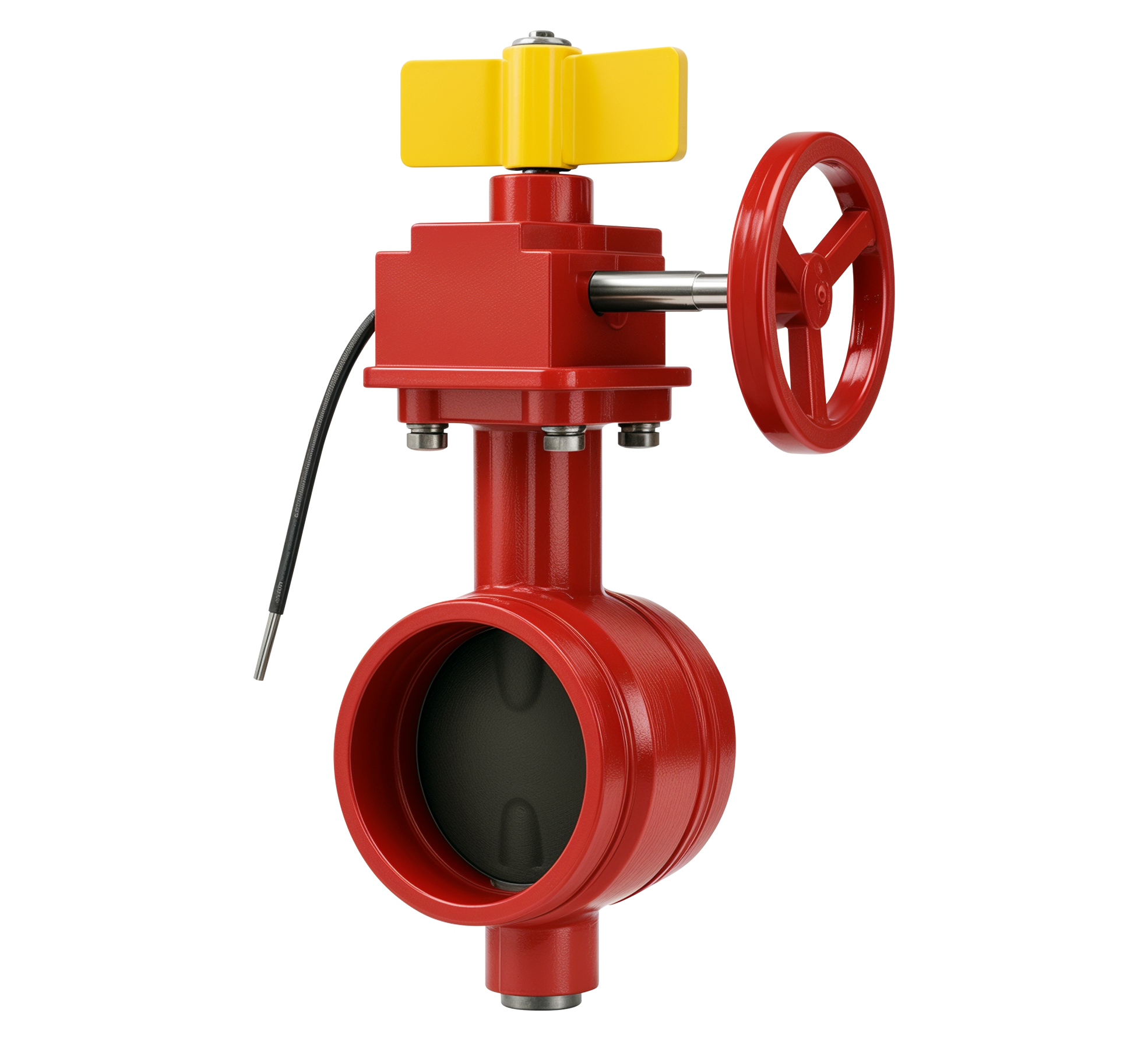

300PSI Fig No.: FPBG-300G
FEATURES & SPECIFICATIONS
Valve conforms to MSS SP-67 / BS EN 593:2009
Design and test standard conforms to FM1112 and UL1091.
Fusion bonded epoxy coated RAL3002.
Fitted with visual indicator and supervisory switch.
EPDM encapsulated disc.
Valve suitable for indoor and outdoor installation.
Grooved ends to suit AWWA or BS pipe size.
Working pressure : 300psi (Non shock Coldwater).
Max. Test pressure : 600psi.
Working temperature : -10°C … 120°C
UL Listed, FM Approved
| Name | Material |
| Body | Ductile Iron ASTM A536 65-45-12 |
| Disc | Ductile Iron ASTM A536 65-45-12 + EPDM |
| Lower Shaft | Stainless Steel SS410 |
| Upper Shaft | Stainless Steel SS410 |
| Signal Gearbox | Ductile Iron ASTM A536 65-45-12 |
| O-ring | EPDM |
| Bushing | Bronze ASTM B150M C63000 |
| Gland | Galvanized Carbon Steel Surface Passivation |
| Washer | Galvanized Carbon Steel Surface Passivation |
| Plug | Galvanized Carbon Steel Surface Passivation |
| Gear Box Fasteners | Galvanized Carbon Steel Surface Passivation |

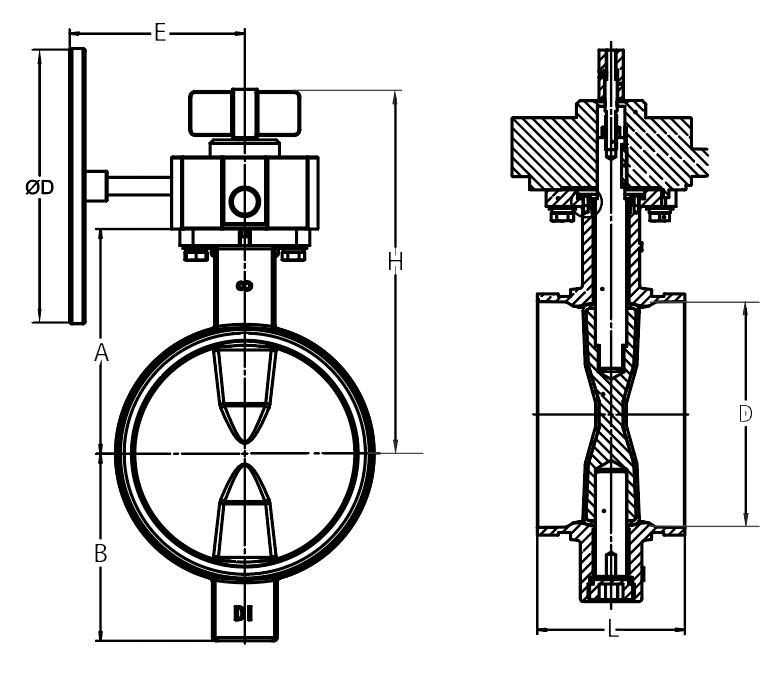

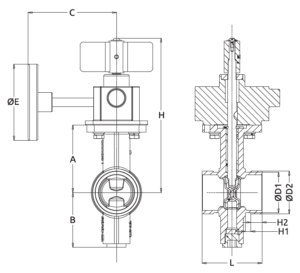

| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
|---|---|---|---|---|---|---|---|---|---|
| A | 95 | 98 | 105 | 135 | 148 | 165 | 204 | 245 | 277.5 |
| B | 77 | 80 | 87 | 108 | 132 | 144 | 173 | 208 | 261 |
| C | 110 | 110 | 110 | 110 | 133 | 133 | 187 | 187 | 187 |
| H | 217 | 216 | 227 | 256 | 275 | 292 | 339 | 380 | 426.5 |
| L | 84.5 | 98 | 98 | 116 | 149 | 147.6 | 134 | 160 | 165 |
| E | 108 | 108 | 108 | 108 | 150 | 150 | 250 | 250 | 250 |
| H1 | 7.93 | 7.93 | 7.93 | 9.53 | 9.53 | 9.53 | 11.13 | 12.7 | 12.7 |
| H2 | 15.88 | 15.88 | 15.88 | 15.88 | 15.88 | 15.88 | 19.05 | 19.05 | 19.05 |
| D1 | 57.15 | 69.09 | 84.94 | 110.08 | 137.03 | 163.96 | 214.4 | 268.28 | 318.3 |
| D2 | 60.33 | 73/76.1 | 88.9 | 114.3 | 141.3/139.7 | 168.3/165.1 | 219.1 | 273.1 | 323.9 |
| Size | 2″/DN50 | 2.5″/DN65 | 3″/DN80 | 4″/DN100 | 5″/DN125 | 6″/DN150 | 8″/DN200 | 10″/DN250 | 12″/DN300 |
| Net Weight (Kg) | 4.4 | 4.9 | 5.2 | 6.3 | 11.7 | 14 | 22.1 | 36.2 | 50.2 |
| Create Qty | 90 | 80 | 70 | 60 | 50 | 40 | 20 | 10 | 10 |
