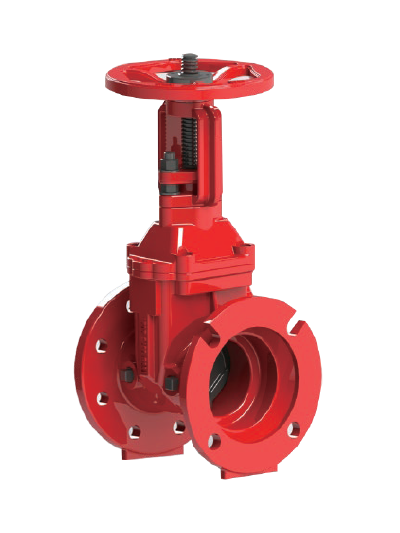

3299-365-FM OS&Y Gate Valve Flanged-Mechanical Joint Ends

365PSI Fig No.: 3299-365-FM

FEATURES & SPECIFICATIONS

Valve Standards:
Conforms to AWWA C515/BS5163
Working Pressure:
365PSI
Temperature: from -10°C to 120°C
Fusion bonded epoxy coated interior and exterior RAL3002
Flanged Ends:
ANSI B16.1 Class 125/ANSI B16.5 Class 150, EN1092-2 PN16
BS10 TableD /TableE
Mechanical Joint End to AWWA C153/A21.11
Stainless Steel Stem

FM Approved, UL & ULC Listed.

Categories: Fire Protection Products, Gate Valves

Description

Material Specification

Name	Material
Body	Ductile Iron ASTM A536 65-45-12
Wedge	Ductile Iron ASTM A536 65-45-12 +EPDM
Wedge Nut	Stainless Steel AISI 304
Stem	Stainless Steel AISl304/420
Bonnet	Ductile Iron ASTM A536 65-45-12
Gasket	EPDM
Packing	Graphite
Stem Nut	Bronze ASTM B62
Handwheel	Ductile Iron ASTM A536 65-45-12

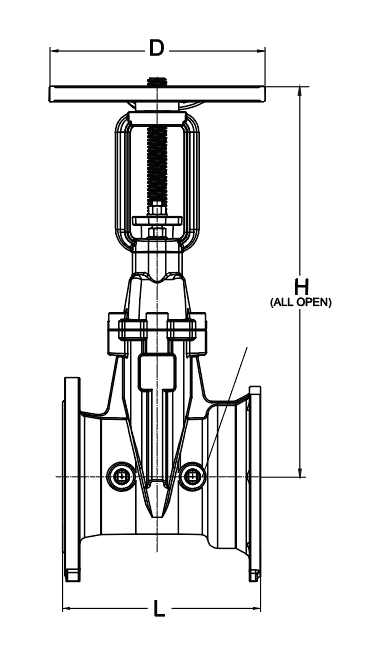

DIMENSIONS (inch/mm)

Size	3″/80	4″/100	6″/150	8″/200	10″/250	12″/300
L	8.74/222	9.51/241.5	11/279.5	12.00/305	13.88/352.50	14.45/367
H	18.19/462	20.24/514	27.91/709	33.91/922	43.94/1116	51.18/1300
D	9.96/253	9.96/253	12.05/306	13.98/355	17.52/445	17.52/445

Net Weight (kg) & Crate qty (pcs)

Size	3″/80	4″/100	6″/150	8″/200	10″/250	12″/300
N.W.	22.13	27.16	46.90	72.00	111.00	167.00
Create Qty	16	16	9	6	4	2

NOTES
1. Valve is rated at 300PSI for Fire Protection Service.
2. Design and materials are subject to change without notice.
