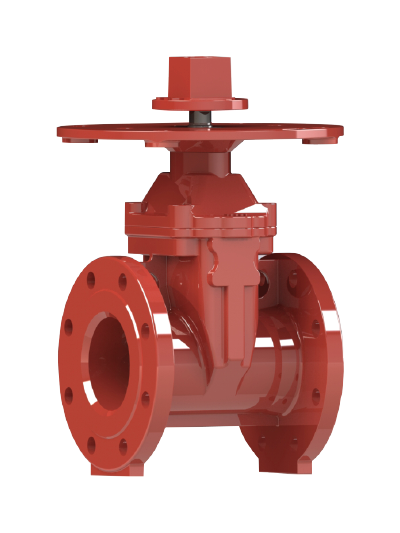

3288-365-FLA NRS Gate Valve Flanged Ends

365PSI Fig No.: 3288-365-FLA

FEATURES & SPECIFICATIONS

Non-rising stem.
Stainless steel stem.
Valve conforms to AWWA C515 / BS5163.
Fusion bonded epoxy coated interior and exterior RAL3002.
Flange drilled to ANSI B16.1 Class125 / ANSI B16.5 Class150 / EN1092-2 PN16 / BS10 Table D / Table E.
Working pressure : 365psi.
Working temperature : -10°C … 120°C.
All valves provided with 2″ (50mm) operating nut.

FM Approved, UL & ULC Listed.

Categories: Fire Protection Products, Gate Valves

Description

Material Specification

Name	Material
Body	Ductile Iron ASTM A536 65-45-12
Wedge Disc	Ductile Iron ASTM A536 65-45-12 + EPDM
Disc Nut	Bronze ASTM B62
Stem	Stainless Steel AISI 304
Gasket	EPDM
Bonnet	Ductile Iron ASTM A536 65-45-12
Thrust Collar	Bronze ASTM B62
Gland	Ductile Iron ASTM A536 65-45-12
Wrench Nut	Ductile Iron ASTM A536 65-45-12
Post Plate	Ductile Iron ASTM A536 65-45-12

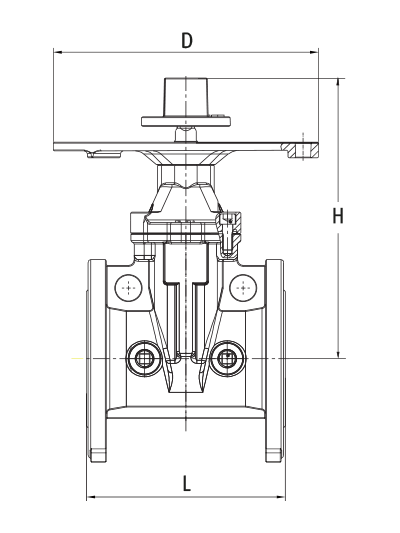

DIMENSIONS (inch/mm)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
L	7.00/178	7.5/191	8.00/203	9.00/229	10.00/254	10.50/267	11.50/292	13.00/330	14.00/356
H	10.35/263	10.35/263	11.53/293	12.83/326	16.53/420	16.53/420	19.92/506	24.01/610	27.99/711
D	12.01/305	12.01/305	12.01/305	12.01/305	12.01/305	12.01/305	12.01/305	12.01/305	12.01/305

Net Weight (kg) & Crate qty (pcs)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
N.W.	24.00	25.30	27.50	35.00	42.00	50.00	83.00	123.50	175.50
Create Qty	9	9	9	9	9	9	9	4	2

NOTES
Design and materials are subject to change without notice.
