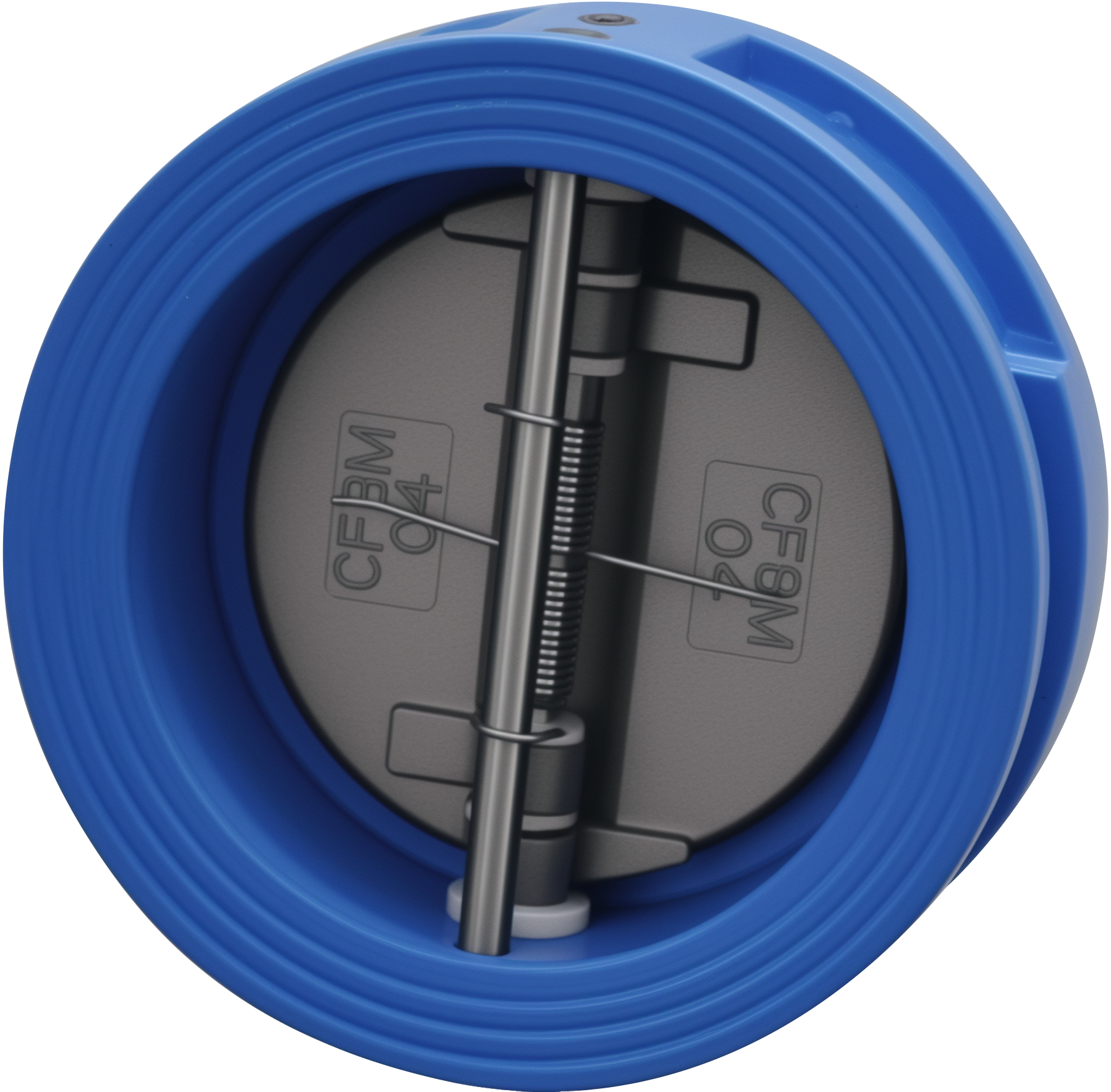

PN16/PN25 Fig No.: V51DD16/F51DD25
FEATURES & SPECIFICATIONS
Spring loaded double door.
Rubber seat for non-slam effect.
Durable fusion bonded epoxy coated.
Comply with DIN 3202-F1.
Wafer connection to BS 4504 PN16 / EN 1092-2 PN16 / BS 4504 PN25 / EN 1092-2 PN25 / ANSI Class 150 (Specify on order).
WRAS approved option available upon request.
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, General Industries.
Working pressure : 16bar/25bar.
Shell test pressure (x1.5) : 24bar/37.5bar.
Seat test pressure (x1.1) : 17.6bar/27.5bar.
Working temperature : -20°C … 110°C (EPDM) / -10°C … 80°C (NBR) / -10°C … 200°C (Viton) / -10°C … 150°C (HT-EPDM)
Suitable Media : Water.
WRAS approved.
| Part | Material |
| Body | Ductile Iron |
| Disc | Ductile Iron Stainless Steel 304 Stainless Steel 316 Aluminium Bronze |
| Sealing Ring | EPDM NBR |
| Shaft | Stainless Steel 410 |
| Screw | Carbon Steel |
| Spring | Stainless Steel 316 |
| Gasket | PTFE |
| Seat | EPDM NBR Viton HT-EPDM |
| DN | (mm) (inch) |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |
125 5 |
150 6 |
200 8 |
250 10 |
300 12 |
350 14 |
400 16 |
450 18 |
500 20 |
600 24 |
700 28 |
800 32 |

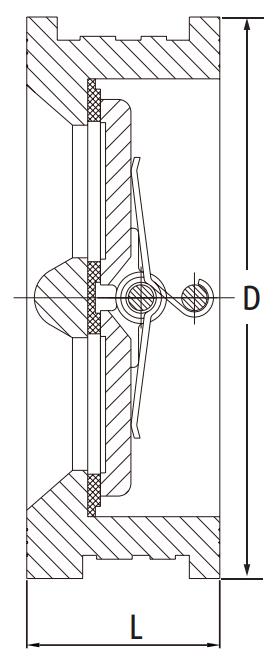

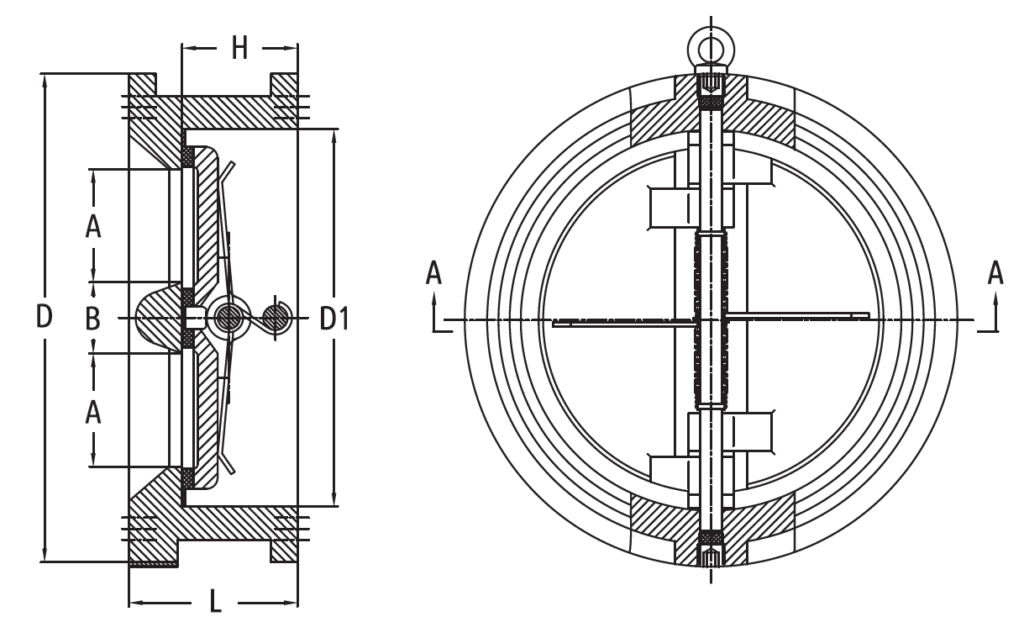

| L | 43 | 43 | 46 | 64 | 64 | 70 | 76 | 89 | 114 | 114 | 127 | 140 | 152 | 152 | 178 | 229 | 241 | |
| D (PN16) | 91 | 103 | 123 | 142 | 157 | 192 | 218 | 268 | 328 | 380 | 444 | 495 | 554 | 616 | 724 | 806 | 905 | |
| D (PN25) | – | 103 | 123 | 142 | 167 | 192 | 218 | 279 | 334 | 399 | 456 | 512 | 563 | 623 | 724 | – | – | |
| D (ANSI) | – | 103 | 123 | 129 | 167 | 192 | 218 | 279 | 334 | 409 | 448 | 512 | 547 | 604 | 724 | 824 | 925 | |
| D1 | 65 | 65 | 80 | 94 | 117 | 145 | 170 | 224 | 265 | 310 | 360 | 410 | 450 | 505 | 624 | 722 | 825 | |
| A | 12 | 12 | 21.5 | 22.5 | 32 | 43.5 | 51 | 70.5 | 90 | 108 | 125 | 148 | 161.5 | 188 | 234 | – | – | |
| B | 16 | 16 | 17 | 25 | 24 | 28 | 32 | 41 | 40 | 44 | 48 | 54 | 62 | 62 | 70 | – | – |
Note : PN25 only available for sizes DN50 … DN600.
