PRESSURE & TEMPERATURE RATINGS
| Working Pressure | 20bar WOG Non-Shock
10bar Saturated Steam |
| Shell Testing Pressure (x1.5) | 30bar Hydrostatic |
| Working Temperature | -10°C … 170°C |
| Suitable Media | Water, Oil & Gas |
| Part | Material | Specification |
|---|---|---|
| Body | Bronze | EN 1982 GC490K |
| Cap | Bronze | EN 1982 GC490K |
| Screen | Stainless Steel 304 | EN 1449 304S31 |
| Gasket | PTFE |
| DN | (mm) (inch) |
15 1/2 |
20 3/4 |
25 1 |
32 1 1/4 |
40 1 1/2 |
50 2 |
65 2 1/2 |
80 3 |
100 4 |

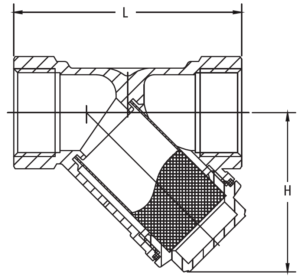

| L | 56 | 69 | 82 | 90 | 101 | 123 | 176 | 201 | 250 | |
| H | 41 | 48 | 58 | 66 | 74 | 92 | 136 | 146 | 189 |
