SMC actuators can be controlled individually or collectively. It can be operated locally or via a remote controller. In addition to the basic models, there are other models such as Explosion-proof (Explosion-proof Grade dllBT4), Integral, Integral Explosion-proof, Radiation-proof, Auto-Regulation, Two-Wire, Two-Speed Control, etc. Various actuators of different protection classes such as Water-Resistant, Marine Type, Fire-Proof are available on request. With a wide range of selection, SMC series of actuators are able to meet various requirements.
| Ambient Temperature | -20°C…55°C |
| Relative Humidity | Max. 90% |
| Sea Level Height | Max.1000m |
| Working Conditions | Without flammable, explosive, corrossive medium |
| Protection Class | IP65(IP68 for Submarine Type, To Specify When Order) |
| Power Supply | 380V, 50Hz |
| Ambient Temperature | -20°C…55°C |
| Relative Humidity | Max. 90% |
| Sea Level Height | Max.1000m |
| Working Conditions | Without flammable, explosive, corrossive medium |
| Protection Class | IP65(IP68 for Submarine Type, To Specify When Order) |
| Power Supply | 380V, 50Hz |
| Model | Output Torque (N*m) | Thrust Allowed (kN) |
Max. Stem Diameter (mm) |
Output Speed (r/min) |
Motor (kw) |
| SMC-04 | 110 | 35 | 24 | 20 35 |
0.2 0.3 |
| SMC-03 | 270 | 45 | 36 | 18 27 |
0.4 0.6 |
| SMC-00 | 500 | 90 | 50 | 24 42 |
1.1 1.5 |
| SMC-0 | 970 | 150 | 65 | 18 31 |
1.5 2.2 |
| SMC-1 | 1800 | 250 | 76 | 12 18 |
2.2 3 |
| SMC-2 | 2700 | 300 | 89 | 10 18 |
3 4 |

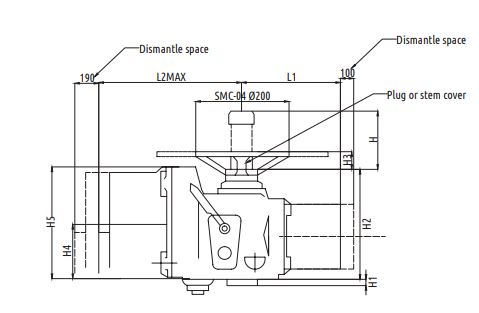

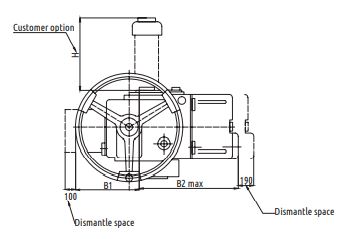

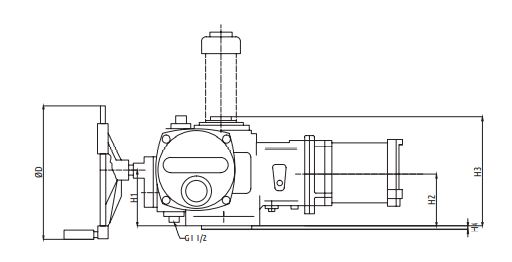

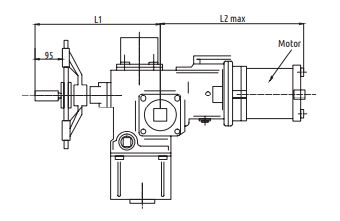

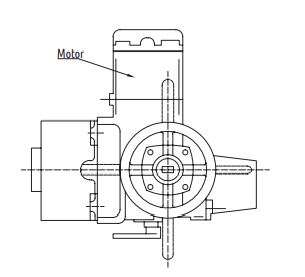

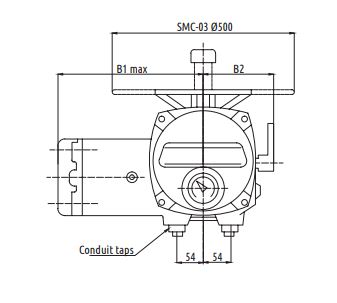

| Model | L1 | L2 | B1 | B2 | H1 | H2 | H3 | H4 | D |
| SMC-00 | 392 | 519 | 251 | 364 | 123 | 115 | 253 | 4 | 305 |
| SMC-0 | 410 | 529 | 273 | 367 | 153 | 132 | 285 | 5 | 305 |
| SMC-1 | 429 | 623 | 304 | 393 | 168 | 148 | 310 | 5 | 305 |
| SMC-2 | 457 | 697 | 333 | 418 | 184 | 158 | 358 | 5 | 458 |
