Materials
| Name | Material |
|---|---|
| Body | Brass |
| Cap | Brass |
| Screen | Stainless Steel 304 |
| Gasket | Non-Asbestos |
PN16 Fig No.: F7B16
FEATURES & SPECIFICATIONS
Y-pattern body.
Threaded cap.
Stainless steel mesh.
Threaded to EN 10226-1 (ISO 7).
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.
Working pressure : 16bar WOG Non-Shock / 8.6bar Saturated Steam.
Testing pressure (x1.5) : 24bar Hydrostatic.
Working temperature : -10°C … 170°C.
Suitable Media : Water, Oil & Gas.
| Name | Material |
|---|---|
| Body | Brass |
| Cap | Brass |
| Screen | Stainless Steel 304 |
| Gasket | Non-Asbestos |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |

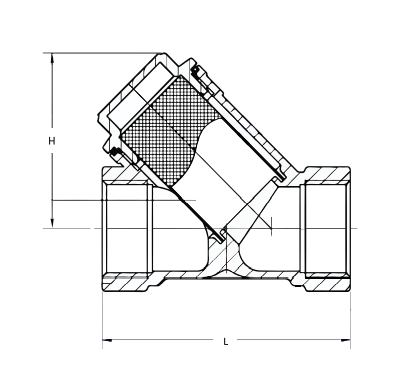

| L | 56 | 69 | 82 | 90 | 101 | 123 | 176 | 201 | 250 | |
| H | 41 | 48 | 58 | 66 | 74 | 92 | 136 | 146 | 189 |
