Materials
| Name | Material |
|---|---|
| Body | Bronze |
| Ball | Chrome Plated Brass |
| Stem | Brass |
| Seat | PTFE |
| Seat Retainer | Bronze |
| Packing | PTFE |
| Gland Nut | Brass |
| Lever | PVC Covered Mild Steel |

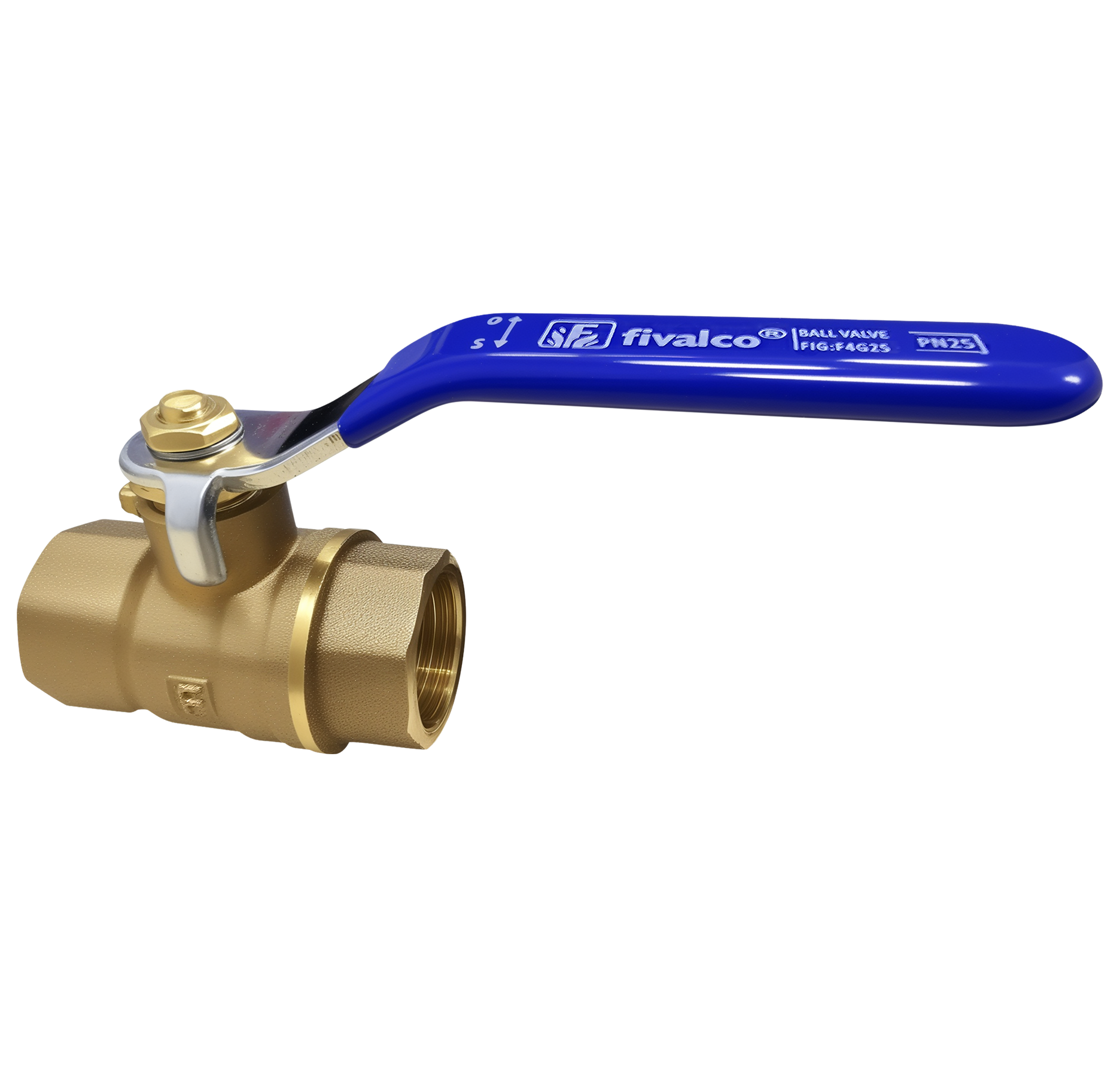

PN25 Fig No.: F4G25
FEATURES & SPECIFICATIONS
Full bore design.
Quarter turn opening.
Bubble tight close-off.
Blow-out proof stem.
Threaded to EN 10226-1 (ISO 7).
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.
Working pressure : 25bar WOG Non-Shock / 10bar Saturated Steam.
Shell test pressure (x1.5) : 37.5bar Hydrostatic.
Seat test pressure (x1.1) : 27.5bar Hydrostatic / 5.5bar Air.
Working temperature : -10°C … 170°C.
Suitable Media : Water, Oil & Gas.
WRAS approved
| Name | Material |
|---|---|
| Body | Bronze |
| Ball | Chrome Plated Brass |
| Stem | Brass |
| Seat | PTFE |
| Seat Retainer | Bronze |
| Packing | PTFE |
| Gland Nut | Brass |
| Lever | PVC Covered Mild Steel |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |

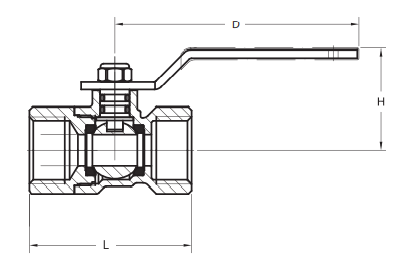

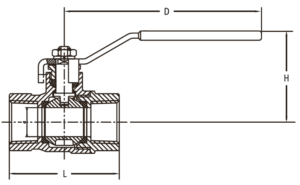

| L | 54 | 61 | 71 | 85 | 92 | 114 | 134 | 152 | 182 | |
| H | 50 | 53 | 57 | 67 | 72 | 82 | 118 | 132 | 150 | |
| D | 95 | 110 | 110 | 137 | 137 | 160 | 220 | 270 | 280 |
