F23BS NRS RESILIENT SEAT GATE SLUICE VALVE (BS 5163 TYPE B)

F23BS NRS RESILIENT SEAT GATE SLUICE VALVE (BS 5163 TYPE B)

Fig No.: F23BS16 (PN16)

FEATURES & SPECIFICATIONS

Non-rising stem.
Inside screw.
Bolted bonnet.
Resilient seat for pipeline isolation.
Painted body.
Comply with BS 5163 (Type B) / EN 1074-2 (Type B).
Flange drilled to BS 4504 PN16 / EN 1092-2 PN16 / ANSI Class 150 (Specify on order).
Applicable for Building Services, Air-Conditioning, FireProtection, Cold Water Plumbing, Hot Water System, Sewerage & Water-Treatment, General Industries.

Categories Iron Valves, Mechanical Service & HVAC

PRESSURE & TEMPERATURE RATINGS

Working Pressure	16bar
Shell Testing Pressure (x1.5)	24bar
Seat Testing Pressure (x1.1)	17.6bar
Working Temperature	-20°C … 110°C (EPDM) -10°C … 80°C (NBR)
Suitable Media	Water, Oil, Gas

Material Specification

Part	Material	Specification
Body	Ductile Iron	EN-JS 1050
Bonnet	Ductile Iron	EN-JS 1050
Disc	EPDM Coated DI	EN-JS 1050
Stem	Stainless Steel 431	EN 10088-3 1.4057
Stem Nut	Aluminium Bronze	EN 1982 CC491K
Gland	Ductile Iron	EN-JS 1050
O-Ring	EPDM/ NBR	Commercial

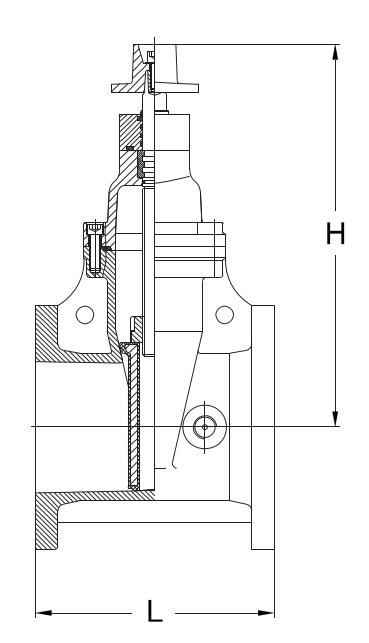

DIMENSIONS

DN

(mm)

(inch)

50

2

65

2 1/2

80

3

100

4

125

5

150

6

200

8

250

10

300

12

L

178

190

203

229

254

267

292

330

356

H

268

292

317

355

412

452

529

623

712
