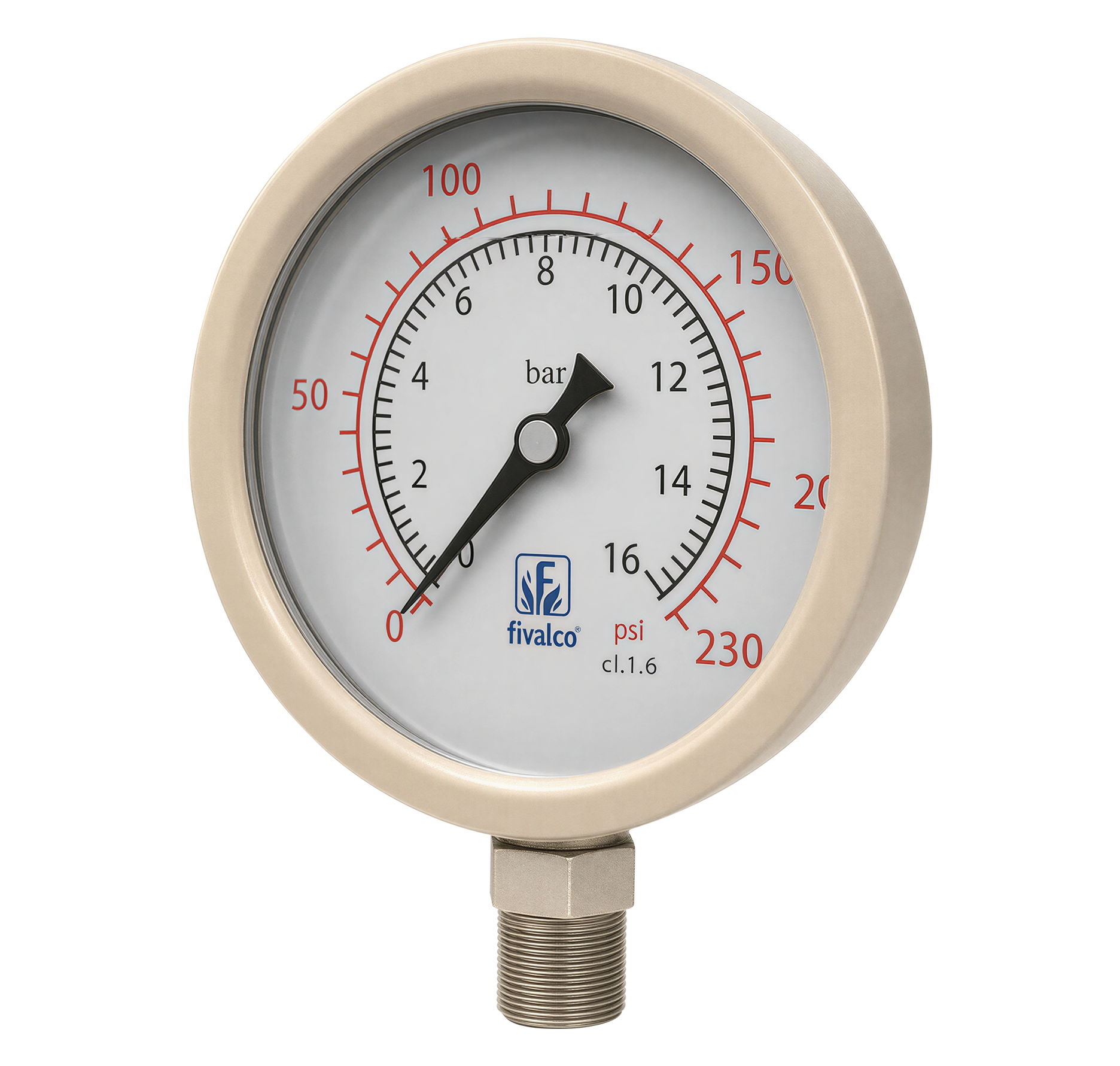

FP31 / FP32 STAINLESS STEEL PRESSURE GAUGE

FP31 / FP32 STAINLESS STEEL PRESSURE GAUGE

Fig No.: FP31 / FP32

FEATURES & SPECIFICATIONS

Stainless steel casing and bezel
Dual scale pressure units reading
Able to withstand an aggressive environment and medium
Glycerin filled for system or equipment with excessive pulsating pressure, shock and vibration.
Applicable for Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, General Industries.

Categories Mechanical Service & HVAC, Piping Specialities

Specifications
PRODUCT IDENTIFICATION CODE

Specifications

	FP31	FP32
Dial Size	2½”(65mm) / 4″(100mm)	2½”(65mm) / 4″(100mm)
Case	Stainless Steel 304	Stainless Steel 304
Bezel	Stainless Steel 304	Stainless Steel 304
Socket	Brass	Stainless Steel 316
Connection	BSPT 1/4″ for 2½”Dial	BSPT 1/4″ for 2½”Dial
Connection	BSPT 3/8″ for 4″Dial	BSPT 1/2″ for 4″Dial
Lens	Polycarbonate	Polycarbonate
Pointer	Aluminium, Black	Aluminium, Black
Scale Unit	Dual Scale in bar &psi	Dual Scale in bar &psi
Bourdon Tube	Phosphor Bronze	Stainless Steel 316
Movement	Brass	Stainless Steel 304
Working Pressure	Maximum 75% of Full Scale Value	Maximum 75% of Full Scale Value
Process Temperature	0°C … 60°C	0°C … 100°C
Accuracy	+/-1.6% of Full Scale Value	+/-1.6% of Full Scale Value
Protection	IP 65	IP 65
Filling Liquid	Glycerin	Glycerin

PRODUCT IDENTIFICATION CODE

		FP31	–	100	x	10	.	0/16
Type/Model	Stainless Steel Casing and Brass Socket	FP31
Type/Model	Stainless Steel Casing and Socket	FP32
Dial	65mm (2½”)			065
Dial	100mm (4″)			100
Connection	6mm (1/4″)					06
	10mm (3/8″)					10
	15mm (1/2″)					15
Pressure Range	-760mmHg…4bar ; -30inHg…60psi							C/04
	0…7bar ; 0…100psi							0/07
	0…10bar ; 0…150psi							0/10
	0…16bar ; 0…230psi							0/16
	0…20bar ; 0…300psi							0/20
	0…30bar ; 0…430psi							0/30
