Materials
| Name | Material |
|---|---|
| Body | Bronze |
| Bonnet | Bronze |
| Disc | Bronze |
| Stem | Brass Rod |
| Packing | PTFE |
| Packing Nut | Brass Rod |
| Gland | Brass Rod |
| Handwheel | Aluminium (DN15 … DN50) Cast Iron (DN65 … DN100) |
| Gasket | Non-Asbestos |

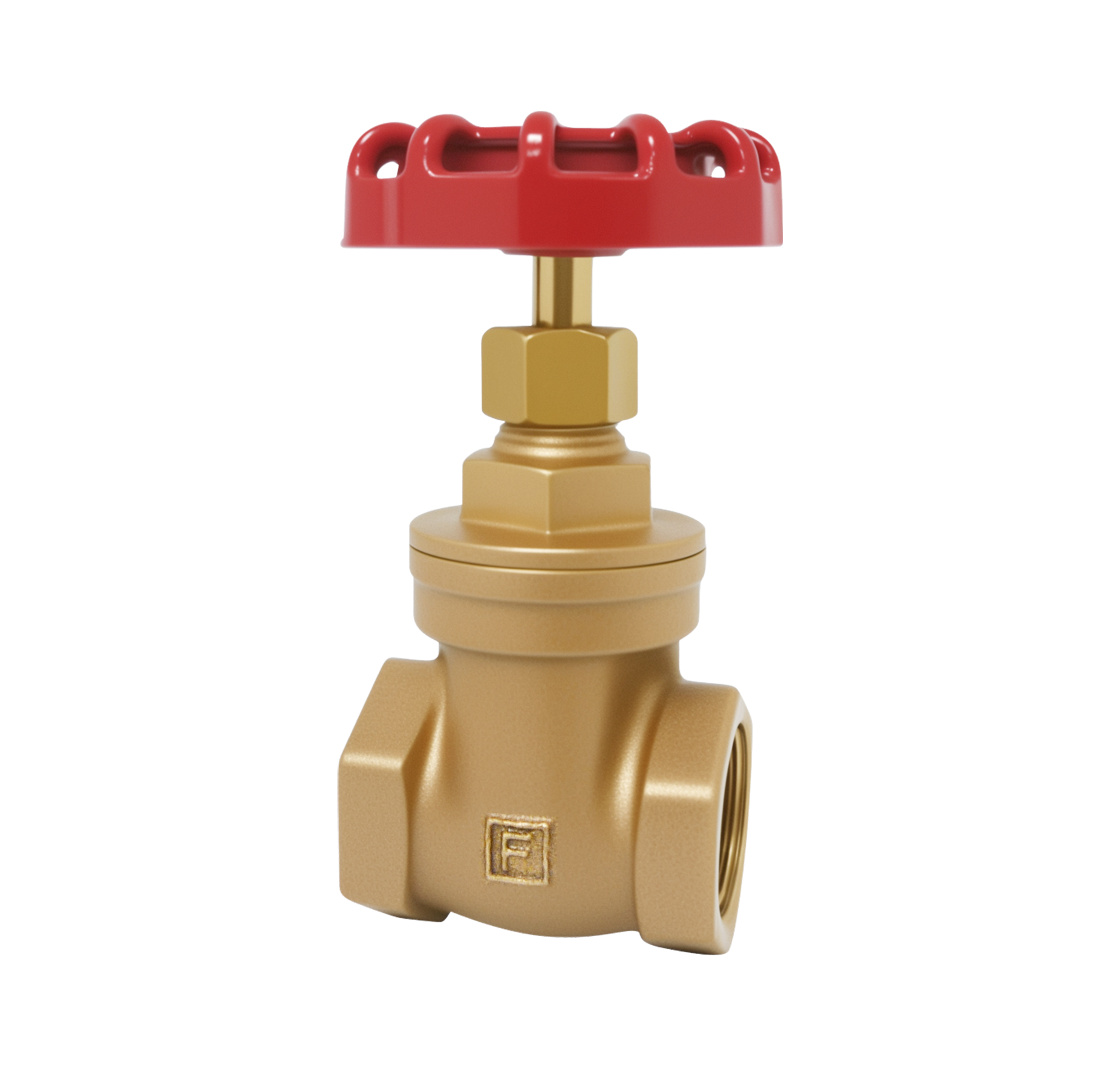

PN20 Fig No.: F2G20
FEATURES & SPECIFICATIONS
Threaded bonnet.
Solid wedge disc.
Non-rising stem.
Integral seat.
Threaded to EN 10226-1 (ISO 7).
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.
Working pressure : 20bar WOG Non-Shock / 10bar Saturated Steam.
Shell test pressure (x1.5) : 30bar Hydrostatic.
Seat test pressure (x1.1) : 22bar Hydrostatic / 5.5bar Air.
Working temperature : -10°C … 170°C.
Suitable Media : Water, Oil & Gas.
WRAS approved
| Name | Material |
|---|---|
| Body | Bronze |
| Bonnet | Bronze |
| Disc | Bronze |
| Stem | Brass Rod |
| Packing | PTFE |
| Packing Nut | Brass Rod |
| Gland | Brass Rod |
| Handwheel | Aluminium (DN15 … DN50) Cast Iron (DN65 … DN100) |
| Gasket | Non-Asbestos |
| DN | (mm) (inch) |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |
65 2½ |
80 3 |
100 4 |

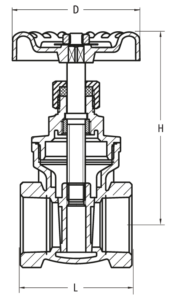

| L | 43 | 49 | 54 | 62 | 65 | 75 | 88 | 106 | 125 | |
| H | 77 | 90 | 103 | 115 | 129 | 151 | 189 | 212 | 262 | |
| D | 50 | 56 | 63 | 70 | 80 | 92 | 96 | 127 | 148 |
