Materials
| Name | Material |
|---|---|
| Body | Brass |
| Ball | Chrome Plated Brass |
| Stem | Brass |
| Seat | PTFE |
| Seat Retainer | Brass |
| Packing | PTFE |
| Gland Nut | Brass |
| Lever Nut | Stainless Steel |
| Lever | PVC Covered Mild Steel |

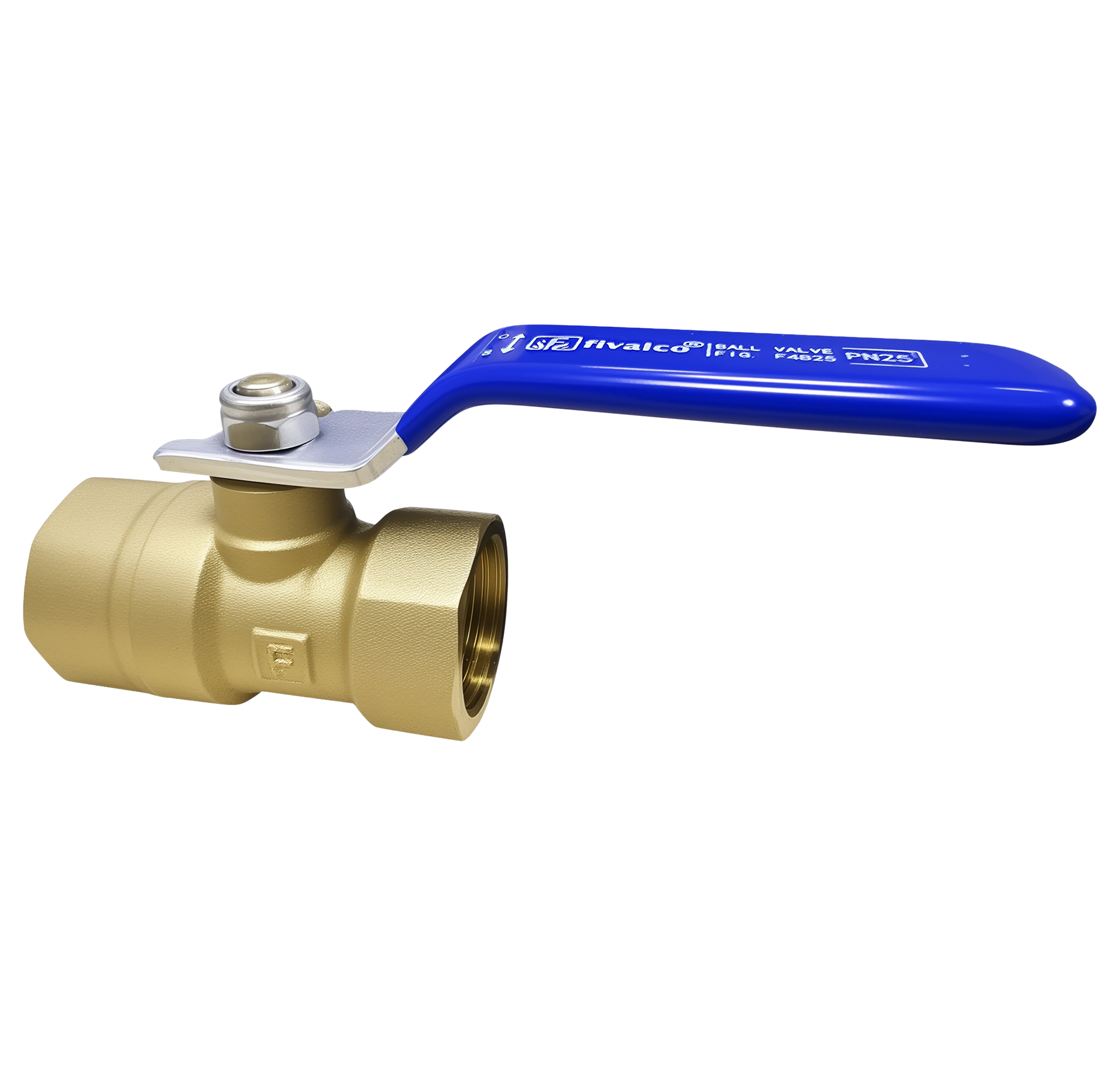

PN25 Fig No.: F4B25
FEATURES & SPECIFICATIONS
Quarter turn opening.
Bubble tight close-off.
Blow-out proof stem.
Threaded to EN 10226-1 (ISO 7).
Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries.
Working pressure : 25bar WOG Non-Shock / 10bar Saturated Steam.
Shell test pressure (x1.5) : 37.5bar Hydrostatic.
Seat test pressure (x1.1) : 27.5bar Hydrostatic / 5.5bar Air.
Working temperature : -10°C … 170°C.
Suitable Media : Water, Oil & Gas.
| Name | Material |
|---|---|
| Body | Brass |
| Ball | Chrome Plated Brass |
| Stem | Brass |
| Seat | PTFE |
| Seat Retainer | Brass |
| Packing | PTFE |
| Gland Nut | Brass |
| Lever Nut | Stainless Steel |
| Lever | PVC Covered Mild Steel |
| DN | (mm) (inch) |
10 ⅜ |
15 ½ |
20 ¾ |
25 1 |
32 1¼ |
40 1½ |
50 2 |

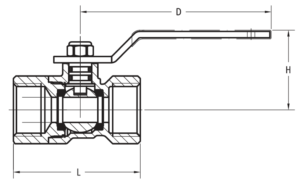

| L | 46 | 50.5 | 59.5 | 67 | 78 | 88 | 99 | |
| H | 33 | 33 | 40 | 44 | 58 | 63 | 76 | |
| D | 76 | 76 | 94 | 94 | 120 | 120 | 152 |
